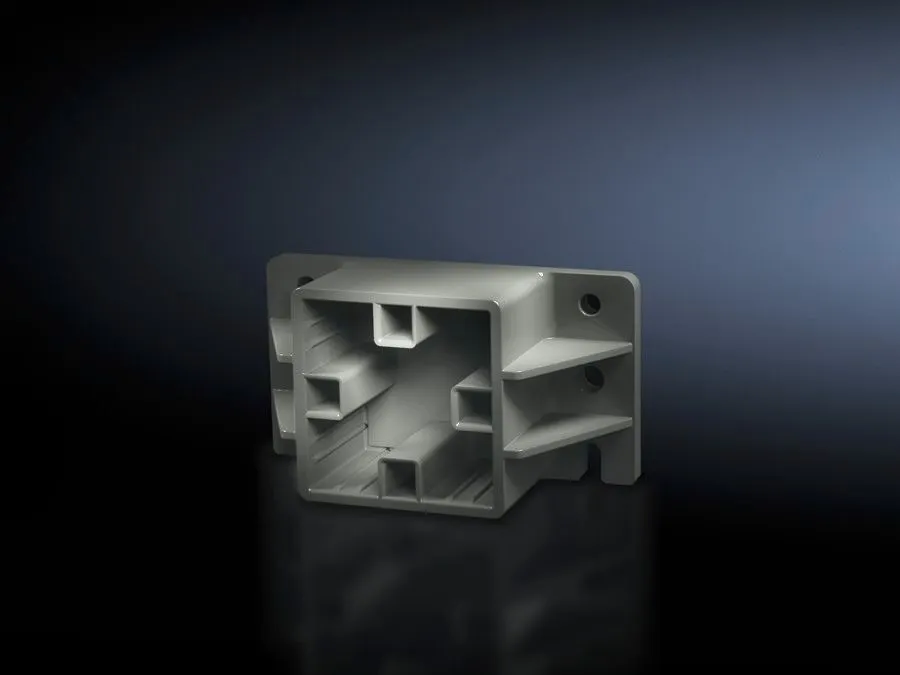

Rittal SV 9659.010 End support - Maxi-PLS 3200 UL 94-V0
Part Number: 9659010
Manufacturer
Rittal
Part number
9659010
Category
Alt Part Number
SV 9659.010
Quick Summary
The Rittal SV 9659.010 End support securely mounts Maxi-PLS busbars on cabinet sides, enabling clean and reliable cable routing in control panels. Engineers often wrestle with misalignment and time-consuming installation when attaching busbars without a purpose-built end support. The part uses polyamide with UL 94‑V0 fire protection and aligns with ETIM EC001166 and ECLASS 27400607 standards for dependable cataloging and procurement. With a 2‑pack design and color guidance near to RAL 9011, it helps reduce stock variety and shorten assembly times. This compact end support complements Maxi-PLS 60 compatibility, delivering a cost-efficient busbar mounting accessory for industrial panel builders.
Product Information
Extended Description
9659010 Rittal: SV End support, Maxi-PLS 3200
Article number
SV 9659.010
Product description
For attaching Maxi-PLS busbars when used as a cable connection system. The stepped configuration ensures simple cable installation.
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Similar to RAL 9011
Supply includes
Assembly parts
To fit busbars
Maxi-PLS 60
Packs of
2 pc(s).
Weight/pack
0.42 kg
Customs tariff number
85469010
EAN
4028177400870
ETIM 7.0
EC001166
ECLASS 8.0
27400607
Product description
SV End support, Maxi-PLS 3200
Feature: Insertion into the supports provides quick alignment and secure seating for Maxi-PLS busbars. Business Impact: reduces installation time and human error during panel assembly. Application: ideal for control panels and cabinets where Maxi-PLS 60 busbars run along the sides. Feature: Polyamide with UL 94‑V0 fire protection delivers fire-safe, durable performance in electrical environments. Business Impact: improves safety and long-term reliability in harsh or heat-prone manufacturing settings. Application: suitable for enclosed control panels and cable connection systems. Feature: Supply comes as a 2-pack with assembly parts, and each pack weighs 0.42 kg. Business Impact: simplifies inventory planning and accelerates kit-based installations. Application: supports rapid deployment on multiple production lines. Feature: Maxi-PLS 60 compatibility ensures a precise fit with the Maxi-PLS family. Business Impact: minimizes rework and compatibility issues across module configurations. Application: essential for panel builders standardizing busbar attachments. Feature: Color guidance similar to RAL 9011 provides visual consistency with enclosure aesthetics. Business Impact: reduces misfit risk and supports professional panel appearance. Application: especially beneficial for multi-brand or mixed-material control cabinets.
Get a Quick Quote for a Rittal 9659010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9659010?
Enquire Now
FAQs
Install by inserting the SV 9659.010 End support into the enclosure side supports, then seat the Maxi-PLS 60 busbars from the cable connection system. The package is a 2-pack and includes assembly parts to simplify mounting. The stepped design aids quick alignment and reduces risk of misfit during installation.
SV 9659.010 is designed to support Maxi-PLS 60 busbars and is specified for Maxi-PLS 3200 configurations. Its polyamide body and precise fit ensure reliable seating and consistent electrical pathways, making it a dependable cabinet-side end support for Maxi-PLS systems.
Yes. The end support uses polyamide with UL 94-V0 fire protection, indicating high resistance to flame and contributing to safer electrical installations. This certification, along with ETIM EC001166 and ECLASS 27400607 alignment, supports consistent procurement, cataloging, and regulatory compliance in panel builds.
The supply includes assembly parts and is sold in packs of two. Each pack weighs 0.42 kg, providing a compact, standardized quantity for typical panel builds and simplifying stocking for dedicated Maxi-PLS busbar installations.
Typical use is attaching Maxi-PLS busbars to enclosure sides in control panels and cable connection systems. Benefits include faster assembly, improved busbar alignment, safer fire-rated components, and simplified inventory with a two-pack, color-matched solution that supports Maxi-PLS 60 compatibility.
