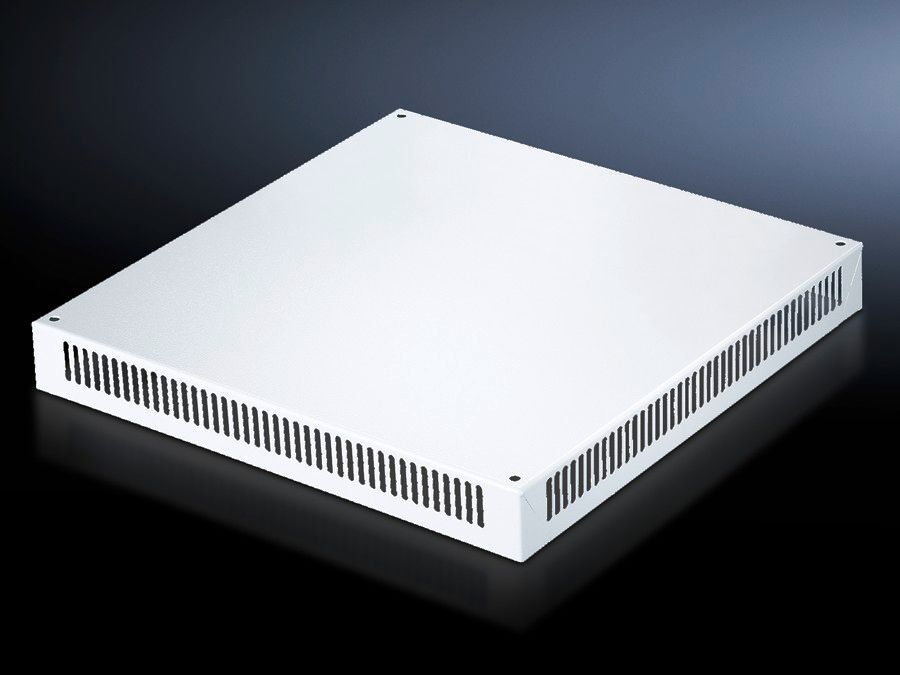

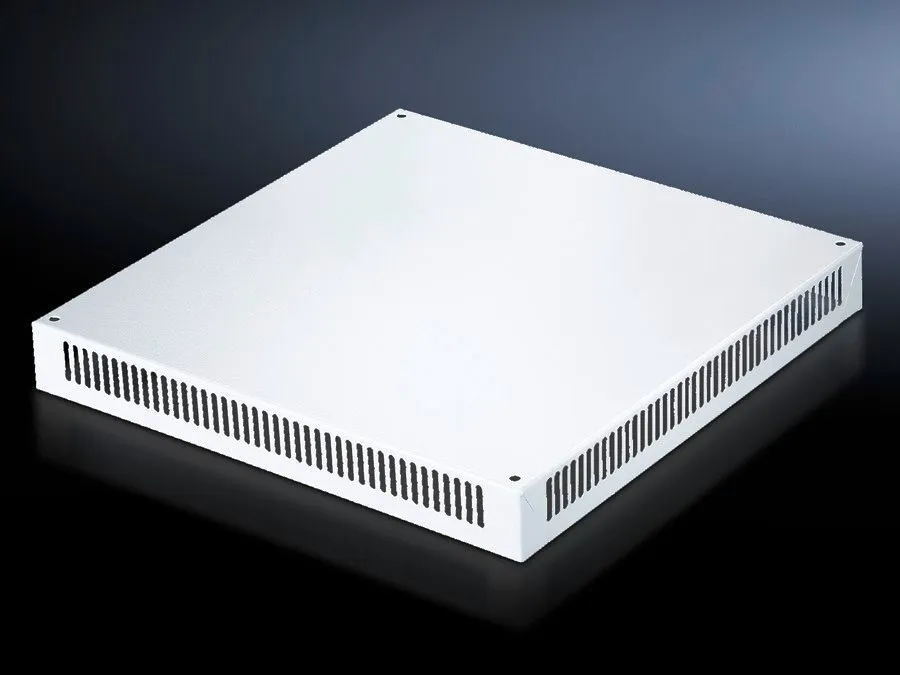

Rittal 9659535 SV Roof plate for TS - IP 2X & 800x800
Part Number: 9659535
Quick Summary
SV Roof plate is a replacement roof panel for TS enclosures, delivering ventilation and a clean, secure top cover. When roofs are missing or you need to swap to a standard roof across TS enclosures, downtime and fitment risk production holds. This part provides IP 2X protection, CE conformity, and aligns with ETIM EC002525 and ECLASS 27182405 standards, simplifying global procurement. Built for 800x800 mm footprints with a 72 mm build-up height, it supports efficient climate control, quick installation, and consistent aesthetics across your automation installations.
Product Information
Extended Description
9659535 Rittal: SV Roof plate, WD: 800x800 mm, IP 2X, for TS, H: 72 mm, with ventilation hole
Article number
SV 9659.535
Applications
For enclosures without roof plate and in exchange for the standard roof in other TS enclosures.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Build-up height
72 mm
To fit
Width:Â = 800 mm | Depth:Â = 800 mm
Packs of
1 pc(s).
Weight/pack
5 kg
Customs tariff number
73269098
EAN
4028177465114
ETIM 9
EC002525
ECLASS 8.0
27182405
Product description
SV Roof plate, WD: 800x800 mm, IP 2X, for TS, H: 72 mm, with ventilation hole
The SV Roof plate offers a ventilated top surface that improves enclosure thermal management, reducing cooling demand and helping protect sensitive components in busy manufacturing environments. This translates to longer component life and fewer unscheduled shutdowns in harsh industrial settings, particularly where ambient temperatures fluctuate. Crafted from 1.5 mm sheet steel with a textured paint finish in RAL 7035, it delivers durable protection against dust and corrosion while maintaining a professional, uniform appearance across multiple enclosures. The 800x800 mm footprint and 72 mm build-up height ensure a precise, drop-in fit for TS enclosures, with assembly parts included to streamline installation and minimize on-site time. Its IP 2X rating and CE/ETIM/ECLASS alignment simplify compliance and procurement, reducing total cost of ownership over the enclosure lifecycle. This roof plate is an economical way to standardize rooftops across a plant, improving maintenance planning and stocking strategy while preserving enclosure integrity and aesthetics.
Get a Quick Quote for a Rittal 9659535
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9659535?
Enquire Now
FAQs
Yes. The SV Roof plate is designed for TS enclosures with an 800x800 mm footprint and a 72 mm build-up height. It includes the necessary assembly parts for straightforward mounting and is intended to replace missing roofs or swap roofs between TS variants, minimizing field downtime.
Key specs include a 800x800 mm footprint, 72 mm build-up height, 1.5 mm sheet steel construction, textured paint finish in RAL 7035, and IP 2X protection. Each pack weighs 5 kg and includes assembly parts for simple installation, with EAN 4028177465114 and customs tariff 73269098 on record.
Yes. It is explicitly intended for enclosures without a roof plate or when exchanging for the standard TS roof, enabling rapid on-site replacement and preserving enclosure protection and appearance during the retrofit.
The product complies with CE requirements and aligns with ETIM 9 EC002525 and ECLASS 8.0 27182405 classifications, ensuring compatibility with European sourcing and procurement workflows. The IP 2X rating provides ingress protection suitable for industrial environments.
Replacing a missing or mismatched roof plate with the SV Roof plate reduces downtime, accelerates maintenance, and simplifies stocking by standardizing roof components across TS enclosures. The durable 1.5 mm steel and RAL 7035 finish maintain enclosure integrity and appearance, supporting long-term cost savings.
