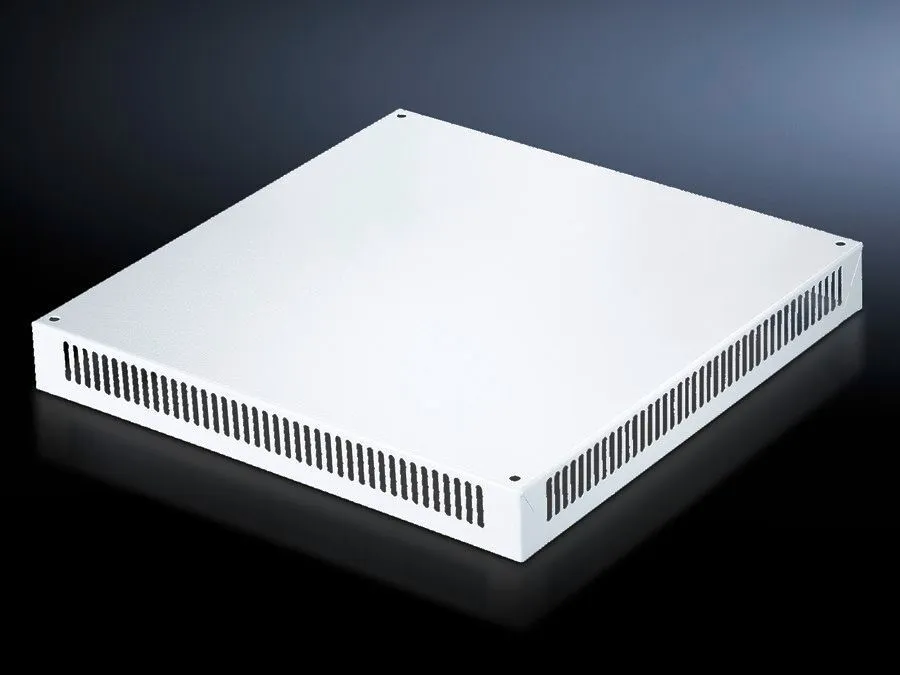

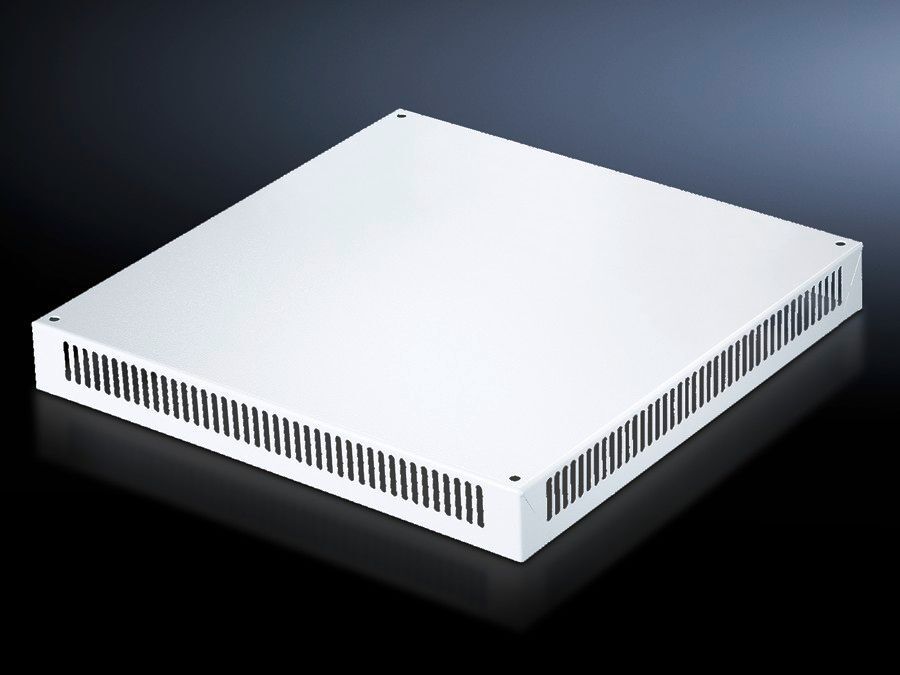

Rittal SV 9659.555 Roof Plate for TS Enclosures - IP 2X
Part Number: 9659555
Quick Summary
Rittal SV 9659.555 Roof Plate for TS enclosures adds a ventilated top cover for retrofit installations. When replacing roofs or updating modular TS enclosures, this plate eliminates complex fabrication and speeds up retrofits. Key specifications include IP 2X ingress protection, a 1200x800 mm footprint, and a 72 mm build-up height, aligning with standard TS dimensions. Together with the textured finish in RAL 7035 and assembly parts, it delivers reliable protection with minimal downtime. This combination translates to tangible business value by reducing installation time, ensuring consistent enclosure protection, and supporting scalable automation in control panels and electrical cabinets.
Product Information
Extended Description
9659555 Rittal: SV Roof plate, WD: 1200x800 mm, IP 2X, for TS, H: 72 mm, with ventilation hole
Article number
SV 9659.555
Applications
For enclosures without roof plate and in exchange for the standard roof in other TS enclosures.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Build-up height
72 mm
To fit
Width:Â = 1,200 mm | Depth:Â = 800 mm
Packs of
1 pc(s).
Weight/pack
15.01 kg
Customs tariff number
73269098
EAN
4028177465138
ETIM 9
EC002525
ECLASS 8.0
27182405
Product description
SV Roof plate, WD: 1200x800 mm, IP 2X, for TS, H: 72 mm, with ventilation hole
Feature compatibility with TS enclosures lacking a roof plate enables rapid retrofit projects. This reduces field fabrication time and minimizes downtime during enclosure upgrades. Applications include control cabinets in production lines where uptime is critical. Feature material and finish: sheet steel, 1.5 mm, textured paint in RAL 7035. Business impact: durable, corrosion resistant surfaces that survive factory floors. Application: external roofs exposed to dust and moisture in automation environments. Feature dimensional fit: 1200x800 mm footprint with 72 mm build-up height ensures a precise fit with standard TS sizes. Business impact: avoids compatibility issues and simplifies procurement. Application: replacement roofs and new installations in modular enclosures. Feature weight and packaging: weight per pack 15.01 kg; packs of 1 with assembly parts included. Business impact: straightforward handling, predictable logistics, and faster installation. Application: on-site assembly in constrained spaces or lean maintenance schedules. Feature classifications and sourcing: customs tariff 73269098; ETIM EC002525; ECLASS 27182405; EAN 4028177465138. Business impact: streamlined procurement, accurate spares listing, and regulatory traceability. Application: procurement and compliance workflows across multinational manufacturing facilities.
Get a Quick Quote for a Rittal 9659555
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9659555?
Enquire Now
FAQs
The SV 9659.555 is designed to fit TS enclosures with a 1200 mm width and 800 mm depth. It pairs with standard TS dimensions and includes assembly parts, enabling straightforward retrofits without altering the enclosure framework. Ideal for upgrading cabinets in automation lines where roof replacement is needed.
Key specs include sheet steel construction at 1.5 mm thickness, textured paint finish in RAL 7035, an IP 2X ingress protection rating, a 72 mm build-up height, and a 1200x800 mm footprint. These details ensure durable protection, reliable ventilation, and consistent aesthetics across installed enclosures.
Yes. It is intended for enclosures without a roof plate and for exchanging the standard roof in other TS enclosures, simplifying retrofits and standardizing top-cover installations across multiple cabinets.
Certifications and standards reflected in the data include ETIM EC002525 and ECLASS 27182405 classifications, along with a Customs tariff number 73269098 and EAN 4028177465138. The product also features an IP 2X rating for ingress protection, aiding regulatory alignment and procurement accuracy.
By enabling rapid retrofits with assembly parts included and a standardized 1200x800 mm footprint, the plate reduces downtime, speeds upgrades, and extends enclosure life through a durable 1.5 mm steel top cover with textured finish. This translates to lower labor costs and fewer replacement roof variations over time.
