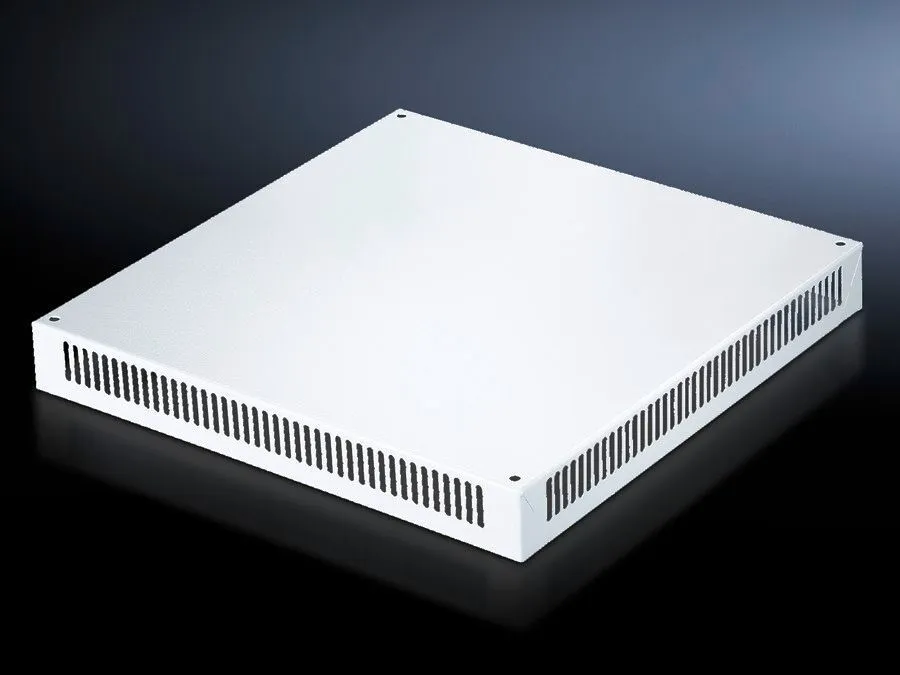

Rittal 9660245 Roof Plate - IP 2X
Part Number: 9660245
Quick Summary
Rittal 9660245 roof plate is designed to close the top of TS enclosures where a roof plate is missing or exchanged for a standard TS roof. This solution helps maintain enclosure integrity while preserving access for electrical and cable management. Facility engineers often struggle with gaps and airflow control when a roof plate is omitted, which this plate directly addresses by providing a precise fit and a robust finish. With IP 2X protection and textured RAL 7035 coating, it stands up to demanding industrial environments, reducing maintenance needs and protecting internal components. The solution pairs well with existing TS hardware, offering reliable installation and predictable performance for budget-conscious projects.
Product Information
Extended Description
9660245 Rittal: SV Roof plate, WD: 800x600 mm, IP 2X, for TS, H: 72 mm, with ventilation hole
Article number
SV 9660.245
Applications
For enclosures without roof plate and in exchange for the standard roof in other TS enclosures.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Build-up height
72 mm
To fit
Width: = 800 mm | Depth: = 600 mm
Packs of
1 pc(s).
Weight/pack
7.15 kg
Customs tariff number
73269098
EAN
4028177464957
ETIM 9
EC002525
ECLASS 8.0
27182405
Product description
SV Roof plate, WD: 800x600 mm, IP 2X, for TS, H: 72 mm, with ventilation hole
Feature → Business Impact → Application: The SV 9660.245 is a sheet steel roof plate (1.5 mm) that delivers a durable, corrosion-resistant top cover for TS enclosures. This translates to lower replacement costs and extended enclosure life in harsh plant environments. Application: use this plate when replacing a missing roof or upgrading enclosures that require a standard TS roof alternative. Feature → Business Impact → Application: Fabricated for exact fit (800x600 mm) with a 72 mm build height, ensuring a clean silhouette and compatibility with standard TS dimensions. Impact: simplifies retrofits and reduces field modification time, boosting installation efficiency on multi-site projects. Application: ideal for panel builders and system integrators delivering consistent enclosure assemblies. Feature → Business Impact → Application: Ventilation hole and IP 2X protection improve airflow management while maintaining enclosure safety. Impact: supports thermal performance and component longevity in operation-intensive environments. Application: suitable for enclosures with heat-generating equipment and restricted maintenance windows. Feature → Business Impact → Application: Textured paint finish in RAL 7035 provides robust aesthetics and weather resistance. Impact: minimizes cosmetic wear and simplifies color matching across plant assets. Application: appropriate for controlled environments where uniform appearance matters for branding and compliance. Feature → Business Impact → Application: Includes assembly parts for quick, tool-ready installation. Impact: reduces procurement complexity and accelerates commissioning time. Application: beneficial for installers needing reliable compatibility with TS mounting schemes. Overall, this roof plate aligns with industry practices for modular enclosure design, enabling predictable maintenance cycles, faster project delivery, and cost-efficient upgrades across multiple facilities.
Get a Quick Quote for a Rittal 9660245
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9660245?
Enquire Now
FAQs
The SV 9660.245 roof plate is sized for 800x600 mm TS enclosures and ships with assembly parts for quick mounting. Begin by aligning the plate with the enclosure top, install the supplied assembly hardware, and secure it to ensure IP 2X protection. The 72 mm build height maintains standard TS dimensions while providing a solid seal against dust and moisture. This approach minimizes field modification and speeds up commissioning.
Yes. This roof plate is specifically designed for enclosures missing the standard roof or when an alternative TS roof is required. Its precise 800x600 mm fit and 72 mm height ensure seamless compatibility with TS series cabinets, enabling a straightforward retrofit or replacement without custom fabrication.
Key specs include a 800x600 mm footprint, 1.5 mm sheet steel construction, textured paint finish in RAL 7035, IP 2X protection, and a build-up height of 72 mm. The package includes assembly parts and a weight of approximately 7.15 kg per pack, suitable for single-unit or multi-site deployments.
Yes. The SV 9660.245 roof plate is designed with ventilation considerations and IP 2X protection, helping to manage enclosure airflow while protecting internal components from dust and light moisture ingress. This balance supports thermal management and equipment longevity in demanding environments.
Delivery includes the roof plate with assembly parts, allowing tool-ready installation. The 7.15 kg per-pack weight and standard TS dimensions simplify handling and site prep, reducing crane or forklift time and cutting commissioning lead times for panel builders and system integrators.
