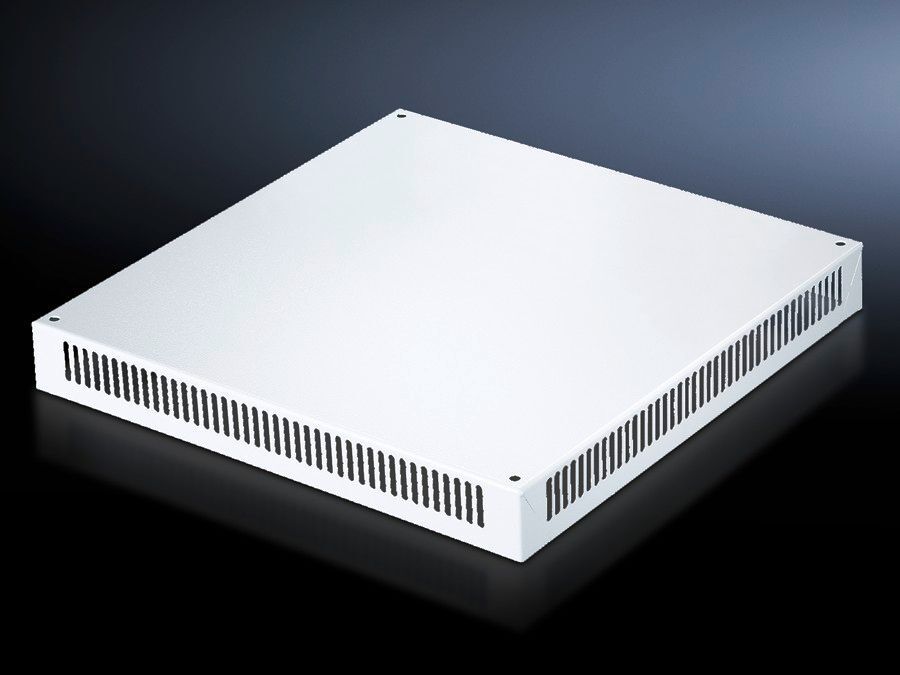

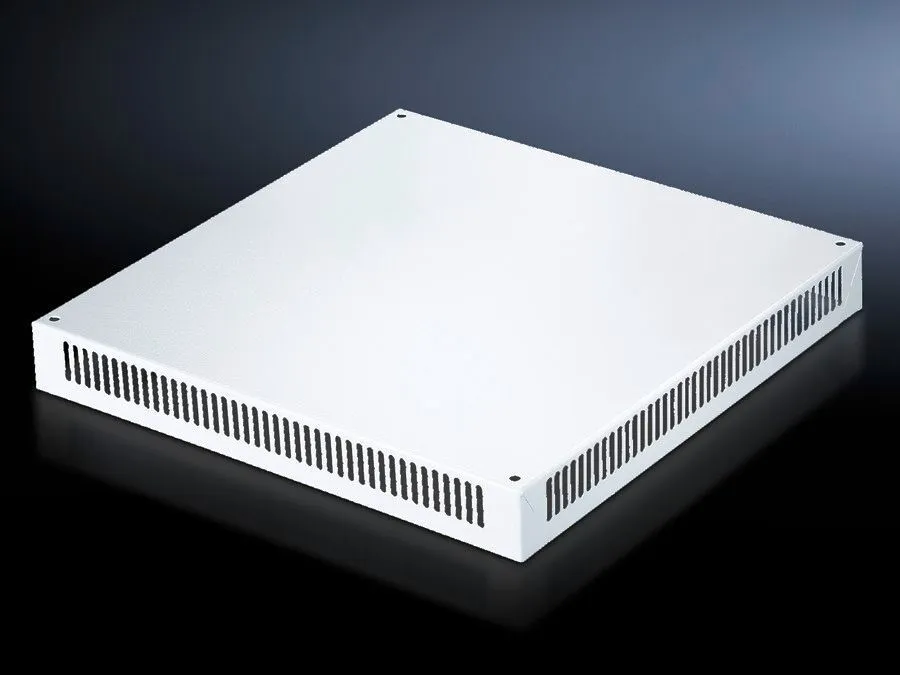

Rittal SV 9660.265 Roof Plate for TS - IP 2X, 72 mm
Part Number: 9660265
Quick Summary
Rittal SV 9660.265 Roof Plate is a replacement panel for TS enclosures that seals the top while maintaining interior ventilation. If you’re updating aging roofs or replacing roofs in mixed TS lines, you can face misalignment, downtime, and inconsistent cooling. This product delivers IP 2X protection and a textured paint finish in RAL 7035, with a build-up height of 72 mm to match TS dimensions, ensuring reliable enclosure integrity. By standardizing the roof interface, it also simplifies procurement and spares management. The solution integrates seamlessly with existing TS components, offering straightforward installation and predictable performance for control panels, electrical cabinets, and field devices.
Product Information
Extended Description
9660265 Rittal: SV Roof plate, WD: 1200x600 mm, IP 2X, for TS, H: 72 mm, with ventilation hole
Article number
SV 9660.265
Applications
For enclosures without roof plate and in exchange for the standard roof in other TS enclosures.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Build-up height
72 mm
To fit
Width:Â = 1,200 mm | Depth:Â = 600 mm
Packs of
1 pc(s).
Weight/pack
12 kg
Customs tariff number
73269098
EAN
4028177464971
ETIM 9
EC002525
ECLASS 8.0
27182405
Product description
SV Roof plate, WD: 1200x600 mm, IP 2X, for TS, H: 72 mm, with ventilation hole
Feature: 1.5 mm sheet steel construction provides robust protection and long-term durability. Business Impact: Reduces corrosion risk and maintenance costs in demanding environments, leading to lower total cost of ownership. Application: Suitable for TS enclosures exposed to dust, moisture, or mechanical wear. Feature: IP 2X protection and ventilation hole design safeguard internal components while enabling cooling airflow. Business Impact: Maintains equipment reliability and prevents overheating, supporting uptime in active control rooms and outdoor installations. Application: Ideal for industrial automation cabinets where cooling and ingress protection are essential. Feature: Build-up height of 72 mm and dimensions to fit 1200 mm width and 600 mm depth. Business Impact: Ensures exact compatibility with standard TS footprints, reducing retrofit effort and mounting errors. Application: Replaces standard roof sections without altering frame alignment. Feature: Textured paint finish in RAL 7035 and assembly parts supplied. Business Impact: Consistent aesthetics and quick, tool-free assembly/maintenance, minimizing downtime and variation across sites. Application: For uniform enclosure appearances in multi-site deployments. Feature: Weight per pack of 12 kg and single-pack packaging. Business Impact: Predictable shipping, handling, and installation planning, improving logistics efficiency. Application: Facilitates controlled delivery and on-site installation sequences. Feature: Compatibility with TS roof interfaces and ready-to-install design. Business Impact: Lower risk of misfit and fewer field adaptations, accelerating project timelines. Application: Replacement roofs in mixed TS environments and new builds alike. Industry insight: The SV 9660.265 aligns with common TS enclosure upgrade paths, supporting standardization across manufacturing facilities and data centers, while ensuring compliance with ETIM EC002525 and ECLASS 27182405 classifications for procurement systems. This compatibility reduces the need for custom adapters and accelerates spares provisioning.
Get a Quick Quote for a Rittal 9660265
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9660265?
Enquire Now
FAQs
SV 9660.265 is designed to match TS roof interfaces with a 1200x600 mm footprint and 72 mm build-up height. It ships with assembly parts for straightforward mounting, minimizing field modifications. Confirm enclosure depth and mounting pattern before replacement to ensure a seamless fit and preserve ventilation paths.
This roof plate is intended for TS enclosures and serves as a direct roof replacement or top cover where no roof plate exists. It preserves the standard mounting interface for TS, reducing the need for adapter kits and enabling quick interchange across compatible TS models.
The plate offers IP 2X ingress protection and includes a ventilation hole to maintain airflow. These features help protect internal equipment from dust and humidity while supporting thermal management in automated control cabinets and electrical enclosures.
Constructed from 1.5 mm sheet steel with a textured paint finish in RAL 7035, the roof plate combines durability with a low-maintenance, weather-resistant surface. This finish enhances corrosion resistance and provides a consistent appearance across sites, reducing repainting needs.
Upgrade reduces downtime by enabling rapid roof replacement, standardizes TS interfaces, and improves cooling reliability. With a single-pack weight of 12 kg and included assembly parts, installation is predictable and cost-effective, delivering faster project ROI in maintenance programs and facility upgrades.
