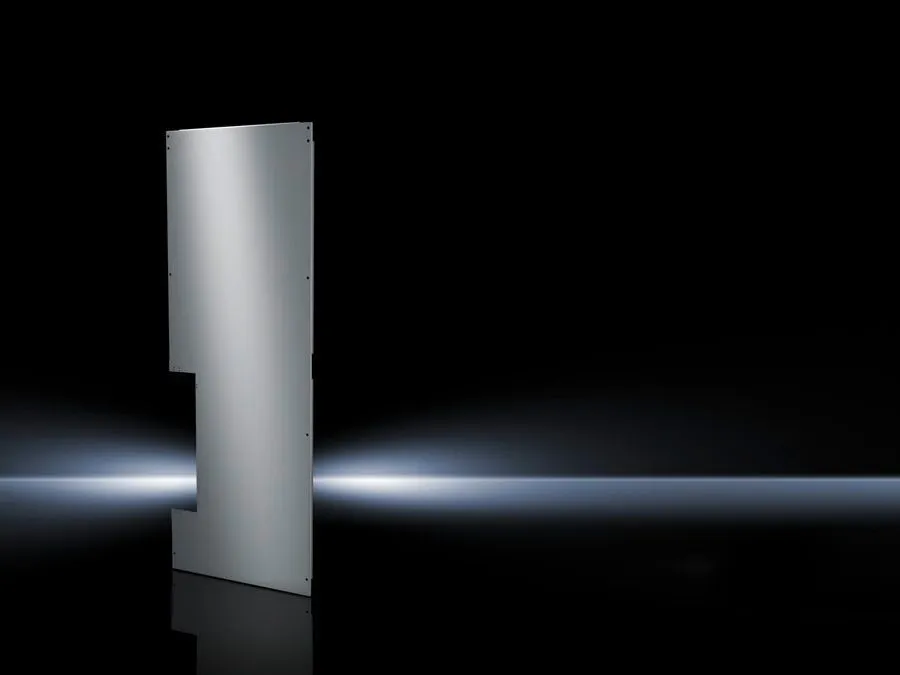

Rittal SV 9660.620 Divider Panel - Maxi-PLS TS 2000x600
Part Number: 9660620
Manufacturer
Rittal
Part number
9660620
Category
Alt Part Number
SV 9660.620
Quick Summary
The Rittal SV 9660.620 Divider Panel provides side shielding for Maxi-PLS busbars in TS enclosures. This solution addresses the common challenge of arcing and interference between adjacent panels in compact control cabinets. While the data set lists ETIM 9 EC002525 and ECLASS 8.0 27409221 for system interoperability, certification details such as CE, SIL or IP ratings are not specified and should be confirmed with Rittal. For integrators and manufacturers, the divider panel offers a reliable path to safer, more maintainable panel builds. Leveraging the TS 8 enclosure compatibility and the 2000x600 mm footprint, it supports scalable, serviceable electrical distribution with reduced risk and faster commissioning.
Product Information
Extended Description
9660620 Rittal: SV Divider panel, for Maxi-PLS busbar, in the TS rear section, for TS (HD: 2000x600 mm)
Article number
SV 9660.620
Design
For Maxi-PLS busbars in the roof section
Applications
For side shielding from neighbouring panels. In conjunction with the busbar gland and the divider panel modules to prevent arcing.
Supply includes
Assembly parts
To fit
Enclosure type: TS 8 | Height: = 2,000 mm | Depth: = 600 mm
Packs of
1 pc(s).
Weight/pack
12.9 kg
Customs tariff number
73269098
EAN
4028177401242
ETIM 9
EC002525
ECLASS 8.0
27409221
Product description
SV Divider panel, for Maxi-PLS busbar, in the TS rear section, for TS (HD: 2000x600 mm)
Feature: Dedicated divider panel for Maxi-PLS busbars in the TS rear section. Benefit: Improves safety and electrical isolation, reducing arcing risk and enabling cleaner signal paths. Application: Ideal for TS 8 enclosures housing Maxi-PLS busbars in the roof area. Feature: Assembly parts included. Benefit: Speeds up installation and minimizes on-site sourcing, reducing labor time and project costs. Application: On-site assembly for TS 8 cabinets with Maxi-PLS busbar layouts. Feature: Pack size and weight specification. Benefit: Predictable handling and easier logistics, supporting safer lifting and mounting workflows. Application: 1 pack at 12.9 kg fits standard installation routines. Feature: Clear enclosure fitment data. Benefit: Eliminates guesswork and ensures correct procurement, improving first-time fit accuracy. Application: Enclosure type TS 8, height 2000 mm, depth 600 mm. Feature: Proven part identity and traceability. Benefit: Supports BOM accuracy and regulatory traceability with defined article number SV 9660.620 and EAN 4028177401242. Application: Global sourcing and cross-reference in purchasing systems.
Get a Quick Quote for a Rittal 9660620
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9660620?
Enquire Now
FAQs
The SV 9660.620 is specified for TS 8 enclosures with a height of 2000 mm and depth of 600 mm, designed to shield Maxi-PLS busbars in the rear section. This ensures a precise fit within standard TS configurations and aligns with Maxi-PLS gland and divider module systems for arcing prevention.
The divider panel works in conjunction with Maxi-PLS busbar glands and adjacent divider modules to create physical separation between panels. This minimizes potential arcing paths, enhances electrical insulation, and contributes to overall enclosure reliability in high-density installations.
Yes. The SV 9660.620 ships with assembly parts, simplifying mounting in TS 8 enclosures. The pack size is 1, and the weight is 12.9 kg, which supports safe handling and faster commissioning on site.
The product data lists ETIM 9 EC002525 and ECLASS 8.0 27409221, which support interoperability in purchasing and systems integration. For regulatory certifications like CE or IP ratings, please confirm with Rittal directly, as these are not specified in the provided data.
By providing reliable arcing prevention, tighter side shielding, and faster installation, the divider panel reduces downtime, enhances safety, and improves BOM accuracy. Its 2000x600 footprint matches TS 8 configurations, helping streamline procurement and installation for panel builders and system integrators.
