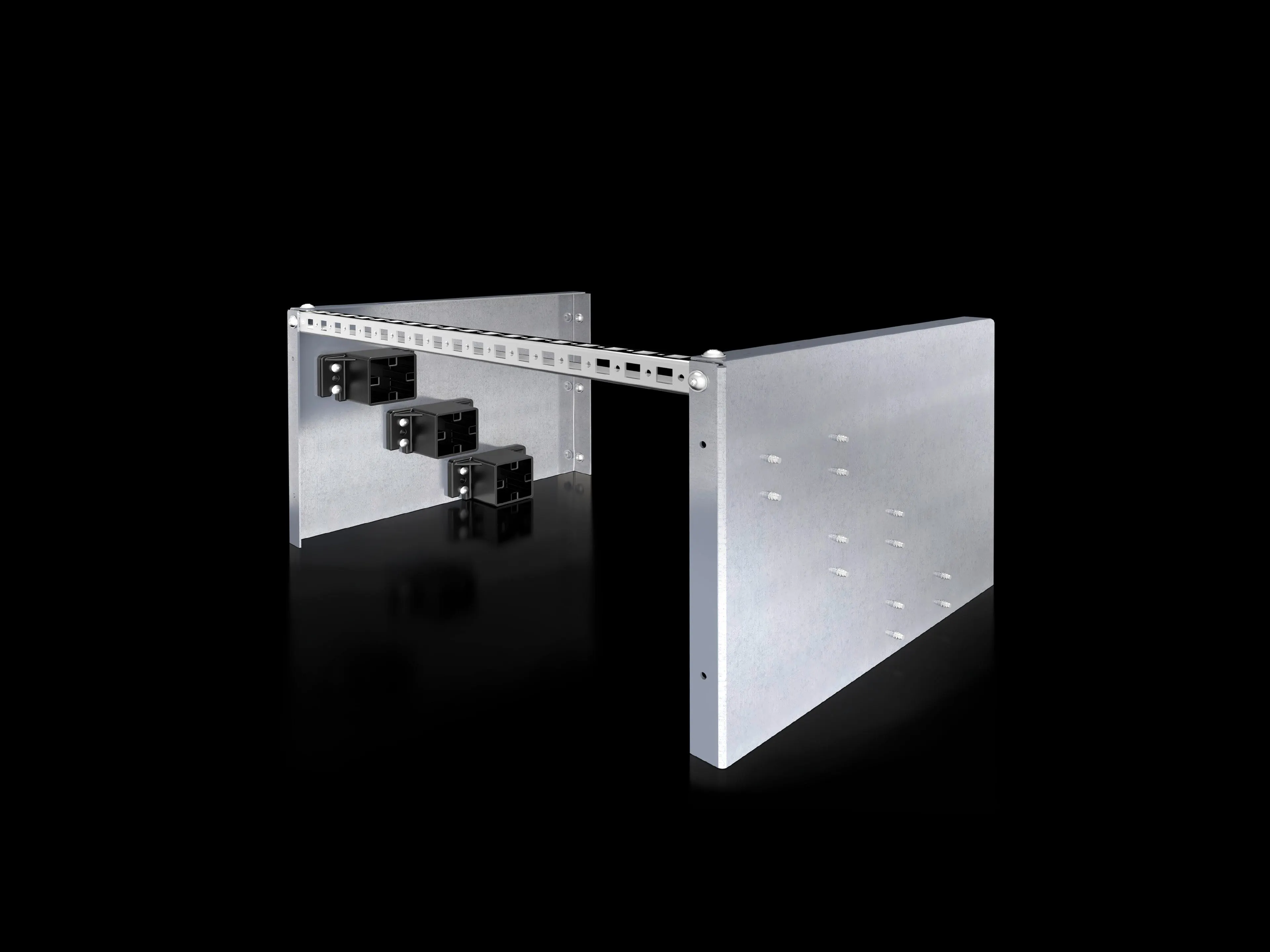

Rittal SV 9660.980 SV Compact Infeed - Maxi-PLS 3-Pole
Part Number: 9660980
Manufacturer
Rittal
Part number
9660980
Category
Alt Part Number
SV 9660.980
Quick Summary
Rittal SV 9660.980 SV Compact Infeed provides a precise 3-pole cable connection bar system designed for Maxi-PLS busbar installations in panel-mounted applications. It eliminates the need for mounting flanges on punched sections, speeds up assembly, and minimizes phase fault risks by delivering a solid, direct mounting solution. Aligned with ETIM 9 EC002525 and ECLASS 8.0 27400613, it supports standardized data handling, efficient procurement, and cross-supplier compatibility. The infeed ships with six end supports, two support plates, and a 23 x 23 mm punched rail (495 mm) for flexible layout options in compact power distributions. By combining robust materials and clear installation parts with Maxi-PLS compatibility, it enables scalable power distribution that reduces maintenance cycles and total lifecycle costs.
Product Information
Extended Description
9660980 Rittal: SV Compact infeed, for Maxi-PLS busbar, (Maxi-PLS 1600/2000)
Article number
SV 9660.980
Product description
For individual use as a 3-pole cable connection bar system. Direct mounting on the mounting plate or punched section without mounting flange.
Material
End support: Polyamide (PA 6) | Retaining plate: Sheet steel, zinc-plated | Punched rail: Sheet steel, zinc-plated
Supply includes
6 end supports | 2 support plates for end supports | 1 punched rail 23 x 23 mm (length 495 mm) | Assembly parts
To fit busbars
Maxi-PLS 45 S/45
Packs of
1 pc(s).
Weight/pack
3.8 kg
Customs tariff number
85369001
EAN
4028177525726
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compact infeed, for Maxi-PLS busbar, (Maxi-PLS 1600/2000)
Direct mounting without a flange minimizes misalignment and accelerates commissioning, delivering reliable contact in tight cabinet spaces and improving first-pass electrical integrity for Maxi-PLS busbar layouts. The included kit—six end supports, two end support plates, one 23 x 23 mm punched rail (495 mm)—ensures a consistent, repeatable installation, reducing sourcing time and on-site variation. End supports are constructed from PA 6, with retaining plates and punched rails in zinc-plated sheet steel, delivering durable mechanical support and corrosion resistance in industrial environments. Compatibility with Maxi-PLS 45 S/45 enables seamless expansion of power distribution topologies, while a compact 3.8 kg pack size supports safer handling and reduced logistics costs. ETIM 9 EC002525 and ECLASS 8.0 27400613 data alignment simplifies procurement and ERP integration. The 85369001 customs tariff classification aids global distribution without surprises at the border. Together these factors translate into faster projects, lower maintenance overhead, and clearer BOM data for engineering teams.
Get a Quick Quote for a Rittal 9660980
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9660980?
Enquire Now
FAQs
The SV 9660.980 is designed for direct mounting on mounting plates or punched rails without a mounting flange. The kit includes six end supports, two end support plates, and one 23 x 23 mm punched rail (495 mm) with assembly parts, enabling a straightforward, repeatable installation process. For best results, align the end supports with the Maxi-PLS busbar sections and secure using the provided hardware, ensuring proper electrical contact and mechanical stability.
The package includes six end supports, two end support plates, one punched rail 23 x 23 mm (495 mm), and assembly parts, all designed to mount directly onto the Maxi-PLS busbar system. This ready-to-install kit reduces sourcing steps, ensures consistent part usage across installations, and supports fast commissioning in both new builds and retrofits, while maintaining a compact footprint.
The SV Compact Infeed is specified to fit Maxi-PLS 45 S/45 configurations, enabling seamless integration within common Maxi-PLS busbar topologies. This compatibility supports scalable power distribution layouts while preserving reliable contact and straightforward installation in compact control cabinets.
The SV 9660.980 aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613, providing standardized data that simplifies ERP, procurement, and CAD integration. The product also carries EAN 4028177525726 and a customs tariff number 85369001 to facilitate international shipping and regulatory compliance in global distribution channels.
By enabling direct mounting without flanges, the SV 9660.980 reduces installation steps and commissioning time, lowers the risk of misalignment, and improves first-pass electrical integrity. Its Maxi-PLS compatibility supports scalable power distribution, while standardized data and a complete hardware kit simplify procurement, BOM management, and maintenance planning, delivering lower lifecycle costs for industrial power systems.
