Rittal 9661020 SV Busbar E-Cu - Ø14 mm holes
Part Number: 9661020
Quick Summary
Rittal 9661020 SV Busbar E-Cu enables direct enclosure installation for reliable panel power distribution. In busy control cabinets, engineers struggle with alignment, space constraints, and corrosion risk that drive installation time and maintenance costs. ETIM 9 EC002525 and ECLASS 8.0 27400605 classifications provide standardized data for procurement and engineering, while regional CE and IP compliance should be confirmed by the buyer. Compatibility with PE/PEN combinations and standard busbar supports speeds assembly, improves consistency across assemblies, and lowers lifecycle costs. This combination of performance, data standards, and integration flexibility delivers measurable value for panel builders and end users.
Product Information
Extended Description
9661020 Rittal: SV Busbar E-Cu, WH: 40x10 mm, L: 1192 mm, with integral holes Ø 14 mm
Article number
SV 9661.020
Product description

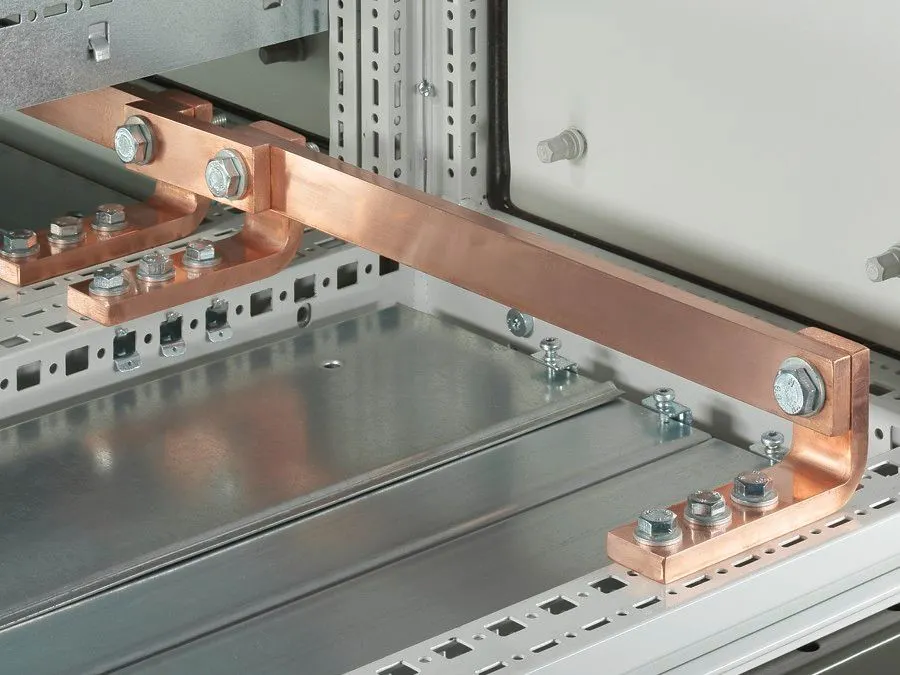

Suitable for direct installation in enclosures, busbar supports 9340.000/.010. 9340.004, 9342.014, 3052.000 and 3073.000. PE/PEN combinations in conjunction with PE/PEN combination angle and baying bracket E-Cu.
Material
E-Cu
Ø hole
14 mm
Dimensions
Length: 1,192 mm
To fit
Width: = 1,200 mm
Cross-section
10 mm x 40 mm
Packs of
2 pc(s).
Weight/pack
8.526 kg
Copper weight (kg per piece)
4.19
Customs tariff number
74071000
EAN
4028177494749
ETIM 9
EC002525
ECLASS 8.0
27400605
Product description
SV Busbar E-Cu, WH: 40x10 mm, L: 1192 mm, with integral holes Ø 14 mm
Feature: Copper E-Cu material delivers high electrical conductivity and mechanical reliability, reducing resistive losses and ensuring stable performance in distribution topology. Business Impact: Lower energy waste, improved thermal management, and longer service life in demanding enclosure environments. Application: Ideal for direct enclosure installation in control panels and distribution boards where space efficiency and reliable copper conductors are critical. Feature: Dimensions 40x10 mm cross-section with 1192 mm length and Ø 14 mm holes provide precise fitment and straightforward baying. Business Impact: Simplifies layout planning, enables rapid alignment with adjacent modules, and minimizes trimming or rework. Application: Works with standard enclosure widths up to 1,200 mm, supporting scalable architectures in modular panel builds. Feature: Pack configuration and copper weight 2 pcs per pack; copper weight 4.19 kg per piece; weight per pack 8.526 kg. Business Impact: Predictable shipping, easier logistics planning, and accurate material costing for bids and projects. Application: Facilitates procurement and inventory management for mid to large-scale control cabinet rollouts. Feature: Compatibility with busbar supports 9340.000/.010, 9340.004, 9342.014, 3052.000 and 3073.000. Business Impact: Reduces need for adapters or custom brackets, cutting installation time and risk of improper mounting. Application: Streamlines retrofits and new builds within existing Rittal enclosures. Feature: PE/PEN combination readiness with angle and baying bracket E-Cu. Business Impact: Enables compliant earth/neutral distribution in compact layouts, minimizing wiring complexity. Application: Supports compliant PE/PEN configurations across a range of distributions and panel designs. Feature: Data standardization via ETIM 9 EC002525 and ECLASS 8.0 27400605. Business Impact: Improves data quality, ERP integration, and supplier collaboration. Application: Facilitates procurement, BOM generation, and cross-system data exchanges for engineering teams.
Get a Quick Quote for a Rittal 9661020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9661020?
Enquire Now
FAQs
Begin by aligning the 40x10 mm cross-section with the enclosure busbar supports (9340.000/.010, 9340.004, 9342.014, 3052.000, 3073.000). Ensure the Ø14 mm holes align with mounting points, then secure with appropriate fasteners. The 1192 mm length fits common 1,200 mm wide setups for rapid baying with PE/PEN configurations.
The busbar has a 40x10 mm cross-section, a length of 1,192 mm, and integral Ø14 mm holes. It is designed to fit enclosures up to 1,200 mm in width, enabling precise installation and straightforward alignment with compatible supports.
Yes. The SV Busbar E-Cu is specified for PE/PEN combinations in conjunction with PE/PEN angle and baying brackets, enabling compliant protective-earth and neutral distribution within enclosed control panels.
The product is classified under ETIM 9 EC002525 and ECLASS 8.0 27400605, with EAN 4028177494749 and article SV 9661.020. These classifications support consistent data exchange and procurement across engineering systems.
Copper weight is 4.19 kg per piece, and packs contain 2 pieces. Weight per pack is 8.526 kg, aiding packaging, shipping, and inventory planning for panel builds.
