Rittal SV 9661.050 Baying Bracket E-Cu - IEC 61439-1 Type-Tested
Part Number: 9661050
Quick Summary
Rittal SV 9661.050 baying bracket E-Cu connects rectangular busbars across enclosures for PE/PEN configurations. Engineers often struggle with reliable, compliant busbar connections that stay aligned through panel revisions and modular builds. The part is type-tested to IEC 61439-1 and supports CE marking, with ETIM 9 EC002525 and ECLASS 8.0 references guiding seamless procurement and integration. By standardising mounting and material, this bracket accelerates installation, improves grounding reliability, and supports consistent supply chain performance for panel builders and system integrators.
Product Information
Extended Description

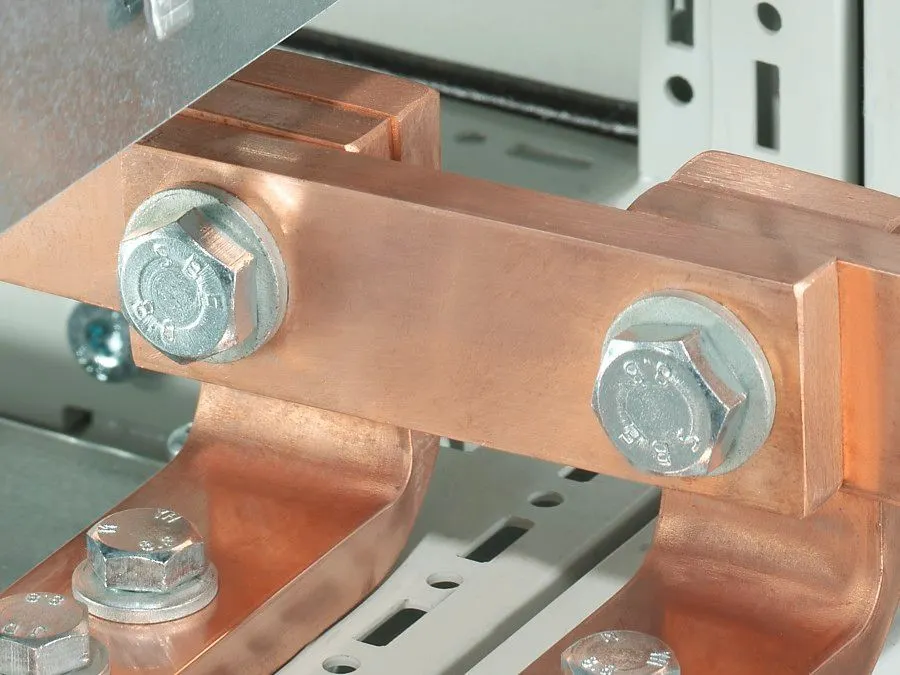

9661050 Rittal: SV Baying bracket E-Cu, L: 88 mm, for E-Cu 40x10 mm
Article number
SV 9661.050
Product description
For connecting rectangular busbars from enclosure to enclosure in conjunction with PE/PEN combination angles.
Material
E-Cu
To fit busbars
Busbar E-Cu with integral punchings
Dimensions
Length:Â 88 mm
To fit busbars
Width:Â 40 | Height:Â 10Â mm
Packs of
4 pc(s).
Weight/pack
1.82 kg
Copper weight (kg per piece)
0.28
Customs tariff number
74198090
EAN
4028177494695
ETIM 9
EC002525
ECLASS 8.0
27409221
Product description
SV Baying bracket E-Cu, L: 88 mm, for E-Cu 40x10 mm
The SV 9661.050 is an E-Cu baying bracket designed to connect rectangular busbars from enclosure to enclosure in conjunction with PE/PEN combination angles, delivering high-conductivity, robust grounding paths and reduced resistance in critical power distribution paths. This translates to measurable efficiency gains during commissioning and lower long-term maintenance costs in dense control cabinets. With a length of 88 mm and a busbar fit of 40x10 mm, it provides precise alignment and predictable thermal performance, while packing four pieces per set and a weight of 1.82 kg per pack supports streamlined logistics and stocking. The copper weight per piece (0.28 kg) ensures reliable current carrying capacity, and the EAN 4028177494695 enables traceable supply. Compatibility with standard Rittal enclosures minimizes retrofit risk and installation downtime. The product description, including PE/PEN combination compatibility, simplifies design decisions for engineers working on modular systems.
