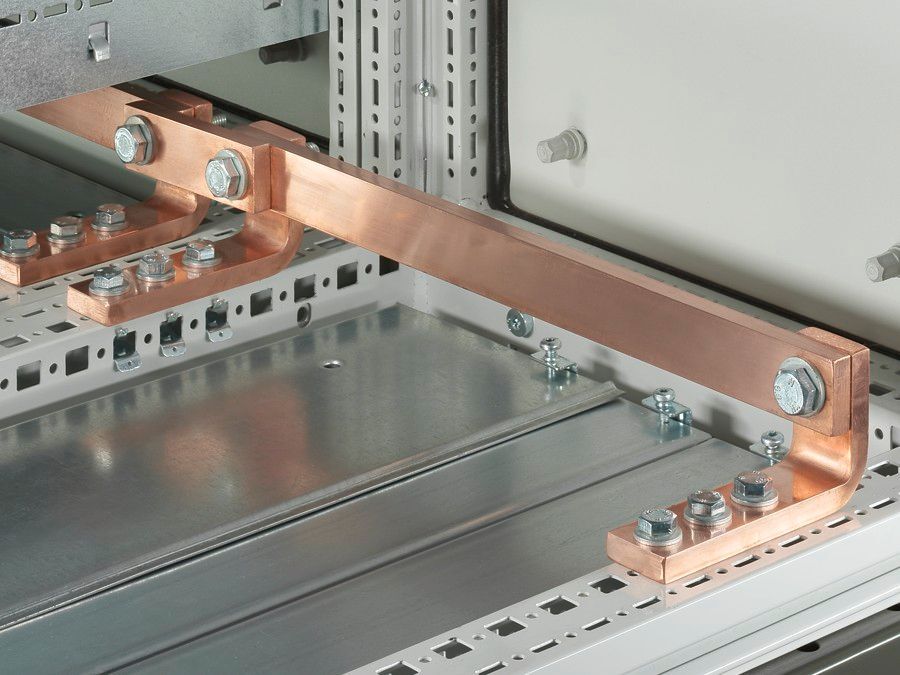

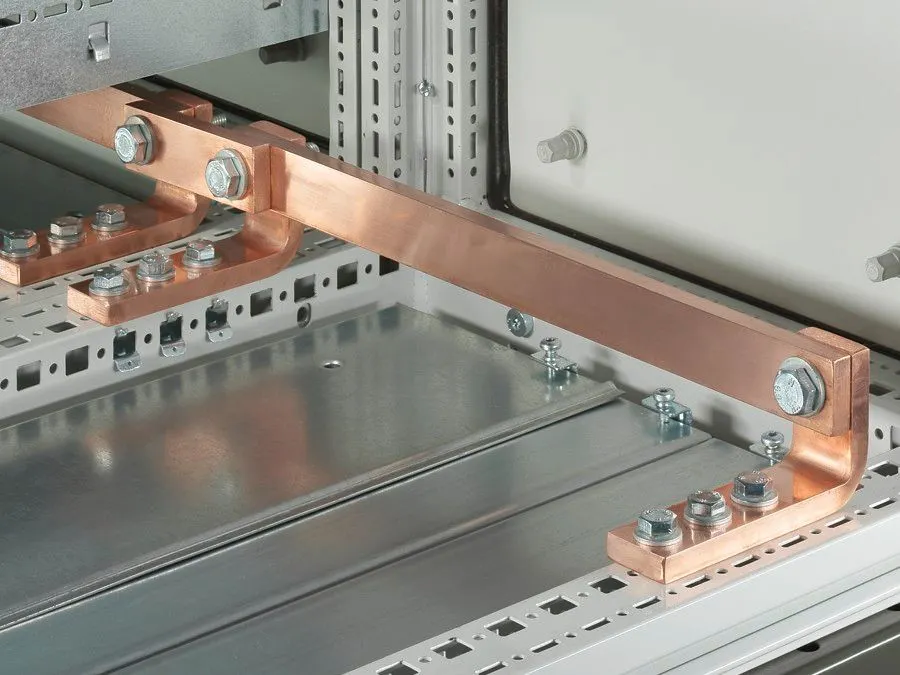

Rittal 9661080 SV Busbar E-Cu - Ø14 mm holes, direct install
Part Number: 9661080
Quick Summary
Rittal SV Busbar E-Cu is designed for direct enclosure installation, enabling clean, reliable copper busbar runs in compact panels. Engineers often struggle with space efficiency and ensuring solid electrical contact in mixed-metal environments, which this busbar addresses with precisely engineered 40x10 mm cross-section and hard-wearing E-Cu material. The solution aligns with industry standards such as ETIM 9 EC002525 and ECLASS 8.0 27400605 for seamless procurement and part interoperability, while the inclusion of integral Ø14 mm holes supports versatile mounting. By leveraging direct-install capability and standard PE/PEN configurations, this busbar helps reduce assembly time and improve wiring organization, delivering measurable gains in reliability, safety, and maintenance readiness for data centers, machinery, and control panels.
Product Information
Extended Description
9661080 Rittal: SV Busbar E-Cu, WH: 40x10 mm, L: 792mm, with integral holes Ø 14 mm
Article number
SV 9661.080
Product description
Suitable for direct installation in enclosures, busbar supports 9340.000/.010. 9340.004, 9342.014, 3052.000 and 3073.000. PE/PEN combinations in conjunction with PE/PEN combination angle and baying bracket E-Cu.
Material
E-Cu
Ø hole
14 mm
Dimensions
Length: 792 mm
To fit
Width: = 800 mm
Cross-section
10 mm x 40 mm
Packs of
2 pc(s).
Weight/pack
5.66 kg
Copper weight (kg per piece)
2.77
Customs tariff number
74071000
EAN
4028177494725
ETIM 9
EC002525
ECLASS 8.0
27400605
Product description
SV Busbar E-Cu, WH: 40x10 mm, L: 792mm, with integral holes Ø 14 mm
Feature: Direct installation in enclosures with a 40x10 mm cross-section and E-Cu material. Business Impact: Ensures low electrical impedance paths and robust grounding while minimizing panel space usage. Application: Ideal for confined control cabinets and modular rack installations where copper reliability matters. Feature: Integral Ø14 mm mounting holes. Business Impact: Simplifies alignment and reduces assembly tooling, cutting installation time. Application: Useful for quick baying and bracket mounting in PE/PEN configurations. Feature: Length of 792 mm and width fit for 800 mm enclosure bays. Business Impact: Delivers modular scalability and consistent fit across common enclosure sizes, reducing custom fabrication costs. Application: Suitable for standard Rittal enclosures and pre-planned busbar runs. Feature: Copper weight 2.77 kg per piece; packs of two weigh 5.66 kg. Business Impact: Predictable handling, easier logistics, and stable impedance characteristics in medium-power layouts. Application: Streamlines procurement and stock management for maintenance cycles. Feature: Cross-section 10 mm x 40 mm with Ø14 mm holes and compatibility with busbar supports (9340.000/.010, 9340.004, 9342.014, 3052.000, 3073.000). Business Impact: Ensures system interoperability and reduces adaptation costs when expanding or upgrading panels. Application: Facilitates seamless upgrades in existing Rittal busbar ecosystems. Feature: Product description and standards alignment (ETIM 9 EC002525, ECLASS 8.0 27400605). Business Impact: Improves data accuracy, parts interoperability, and procurement efficiency. Application: Beneficial for engineering bills of materials and compliance documentation. These features collectively translate into faster installation, dependable performance, and lower lifecycle costs for industrial control panels and automation cabinets.
Get a Quick Quote for a Rittal 9661080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9661080?
Enquire Now
FAQs
Install directly inside the enclosure using the Ø14 mm holes for precise alignment. Use compatible busbar supports (9340.000/.010, 9340.004, 9342.014, 3052.000, 3073.000) and PE/PEN configurations with the E-Cu baying bracket to ensure a solid, maintainable layout.
The busbar is copper (E-Cu) with a cross-section of 10 mm x 40 mm, length 792 mm, and mounting holes of Ø14 mm. It weighs 2.77 kg per piece (5.66 kg per pack of two).
Yes. The product supports PE/PEN combinations in conjunction with the PE/PEN combination angle and baying bracket E-Cu, enabling flexible grounding arrangements within enclosure layouts.
The part aligns with ETIM 9 EC002525 and ECLASS 8.0 27400605 for standardized product data. It also carries the EAN 4028177494725 for traceability in catalogs and procurement systems.
Expected benefits include faster installation due to direct-enclosure mounting, improved wiring organization, reliable copper conductors with stable impedance, and reduced lifecycle costs through standardized data and compatible supports in Rittal enclosure ecosystems.
