Rittal 9661100 Busbar E-Cu - Ø14 mm Holes, 10x80 mm, CE
Part Number: 9661100
Quick Summary
Rittal 9661100 Busbar E-Cu is a direct-install copper busbar for enclosure power distribution. Engineers face space constraints, lengthy wiring, and corrosion risks when wiring large control panels, which can drive up installation time and maintenance costs. CE compliance, ETIM 9 EC002525, and ECLASS 27400605 support safe, interoperable integration across European and global supply chains. This busbar is designed for direct enclosure mounting with PE/PEN combinations and supported by E-Cu baying brackets, delivering predictable conductivity and mechanical stability. By standardizing the copper cross-section and hole pattern, it simplifies inventory and installation planning, while enabling scalable, fault-tolerant power distribution in automation and process equipment.
Product Information
Extended Description
9661100 Rittal: SV Busbar E-Cu, WH: 80x10 mm, L: 992mm, with integral holes Ø 14 mm
Article number
SV 9661.100
Product description

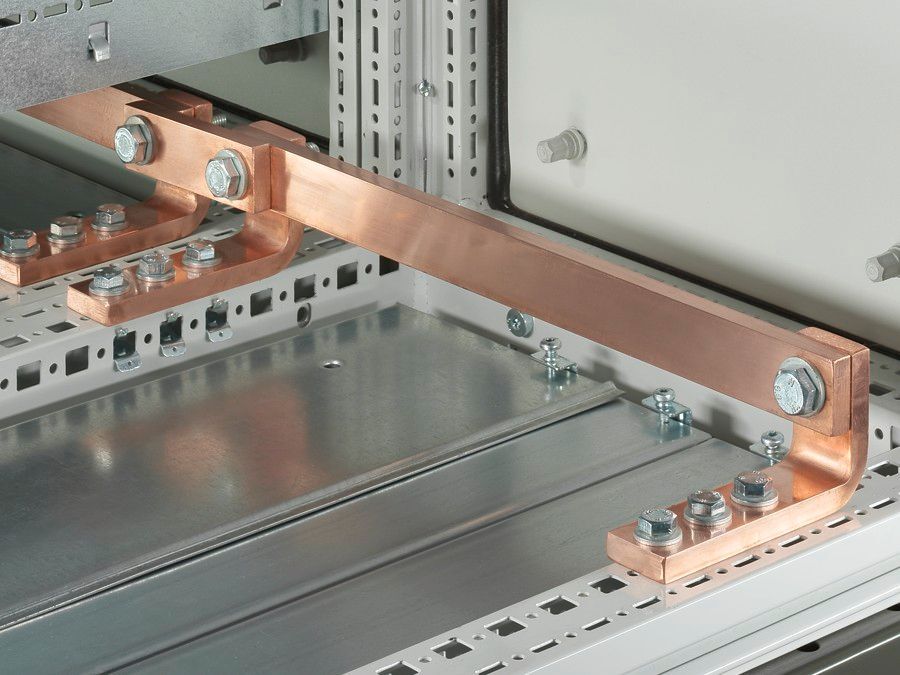

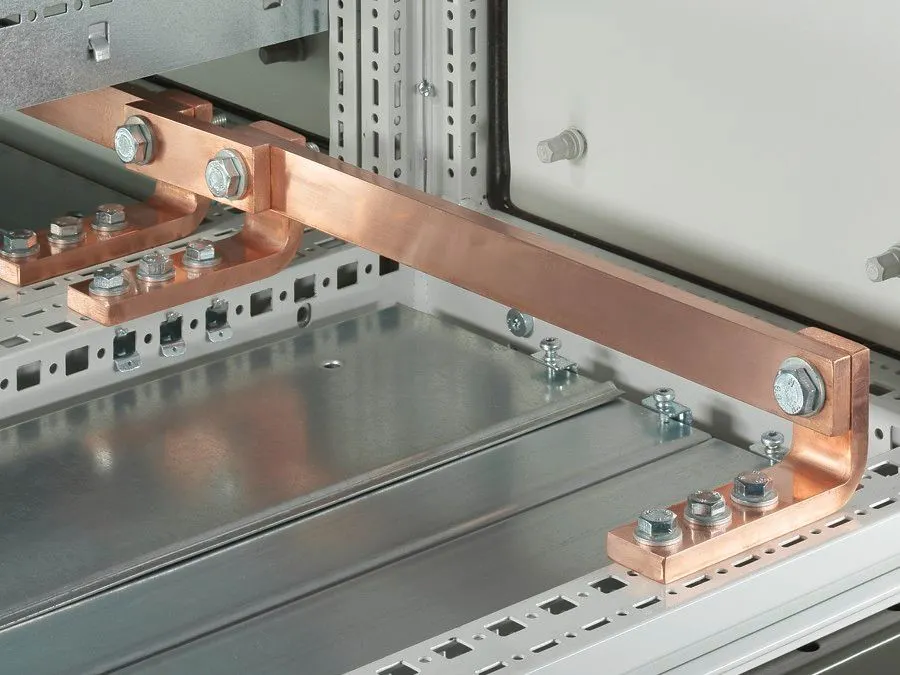

Suitable for direct installation in enclosures, busbar supports 9340.000/.010. 9340.004, 9342.014, 3052.000 and 3073.000. PE/PEN combinations in conjunction with PE/PEN combination angle and baying bracket E-Cu.
Material
E-Cu
Ø hole
14 mm
Dimensions
Length: 992 mm
To fit
Width: = 1,000 mm
Cross-section
10 mm x 80 mm
Packs of
2 pc(s).
Weight/pack
15.04 kg
Copper weight (kg per piece)
7.02
Customs tariff number
74071000
EAN
4028177494770
ETIM 9
EC002525
ECLASS 8.0
27400605
Product description
SV Busbar E-Cu, WH: 80x10 mm, L: 992mm, with integral holes Ø 14 mm
Feature: E-Cu material delivers high electrical conductivity and strong corrosion resistance, minimizing heat buildup in dense panel environments. Business Impact: Reduced risk of overheating, longer service life, and lower maintenance costs. Application: Ideal for direct mounting in Rittal enclosures and similar systems where copper busbars support reliable PE/PEN distribution. Feature: 10x80 mm cross-section provides robust current-carrying capacity with compact form factor. Business Impact: Higher current density without excessive enclosure width, enabling tighter control panels. Application: Suitable for automation panels with limited space. Feature: Length of 992 mm with integral Ø14 mm holes enables flexible mounting and precise alignment. Business Impact: Faster installation, fewer shims, and consistent mounting geometry. Application: Compatible with PE/PEN combination angles and baying brackets. Feature: Pack of two and 7.02 kg copper weight per piece (15.04 kg per pack) optimize logistics and inventory control. Business Impact: Lower total cost of ownership through efficient shipping and stock management. Application: Streamlined procurement for multi-panel deployments. Feature: Direct enclosure compatibility with busbar supports and PE/PEN configurations improves installation confidence. Business Impact: Reduced panel downtime and easier fault isolation. Application: Essential for scalable industrial automation architectures. Feature: Certifications and standards (CE, ETIM EC002525, ECLASS 27400605) enhance supplier reliability and data interoperability. Business Impact: Smoother compliance audits and improved integration with ERP/procurement systems. Application: Widely adopted in European and global manufacturing environments.
Get a Quick Quote for a Rittal 9661100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9661100?
Enquire Now
FAQs
Yes. SV 9661.100 is designed for direct enclosure mounting and is compatible with Rittal busbar supports 9340.000/.010, 9340.004, 9342.014, 3052.000 and 3073.000. It also supports PE/PEN combinations in conjunction with the PE/PEN combination angle and baying bracket E-Cu, ensuring straightforward integration into standard panel builds.
The busbar features an 80x10 mm cross-section and a length of 992 mm with Ø14 mm holes. Copper weight per piece is 7.02 kg, and packs contain two pieces with a total weight of 15.04 kg per pack, facilitating predictable shipping and handling for large installations.
Applications include direct installation in control enclosures for PE/PEN power distribution, integration with busbar supports within Rittal systems, and layouts requiring standardized hole patterns for fast mounting. It is ideal for automation panels, process equipment, and any enclosure-based power distribution that prioritizes reliable, low-resistance copper conductors.
The busbar is CE-compliant, with ETIM 9 classification EC002525 and ECLASS 27400605. Its product data also references EAN 4028177494770 and customs tariff number 74071000, which supports procurement data accuracy and regulatory traceability across global supply chains.
Copper busbars like SV 9661.100 reduce contact resistance and heat buildup, improving panel reliability and reducing downtime. The standardized cross-section and hole pattern speed up installation, while durable E-Cu construction lowers maintenance needs and extends service life, delivering a favorable return on investment for multi-panel automation projects.
