Rittal 9661150 SV Baying bracket E-Cu - IEC 61 439-1
Part Number: 9661150
Quick Summary
Rittal 9661150 baying bracket for E-Cu busbars is the essential PE/PEN connection accessory that links enclosures with a robust, low-resistance path. Engineers often struggle with maintaining reliability in compact switchgear while keeping installation time to a minimum. This solution is type-tested to IEC 61 439-1 and aligns with ETIM 9 and ECLASS 8.0 for clear cataloging and compliance. By supporting busbar configurations of 80x10 mm with an 88 mm length, it delivers predictable electrical performance and reduces field commissioning effort, translating to lower total cost of ownership and smoother project execution.
Product Information
Extended Description

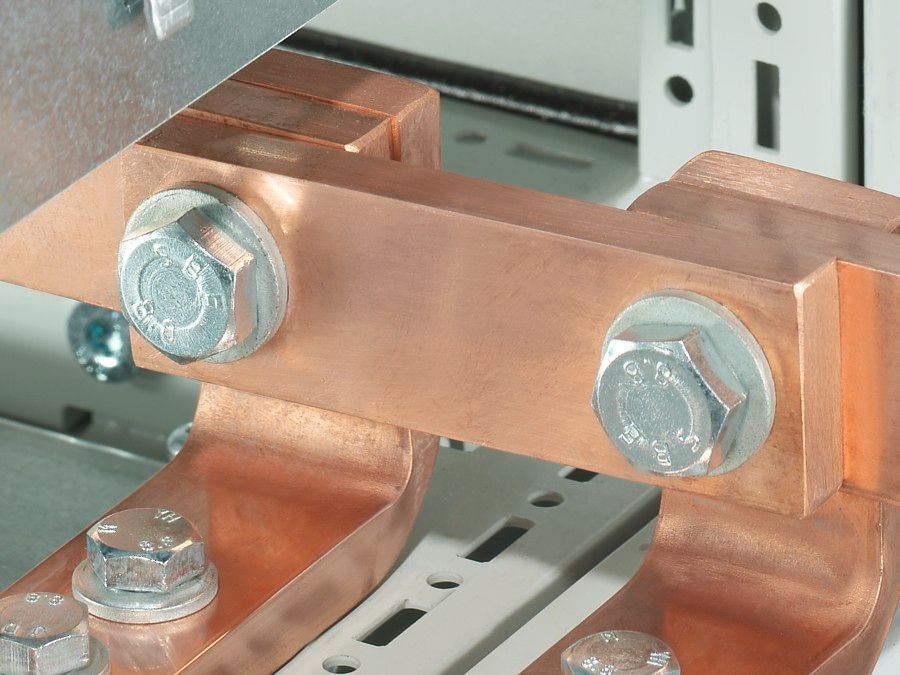

9661150 Rittal: SV Baying bracket E-Cu, L: 88 mm, for E-Cu 80x10 mm
Article number
SV 9661.150
Product description
For connecting rectangular busbars from enclosure to enclosure in conjunction with PE/PEN combination angles.
Material
E-Cu
To fit busbars
Busbar E-Cu with integral punchings
Dimensions
Length: 88 mm
To fit busbars
Width: 80 | Height: 10 mm
Packs of
4 pc(s).
Weight/pack
3.08 kg
Copper weight (kg per piece)
0.52
Customs tariff number
74198090
EAN
4028177494701
ETIM 9
EC002525
ECLASS 8.0
27409221
Product description
SV Baying bracket E-Cu, L: 88 mm, for E-Cu 80x10 mm
Feature → Business Impact → Application: The SV Baying bracket is manufactured from E-Cu, delivering excellent conductivity and mechanical strength, which reduces contact resistance and heat buildup in duty cycles typical of enclosure interconnections. This improves overall system reliability for critical PE/PEN configurations in modular switchgear and supports long service life in harsh manufacturing environments. The 88 mm length and 80x10 mm busbar compatibility simplify installer choices and lower on-site part handling, accelerating project timelines while maintaining strict electrical margins. Feature → Business Impact → Application: Packs of four with a per-piece copper weight of 0.52 kg balance material cost and ease of inventory planning for maintenance teams, enabling predictable spares strategies and reducing downtime due to part shortages. Feature → Business Impact → Application: Integral punchings on busbars for a secure fit reduce the risk of loose connections, improving permit-to-operate times in highly regulated facilities.
Get a Quick Quote for a Rittal 9661150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9661150?
Enquire Now
FAQs
Installation involves aligning the E-Cu busbars with the integral punchings on the baying brackets, ensuring correct orientation to maintain conductor continuity. Tighten mounting screws to spec, verify electrical clearance, and check that the bracket sits flush against enclosure surfaces to avoid vibration or loosening during operation.
Key specs: material E-Cu, fits busbars 80x10 mm, length 88 mm, packs of 4 pieces, copper weight 0.52 kg per piece, total pack weight 3.08 kg, EAN 4028177494701, ETIM 9 EC002525, ECLASS 8.0 27409221, customs tariff 74198090.
Yes. The SV 9661.150 is designed to connect rectangular E-Cu busbars between enclosures in conjunction with PE/PEN combination angles, delivering reliable grounding paths and streamlined assembly in type-tested configurations.
The bracket is type-tested to IEC 61 439-1, supporting compliant configurations. It is cataloged with ETIM 9 (EC002525) and ECLASS 8.0 (27409221), facilitating standard-based procurement and cross-system compatibility.
The four-piece pack, with predictable copper weight and precise dimensions, reduces stocking complexity and downtime. The combination of E-Cu material and integral punchings supports secure, repeatable connections, speeding maintenance cycles and ensuring consistent electrical performance across enclosures.
