Rittal 9661180 SV Busbar E-Cu Copper Power EC002525
Part Number: 9661180
Quick Summary
SV Busbar E-Cu from Rittal is a copper busbar designed for direct installation in enclosures to distribute power. This solution addresses cramped panels and inconsistent grounding by providing a robust 10 mm x 80 mm cross-section with Ø14 mm mounting holes for quick, reliable mounting. It aligns with ETIM 9 EC002525 and ECLASS 8.0 27400605 classifications, helping procurement systems standardize parts while ensuring fit with PE/PEN configurations. The combination of high conductivity copper and precise dimensions delivers long-term reliability, while the compact footprint supports scalable panel design and easier serviceability for growing automation projects.
Product Information
Extended Description
9661180 Rittal: SV Busbar E-Cu, WH: 80x10 mm, L: 792mm, with integral holes Ø 14 mm
Article number
SV 9661.180
Product description
Suitable for direct installation in enclosures, busbar supports 9340.000/.010. 9340.004, 9342.014, 3052.000 and 3073.000. PE/PEN combinations in conjunction with PE/PEN combination angle and baying bracket E-Cu.
Material
E-Cu
Ø hole
14 mm
Dimensions
Length: 792 mm
To fit
Width: = 800 mm
Cross-section
10 mm x 80 mm
Packs of
2 pc(s).
Weight/pack
11.342 kg
Copper weight (kg per piece)
5.6
Customs tariff number
74071000
EAN
4028177494763
ETIM 9
EC002525
ECLASS 8.0
27400605
Product description
SV Busbar E-Cu, WH: 80x10 mm, L: 792mm, with integral holes Ø 14 mm
Feature → Business Impact → Application: The 10x80 mm E-Cu cross-section delivers a low-impedance power path, improving current distribution and reducing heat buildup inside enclosures; this translates to higher panel efficiency and lower maintenance costs in control cabinets. Application: use in direct enclosure installations for reliable power sharing alongside PE/PEN grounding and baying brackets. Feature → Business Impact → Application: Copper material (E-Cu) provides superior conductivity and corrosion resistance, extending service life in harsh industrial environments; this minimizes replacement cycles and improves total cost of ownership. Application: ideal for critical control panels and switchgear where stable grounding and high reliability are required. Feature → Business Impact → Application: Ø14 mm mounting holes and precise 792 mm length with 800 mm width fit standard 800 mm enclosures, enabling fast installation and consistent engineering drawings. Application: supports rapid retrofit projects and standardized enclosure builds. Feature → Business Impact → Application: Pack of two pieces with copper weight 5.6 kg per piece simplifies logistics and stocking; this reduces procurement complexity and downtime during upgrades. Application: suitable for multi-bay installations and modular panel designs. Feature → Business Impact → Application: Direct compatibility with PE/PEN combination angle and baying bracket E-Cu reduces assembly steps and risk of grounding faults. Application: accelerates wiring tasks in control panels and reduces field errors.
Get a Quick Quote for a Rittal 9661180
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9661180?
Enquire Now
FAQs
The SV Busbar E-Cu is designed for direct installation in standard enclosures and complements Rittal grounding schemes. It fits enclosures up to 800 mm in width and 792 mm in length, with Ø14 mm mounting holes for alignment with 9340.000/.010, 9340.004, 9342.014, and related brackets, simplifying retrofit and expansion projects.
Model 9661180 features a 10x80 mm copper cross-section, a 792 mm length, and Ø14 mm mounting holes. Each piece weighs about 5.6 kg of copper and is supplied as two pieces per pack. The E-Cu material provides high conductivity for efficient power distribution in enclosure-based systems.

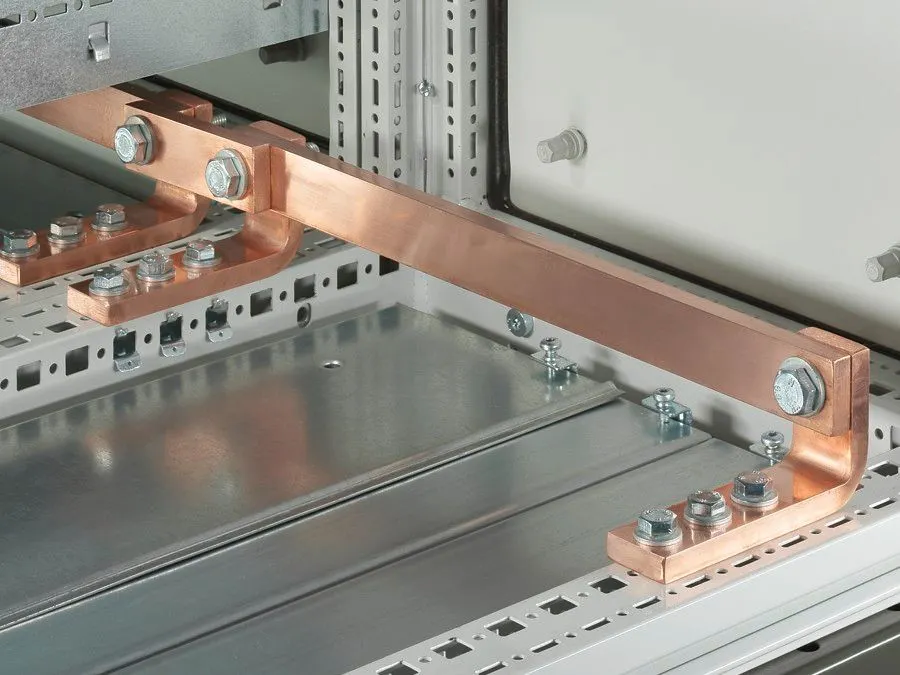

It is designed for direct integration with PE/PEN combinations using the PE/PEN combination angle and baying bracket E-Cu. This arrangement reduces wiring complexity, ensures reliable earth continuity, and shortens installation time while maintaining robust mechanical stability in control panels.
The product data lists ETIM 9 code EC002525 and ECLASS 8.0 code 27400605, which aid procurement systems in classifying and selecting parts. Explicit CE, SIL, or IP ratings are not shown in the provided data, so verify certification needs with the supplier for regulatory compliance in your region.
Copper busbars offer low maintenance and long service life due to solid E-Cu construction and robust mounting. Packaged as two pieces, they simplify stocking and downtime during enclosure upgrades, delivering faster project execution and a lower total cost of ownership in medium to high-availability automation environments.
