Rittal 9661230 PE/PEN combination - Icw 30 kA
Part Number: 9661230
Quick Summary
Rittal 9661230 PE/PEN combination is a pre-assembled busbar solution for PE/PEN distribution in enclosure systems. For engineers facing lengthy, error-prone wiring inside cabinets, this kit reduces assembly steps and simplifies field installation. It is type-tested to IEC 61 439-1 and supports high short-circuit capability (Icw 30 kA, 1 s), with robust E-Cu copper busbars. By offering enclosure-width matched angles and baying brackets, it accelerates production and lowers total cost of ownership. The supply includes assembly parts ready for immediate installation, avoiding custom fabrication and reducing on-site risk. This makes it a compelling choice for panel builders, system integrators, and service teams seeking consistent, compliant grounding solutions.
Product Information
Extended Description

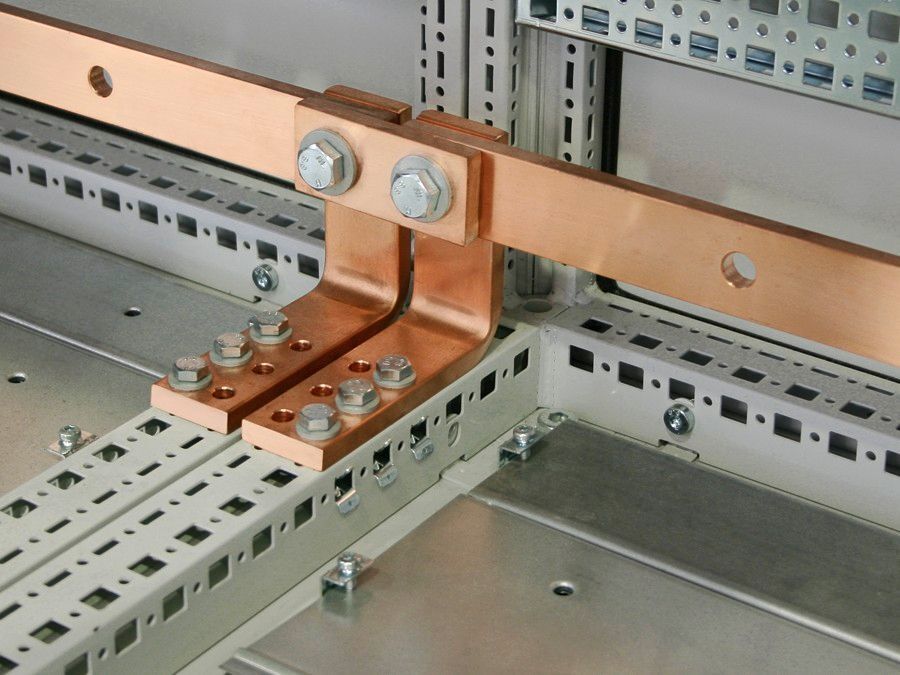

9661230 Rittal: SV PE/PEN combination angle E-Cu, WH: 30x10 mm
Article number
SV 9661.230
Product description
The PE/PEN combination, comprising busbars, combination angles and baying brackets, supports type-tested configurations as per IEC 61 439-1.
Benefits
Thanks to the pre-assembled combination angles, baying brackets and busbars customised to match the enclosure width, assembly is time-saving with cost reduction
Applications
Form 2-4
Material
E-Cu
Supply includes
Assembly parts
Approved short-circuit current capability
Icw|30|kA, 1 sec.
To fit busbars
Busbar E-Cu with integral punchings
OUT_CROSS_SECTION_COL_SM
30 ‐ 10 mm
To fit busbars
Width: 30 | Height: 10 mm
Packs of
4 pc(s).
Weight/pack
2.176 kg
Copper weight (kg per piece)
0.408
Customs tariff number
74198090
EAN
4028177546653
ETIM 9
EC002525
ECLASS 8.0
27400605
Product description
SV PE/PEN combination angle E-Cu, WH: 30x10 mm
Feature: The PE/PEN combination kit includes busbars, combination angles, and baying brackets pre-assembled to match enclosure widths. Business Impact: installation time is reduced and field wiring errors are minimized because critical wiring access is ready to mount. Application: Form 2-4 enclosures where a precise, compliant PE/PEN distribution layout is essential. Feature: Copper busbars use electrolytic copper (E-Cu) with integral punchings, ensuring robust, low-resistance current paths. Business Impact: improved conductivity translates to reduced voltage drop and enhanced fault clearance reliability in high-demand circuits. Application: PE/PEN combinations inside compact enclosures where space efficiency matters. Feature: High short-circuit rating Icw 30 kA, 1 s provides strong fault-current capability. Business Impact: increases safety margin and supports compliance with enclosure standards during fault conditions. Application: critical for metal-enclosed switchgear and distribution assemblies requiring dependable short-circuit performance. Feature: Bundled packaging includes 4 packs per set; weight per pack 2.176 kg; copper weight per piece 0.408 kg. Business Impact: simplifies logistics, forecasting, and on-site handling, reducing inventory errors. Application: procurement and stocking for standard enclosure families across projects. Feature: Type-tested configurations per IEC 61 439-1 with to-fit busbars and integrated punchings. Business Impact: provides documented compliance and reduces rework during audits. Application: suitable for routine deployment in compliant control cabinet builds and modular subsystems.
