Rittal 9661235 PE/PEN angle for IEC 61 439-1
Part Number: 9661235
Quick Summary
Rittal 9661235 PE/PEN angle assembly provides safe, compliant busbar connections for enclosure power distribution. Installers often struggle with time-consuming on-site assembly and compatibility gaps across enclosure widths. It supports IEC 61 439-1 type-tested configurations with Icw 18 kA for 1 s, and aligns with ETIM 9 EC002525 and ECLASS 8.0 27400605 data standards. By pre-assembling angles, baying brackets, and busbars matched to enclosure width, this solution delivers faster fabrication, reduces field errors, and lowers total project costs, while preserving reliability for panel builders and system integrators.
Product Information
Extended Description

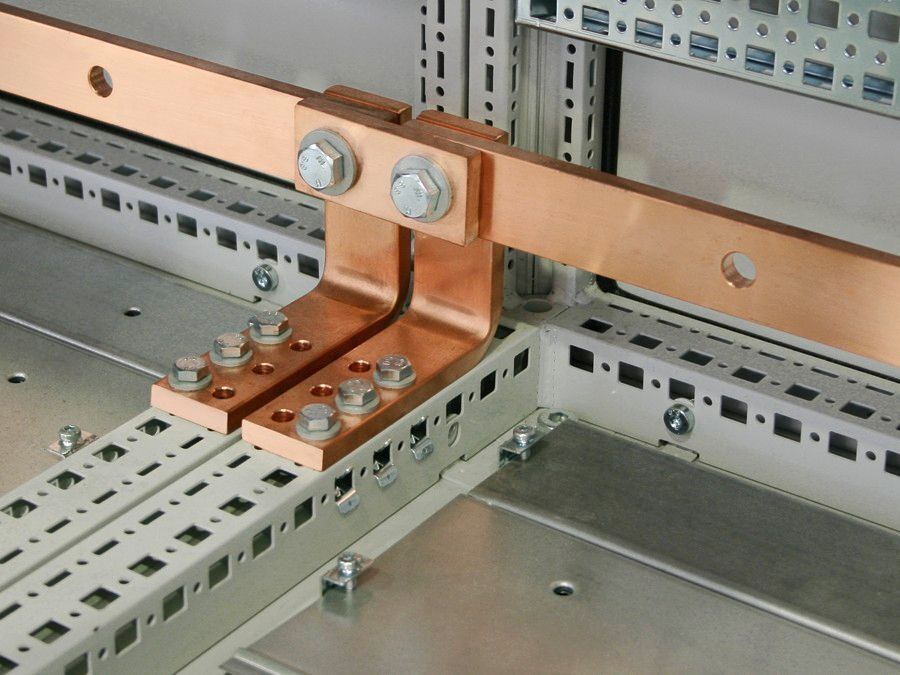

9661235 Rittal: SV PE/PEN combination angle E-Cu, WH: 30x5 mm
Article number
SV 9661.235
Product description
The PE/PEN combination, comprising busbars, combination angles and baying brackets, supports type-tested configurations as per IEC 61 439-1.
Benefits
Thanks to the pre-assembled combination angles, baying brackets and busbars customised to match the enclosure width, assembly is time-saving with cost reduction
Applications
Form 2-4
Material
E-Cu
Supply includes
Assembly parts
Approved short-circuit current capability
Icw|18|kA, 1 sec.
To fit busbars
Busbar E-Cu with integral punchings
OUT_CROSS_SECTION_COL_SM
30 ‐ 5 mm
To fit busbars
Width: 30 | Height: 5 mm
Packs of
4 pc(s).
Weight/pack
1.256 kg
Copper weight (kg per piece)
0.198
Customs tariff number
74198090
EAN
4028177546677
ETIM 9
EC002525
ECLASS 8.0
27400605
Product description
SV PE/PEN combination angle E-Cu, WH: 30x5 mm
Feature: Pre-assembled PE/PEN combination with busbars, combination angles and baying brackets. Business Impact: Time savings during panel fabrication and installation, with reduced risk of misaligned components. Application: Form 2-4 enclosures where a reliable, space-efficient PE/PEN busbar system is required. Long-tail keywords: PE/PEN busbar system, pre-assembled enclosure accessories, form 2-4 configurations. Feature: Icw 18 kA, 1 s short-circuit capability. Business Impact: Enhanced electrical safety and compliance for high-energy faults; design assurance for distribution panels. Application: Cabinets in industrial controls and power distribution. Long-tail keywords: short-circuit current rating, high-energy fault protection, IEC type-tested configurations. Feature: E-Cu busbars with integral punchings. Business Impact: Low contact resistance and robust mechanical connection, improving overall efficiency and reliability. Application: Barrier-free, durable terminations inside enclosures. Long-tail keywords: copper busbars, integral punchings, low contact resistance. Feature: Packs of 4 pieces; copper weight 0.198 kg per piece; weight per pack 1.256 kg. Business Impact: Easier inventory planning, reduced shipping and handling costs, simpler logistics. Application: Stocking in procurement and assembly lines. Long-tail keywords: packs of busbars, copper weight per piece, shipment efficiency. Feature: To fit busbars Width 30 mm Height 5 mm; supply includes assembly parts. Business Impact: Precise fit and fewer on-site adjustments; streamlined bill of materials and faster commissioning. Application: Enclosure width planning and standardization. Long-tail keywords: 30x5 mm cross-section, enclosure width matching, assembly parts supplied.
Get a Quick Quote for a Rittal 9661235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9661235?
Enquire Now
FAQs
The SV 9661.235 arrives as a pre-assembled PE/PEN busbar system with integrated combination angles and baying brackets, sized for Form 2-4 enclosures. Install by aligning with enclosure mounting points, securing baying brackets, and connecting the E-Cu busbars with integral punchings to the busbar stubs. The 30x5 mm cross-section matches standard enclosure ports, reducing on-site cutting and adjustments.
This PE/PEN angle carries an approved short-circuit current capability of Icw 18 kA for 1 second, indicating it can safely withstand high-energy fault conditions without deforming or compromising connections. For panel builders, this ensures reliable protection during faults and simplifies downstream protective coordination within IEC 61 439-1 compliant configurations.
Yes. The assembly is designed to fit busbars with a 30 mm width and 5 mm height (30x5 mm), using E-Cu busbars with integral punchings. It ships as four pre-sized parts per pack, simplifying procurement and guaranteeing consistent fit across standard Rittal enclosures, which reduces misfits and rework.
The product supports IEC 61 439-1 type-tested configurations, ensuring reliable electrical performance in distribution panels. It aligns with data-standards ETIM 9 EC002525 and ECLASS 8.0 27400605 for procurement systems, and is designed to integrate seamlessly with standard Rittal enclosure accessories, simplifying certification workflows and supplier data management.
Using the pre-assembled PE/PEN angle reduces field assembly time, minimizes human error, and lowers on-site labor costs. With four-piece packs, copper weight of 0.198 kg per piece, and total pack weight of 1.256 kg, inventory handling is simplified and project timelines are tightened, delivering tangible cost savings over traditional on-site busbar assembly.
