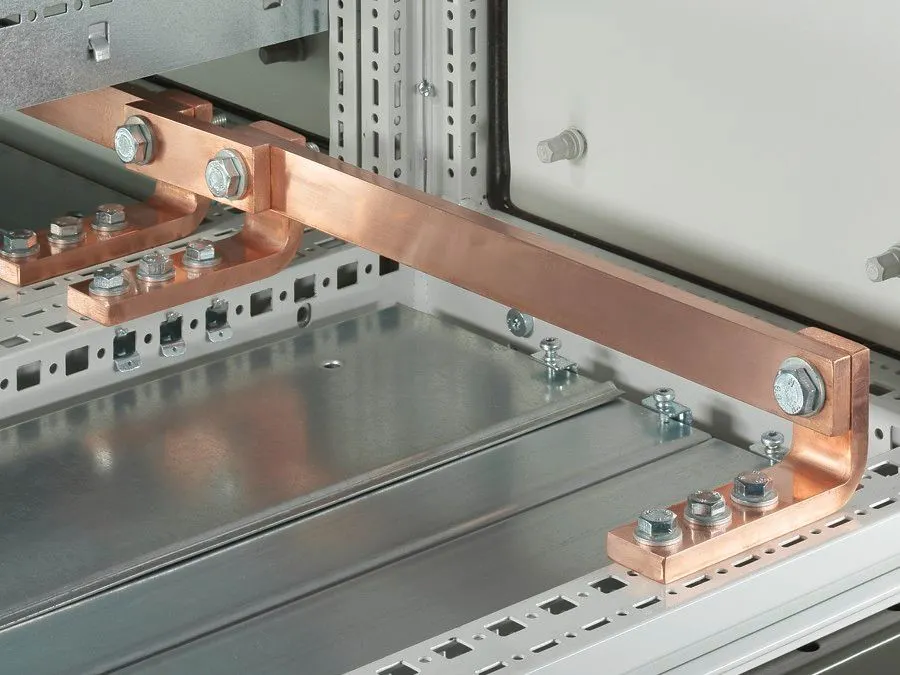

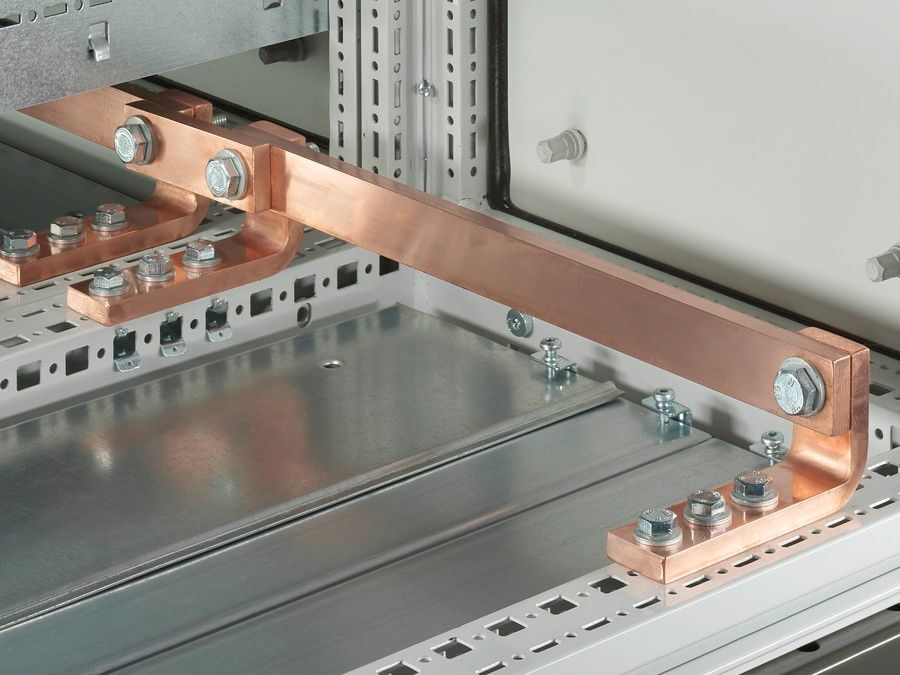

Rittal SV 9661.320 Busbar E-Cu 30x10 - 1165 mm EC002525
Part Number: 9661320
Quick Summary
Rittal SV 9661.320 busbar enables direct enclosure installation for busbar supports and PE/PEN integration. Engineers often struggle with misaligned copper bars, mounting challenges, and grounding gaps, which slow panel builds. This solution aligns with ETIM EC002525 and ECLASS 27400605 classifications to ensure accurate cataloging and procurement while using high-conductivity E-Cu. By delivering a precise 30x10 mm cross-section, a 1,165 mm length, and built-in Ø 11 mm holes, it supports reliable electrical paths. For panel builders and integrators, it combines robust material with straightforward compatibility, offering faster assemblies, reduced downtime, and consistent grounding performance across enclosures and distribution cabinets.
Product Information
Extended Description
9661320 Rittal: SV Busbar E-Cu, WH: 30x10 mm, L: 1165 mm, with integral holes Ø 11 mm
Article number
SV 9661.320
Product description
Suitable for direct installation in enclosures, busbar supports 9340.000/.010. 9340.004, 9342.014, 3052.000 and 3073.000. PE/PEN combinations in conjunction with PE/PEN combination angle and baying bracket E-Cu.
Material
E-Cu
Ø hole
11 mm
Dimensions
Length: 1,165 mm
To fit
Width: = 1,200 mm
Cross-section
10 mm x 30 mm
Packs of
2 pc(s).
Weight/pack
6.328 kg
Copper weight (kg per piece)
3.13
Customs tariff number
74071000
EAN
4028177546752
ETIM 9
EC002525
ECLASS 8.0
27400605
Product description
SV Busbar E-Cu, WH: 30x10 mm, L: 1165 mm, with integral holes Ø 11 mm
Feature: E-Cu copper offers high conductivity and mechanical stability. Business Impact: Lower resistance reduces heat and improves current-carrying capacity in power paths. Application: Ideal for direct enclosure installations with a 10x30 mm cross-section and 1,165 mm length to fit standard cabinet footprints. Feature: Integral Ø11 mm holes in the busbar. Business Impact: Facilitates quick alignment and fastening with standard mounting hardware, cutting installation time. Application: Use when mounting to enclosures, busbar supports, and PE/PEN brackets. Feature: Pack configuration of 2 pieces. Business Impact: Improves procurement efficiency and project planning, enabling bulk stocking and multi-panel deployment. Application: Suitable for larger installations or spares in service inventories. Feature: Compatibility with PE/PEN combination angles and baying brackets (E-Cu). Business Impact: Reduces install complexity and ensures reliable grounding connections, lowering commissioning risk. Application: Works with common Rittal enclosure accessories for fast, compliant setups. Feature: Documented classifications and standards (ETIM 9 EC002525; ECLASS 8.0 27400605). Business Impact: Aligns with ERP, purchasing catalogs, and supplier data quality requirements. Application: Ideal for procurement workflows and technical data management. Feature: Direct enclosure compatibility with listed supports (9340.000/.010, 9340.004, 9342.014, 3052.000, 3073.000). Business Impact: Streamlines integration with existing infrastructure, reducing engineering time. Application: Suitable for standard Rittal enclosure ecosystems and modular builds.
Get a Quick Quote for a Rittal 9661320
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9661320?
Enquire Now
FAQs
The SV 9661.320 is designed for direct installation in enclosures and is compatible with standard Rittal busbar supports 9340.000/.010, 9340.004, 9342.014, 3052.000, and 3073.000. Its 1,165 mm length and 10x30 mm cross-section are optimized for common cabinet widths, ensuring a seamless fit in most distribution enclosures.
Install the SV 9661.320 using PE/PEN combination angles and baying brackets made for E-Cu busbars. The Ø11 mm holes simplify alignment and fastening to enclosure walls or support rails, while the 1,165 mm length provides a stable current path across the panel. Ensure proper grounding connections to meet system grounding practices.
Key specs include material E-Cu, cross-section 10 mm by 30 mm, length 1,165 mm, mounting holes Ø 11 mm, weight about 3.13 kg per piece, and packs of 2. These values support predictable current paths and compatibility with standard enclosure components, aiding precise bill-of-materials and assembly planning.
Yes. The product is classified under ETIM 9 as EC002525 and ECLASS 8.0 as 27400605, which helps with cataloging, data synchronization, and procurement workflows. This alignment simplifies ERP integration, ensures consistent product data across systems, and improves searchability for specification-driven purchasing.
Copper busbars like the SV 9661.320 offer low electrical resistance, reducing heat generation and improving efficiency in high-current paths. Pack-of-two availability supports stocking and project scalability, minimizing downtime during replacements. Over the lifecycle, this translates to reliable grounding, longer service life, and lower operating costs for modular enclosure systems.
