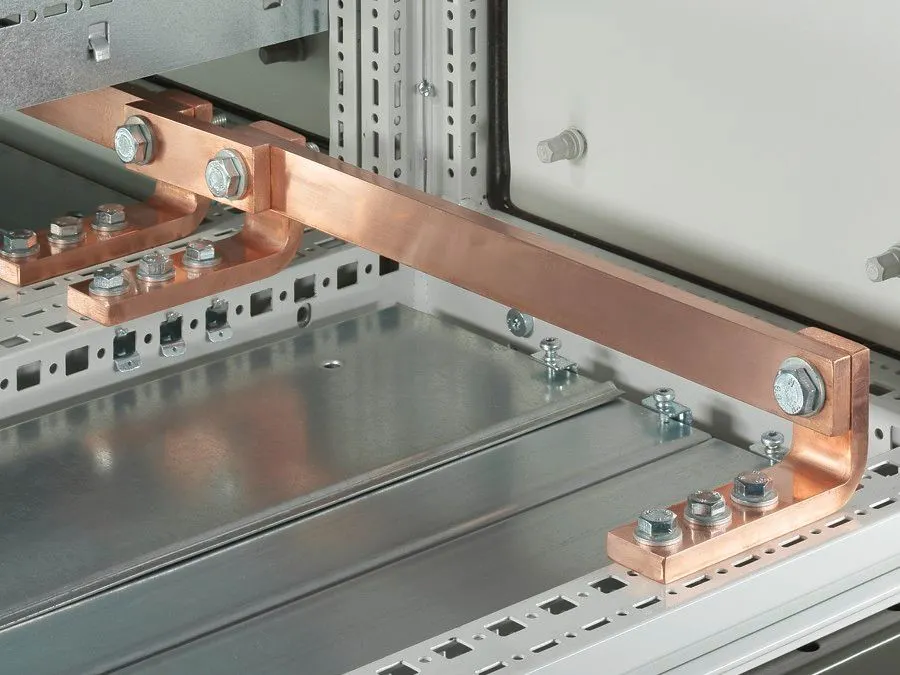

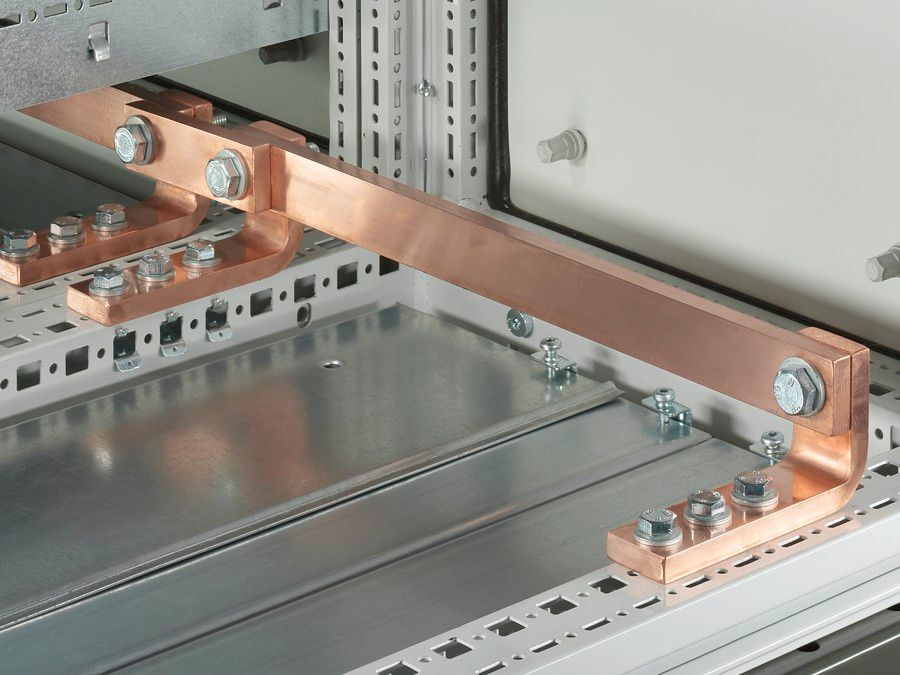

Rittal 9661325 Busbar E-Cu for Enclosures – Ø11 mm holes
Part Number: 9661325
Quick Summary
Rittal 9661325 is a busbar E-Cu designed for direct enclosure installation in electrical panels. Engineers often wrestle with achieving consistent copper weight and precise mounting in compact enclosures, which can impact reliability. This solution aligns with industry classifications such as ETIM 9 EC002525 and ECLASS 8.0 27400605, helping with parts standardization and procurement accuracy. For value, it supports robust current paths and repeatable assembly, while offering compatibility with PE/PEN configurations and standard enclosure widths, delivering tangible efficiency and reliability gains for panel builders and service teams.
Product Information
Extended Description
9661325 Rittal: SV Busbar E-Cu, WH: 30x5 mm, L: 1165 mm, with integral holes Ø 11 mm
Article number
SV 9661.325
Product description
Suitable for direct installation in enclosures, busbar supports 9340.000/.010. 9340.004, 9342.014, 3052.000 and 3073.000. PE/PEN combinations in conjunction with PE/PEN combination angle and baying bracket E-Cu.
Material
E-Cu
Ø hole
11 mm
Dimensions
Length: 1,165 mm
To fit
Width: = 1,200 mm
Cross-section
5 mm x 30 mm
Packs of
2 pc(s).
Weight/pack
3.232 kg
Copper weight (kg per piece)
1.565
Customs tariff number
74071000
EAN
4028177546950
ETIM 9
EC002525
ECLASS 8.0
27400605
Product description
SV Busbar E-Cu, WH: 30x5 mm, L: 1165 mm, with integral holes Ø 11 mm
Feature: Direct enclosure installation in standard panels → Business Impact: Reduces integration time and mounting errors by providing a ready-to-fit busbar that matches common enclosure standards → Application: Ideal for new builds and upgrades in 1200 mm wide enclosures. Long-tail keyword: direct enclosure installation. Feature: E-Cu material with 30x5 mm cross-section (5x30 mm) → Business Impact: Ensures high electrical conductivity and low resistance, improving overall circuit performance and thermal management in dense panels → Application: Critical for motor drives and protective networks. Feature: Length 1165 mm with 11 mm holes → Business Impact: Enables precise positioning and secure mounting with standard hardware, minimizing alignment issues during installation → Application: Used with PE/PEN combination angles and baying brackets. Feature: Packs of 2 pieces; weight per pack 3.232 kg; copper weight 1.565 kg per piece → Business Impact: Simplifies logistics and budgeting, improving inventory planning and reducing shipping costs per install → Application: Commonly stocked for quick replacement and scalable panel builds. Feature: Compatibility with busbar supports 9340.000/.010, 9340.004, 9342.014, 3052.000 and 3073.000, plus PE/PEN combinations → Business Impact: Streamlines retrofit projects and standardized enclosures, lowering install time and risk → Application: Ensures cohesive integration with Rittal mounting accessories. Feature: Regulatory alignment via ETIM and ECLASS classifications → Business Impact: Improves ERP/SCM traceability and supplier collaboration, reducing procurement cycle times → Application: Fits into standardized parts catalogs for electrical cabinets and electrical distribution boards.
Get a Quick Quote for a Rittal 9661325
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9661325?
Enquire Now
FAQs
To install the SV 9661.325 busbar, confirm the enclosure width of 1,200 mm, align the Ø11 mm mounting holes with the enclosure framework, and secure using compatible mounting hardware. Use the provided busbar supports where applicable and reference the PE/PEN combination guidance for safe, compliant wiring within the cabinet.
Key specs include material E-Cu, cross-section 5 mm x 30 mm, length 1,165 mm, holes Ø11 mm, packs of 2 pieces, copper weight 1.565 kg per piece, and pack weight 3.232 kg. The product is designed for direct enclosure installation and is compatible with standard mounting accessories.
Yes. The busbar description notes compatibility with PE/PEN combinations in conjunction with specific PE/PEN combination angles and baying brackets, facilitating compliant protective-earth wiring within enclosures and helping maintain proper grounding continuity.
This product references ETIM 9 EC002525 and ECLASS 8.0 27400605 as classifications, aiding procurement and cataloging. No CE, SIL, or IP rating is listed in the provided data; verify with supplier documentation for the exact compliance notes relevant to your application.
Benefits include improved electrical conductivity and lower resistance from high-purity copper, faster assembly due to direct enclosure installation, standardized dimensions for repeatable builds, and reduced risk from compatibility issues with mounting accessories, all contributing to shorter project timelines and lower maintenance costs over the system’s life.
