Rittal 9661340 Busbar E-Cu - 30x10, 365 mm Ø11
Part Number: 9661340
Quick Summary
Rittal 9661340 Busbar E-Cu is a copper busbar for direct enclosure installation and busbar supports. Engineers often face limited space and inconsistent current paths in panel builds, leading to voltage drop and longer assembly times. While this data sheet notes ETIM 9 EC002525 and ECLASS 8.0 27400605 classifications, it does not list CE or IP ratings. Designed for PE/PEN combinations and compatibility with baying brackets, it delivers predictable installation, enhanced reliability, and a clear path to compliant power distribution in industrial enclosures. The combination of precise 30x10 mm cross-section, 365 mm length, and robust copper construction supports efficient, scalable power layouts while reducing maintenance needs and inventory complexity.
Product Information
Extended Description
9661340 Rittal: SV Busbar E-Cu, WH: 30x10 mm, L: 365 mm, with integral holes Ø 11 mm
Article number
SV 9661.340
Product description

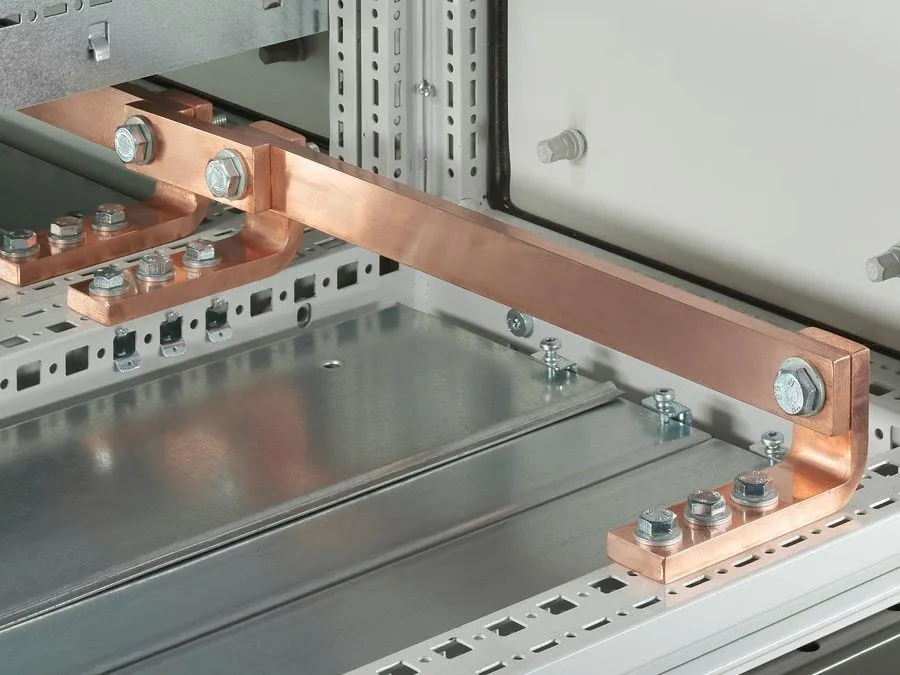

Suitable for direct installation in enclosures, busbar supports 9340.000/.010. 9340.004, 9342.014, 3052.000 and 3073.000. PE/PEN combinations in conjunction with PE/PEN combination angle and baying bracket E-Cu.
Material
E-Cu
Ø hole
11 mm
Dimensions
Length: 365 mm
To fit
Width: = 400 mm
Cross-section
10 mm x 30 mm
Packs of
2 pc(s).
Weight/pack
1.92 kg
Copper weight (kg per piece)
0.98
Customs tariff number
74071000
EAN
4028177546912
ETIM 9
EC002525
ECLASS 8.0
27400605
Product description
SV Busbar E-Cu, WH: 30x10 mm, L: 365 mm, with integral holes Ø 11 mm
Feature: E-Cu material with a 10 mm x 30 mm cross-section provides high conductivity and low resistance. Benefit: Improves current-carrying capacity and minimizes heat buildup, delivering measurable efficiency gains in dense panel layouts. Application: Ideal for enclosure backplanes and busbar supports where reliable copper pathways are critical. Feature: Length 365 mm and width designed to fit up to 400 mm assemblies with 11 mm holes. Benefit: Enables direct mounting in standard enclosures and reduces on-site fabrication, speeding installation and trimming project timelines. Application: Direct-in enclosure installs and modular busbar configurations. Feature: Pack of 2 pieces with a weight of 1.92 kg per pack and copper weight 0.98 kg per piece. Benefit: Simplifies stocking, improves predictability in BOMs, and lowers total cost of ownership through bulk packaging. Application: Stocking for maintenance cycles and spares in automation panels. Feature: PE/PEN compatibility and E-Cu baying bracket compatibility. Benefit: Streamlines integration with PE/PEN distribution schemes and reduces mounting complexity, lowering commissioning risk. Application: Power distribution in control cabinets that rely on PE/PEN coupling. Feature: ETIM 9 EC002525 and ECLASS 8.0 27400605 alignment. Benefit: Translates to standardized procurement data and faster sourcing across multiple supplier portals, reducing lead times. Application: cross-system cataloging and reduced procurement friction.
Get a Quick Quote for a Rittal 9661340
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9661340?
Enquire Now
FAQs
SV 9661.340 is designed for direct enclosure installation and works with common busbar supports. It fits width up to 400 mm, length 365 mm, and utilizes Ø11 mm holes for secure mounting. It is compatible with Rittal supports such as 9340.000/.010, 9340.004, 9342.014, 3052.000 and 3073.000, enabling straightforward integration into standard enclosure systems.
Key specs include material E-Cu, cross-section 10x30 mm, length 365 mm, width to fit 400 mm, Ø hole 11 mm, packs of 2 pieces, and copper weight 0.98 kg per piece (weight per pack 1.92 kg). EAN 4028177546912 and customs tariff 74071000 are also listed for procurement and customs purposes.
Yes. The SV 9661.340 is specified for direct installation in enclosures and for PE/PEN combinations when used with the PE/PEN combination angle and baying bracket E-Cu, facilitating compliant wiring layouts and reliable protective earth paths.
The product data references ETIM 9 EC002525 and ECLASS 8.0 27400605, providing standardized procurement identifiers. CE or IP ratings are not specified in the provided datasheet, so verify with purchasing or compliance teams if such ratings are required for your project.
Copper busbars from Rittal offer low resistance paths, reducing heat and electrical losses over time. The two-piece pack simplifies inventory and maintenance planning, lowering stocking costs and downtime during replacement. Their robust copper construction supports long service life in demanding industrial environments, contributing to lower lifecycle costs.
