Rittal SV 9661.345 Busbar E-Cu - Ø11 mm Holes
Part Number: 9661345
Quick Summary
Rittal SV 9661.345 Busbar E-Cu enables direct enclosure installation for reliable busbar wiring in compact control panels. In tight panels, traditional mounting can slow assembly and create heat or contact issues; this solution streamlines installation with built-in holes and a robust copper cross-section. This product aligns with industry standards EC002525 (ETIM 9) and 27400605 (ECLASS 8.0), supporting interoperability and procurement accuracy. By combining precise dimensions with copper efficiency, it delivers operational value for panel builders, OEMs, and electrical contractors. Secondary benefits include easy integration with enclosure accessories and improved traceability for maintenance and compliance workflows.
Product Information
Extended Description
9661345 Rittal: SV Busbar E-Cu, WH: 30x5 mm, L: 365 mm, with integral holes Ø 11 mm
Article number
SV 9661.345
Product description

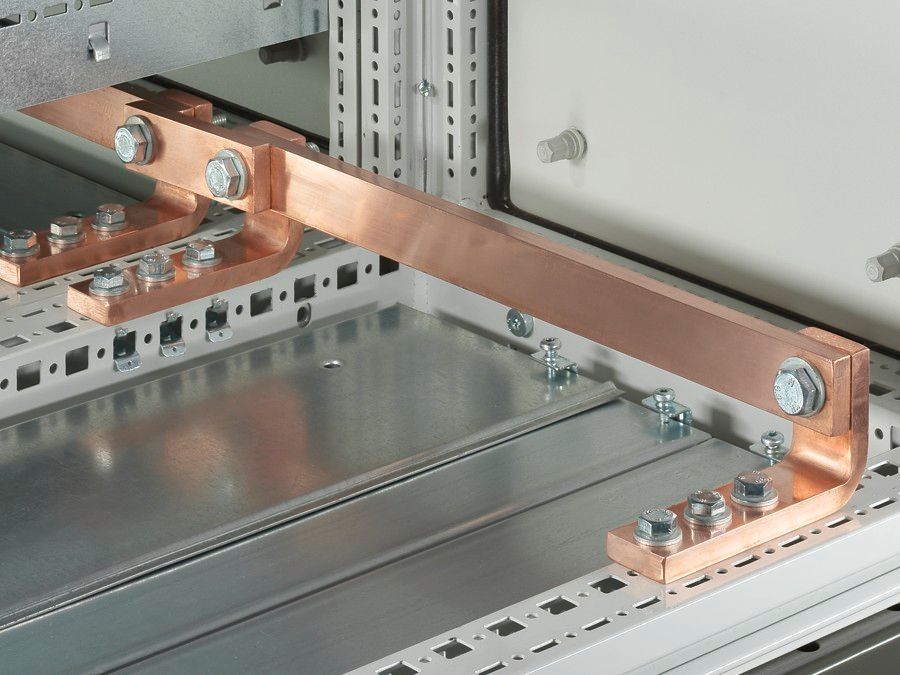

Suitable for direct installation in enclosures, busbar supports 9340.000/.010. 9340.004, 9342.014, 3052.000 and 3073.000. PE/PEN combinations in conjunction with PE/PEN combination angle and baying bracket E-Cu.
Material
E-Cu
Ø hole
11 mm
Dimensions
Length: 365 mm
To fit
Width: = 400 mm
Cross-section
5 mm x 30 mm
Packs of
2 pc(s).
Weight/pack
0.99 kg
Copper weight (kg per piece)
0.49
Customs tariff number
74071000
EAN
4028177546875
ETIM 9
EC002525
ECLASS 8.0
27400605
Product description
SV Busbar E-Cu, WH: 30x5 mm, L: 365 mm, with integral holes Ø 11 mm
Feature: E-Cu copper construction. Business Impact: Delivers high electrical conductivity with low resistance, improving overall system efficiency and reducing heat generation in confined spaces. Application: Ideal for enclosure-mounted busbars where reliable copper performance is critical in automation panels. Feature: WH 30x5 mm cross-section and L 365 mm. Business Impact: Standardized size supports consistent packing, easier stock management, and predictable impedance. Application: Fits common enclosure widths up to 400 mm, enabling scalable control panel designs. Feature: Integral Ø 11 mm holes. Business Impact: Simplifies mounting and alignment, reducing assembly time and risk of misalignment during baying or bracketing. Application: Direct installation in enclosures with compatible mounting schemes. Feature: Packs of 2 pieces; Weight/pack 0.99 kg; Copper weight 0.49 kg per piece. Business Impact: Optimized logistics and predictable procurement cycles, lowering handling costs and inventory variance. Application: Easy shipping planning and warehouse stocking for batch production. Feature: Compatibility with busbar supports and PE/PEN combinations (9340.000/.010, 9340.004, 9342.014, 3052.000, 3073.000) and E-Cu baying brackets. Business Impact: Streamlined installation and high interoperability across common Rittal enclosure accessories, reducing engineering risk. Application: Rapid integration into existing enclosures with known support hardware. Feature: Product description and standards alignment (ETIM EC002525, ECLASS 27400605). Business Impact: Ensures procurement clarity and supplier consistency, aiding compliance checks and interoperability in cross-site deployments. Application: Suitable for multinational projects requiring standardized data for ERP and MRO systems. These features collectively enable faster assembly, predictable performance, and lower lifecycle costs in industrial control environments.
Get a Quick Quote for a Rittal 9661345
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9661345?
Enquire Now
FAQs
When installing the SV 9661.345, ensure direct enclosure mounting using compatible busbar supports (9340.000/.010, 9340.004, 9342.014, 3052.000, 3073.000) and PE/PEN combinations. The Ø11 mm mounting holes aid precise alignment, while the 30x5 mm cross-section fits standard enclosure widths up to 400 mm, simplifying integration with existing baying brackets.
Key specifications include a 30x5 mm cross-section, 365 mm length, and 11 mm diameter holes. The product is supplied in packs of two, with a weight per pack of 0.99 kg and copper weight of 0.49 kg per piece, supporting consistent stocking and predictable handling during assembly.
Yes. The busbar is designed for PE/PEN combinations in conjunction with PE/PEN combination angle and baying bracket E-Cu, enabling flexible grounding and protection configurations within standard Rittal enclosure setups.
The product references ETIM 9 EC002525 and ECLASS 8.0 27400605 for classification and interoperability, ensuring consistent data across procurement systems and technical documentation. These standards support reliable cross-brand data exchange and component verification.
The SV 9661.345 offers high conductivity, robust copper construction, and straightforward mounting, which reduces assembly time and long-term thermal management issues. The standardized dimensions and hole pattern also simplify spare parts planning, improving uptime and lowering lifecycle costs in automation projects.
