Rittal SV 9661.350 Baying Bracket - IEC 61 439-1
Part Number: 9661350
Quick Summary
Rittal SV 9661.350 baying bracket is a PE/PEN busbar connector used to link rectangular E-Cu busbars between enclosures. In tight control panels, engineers often struggle with reliable junctions; this bracket provides a robust, corrosion‑resistant bridge. It is type-tested to IEC 61 439-1 and aligns with ETIM EC002525 and ECLASS 27409221 specifications for traceable compliance. Designed for assembly efficiency, the 95 mm length and 30×10 mm fit speed up installation while preserving electrical integrity. In addition to fast procurement, the 4-pack configuration supports scalable builds and predictable stocking in industrial environments. This translates to reduced downtime and simplified quality control for panel builders.
Product Information
Extended Description

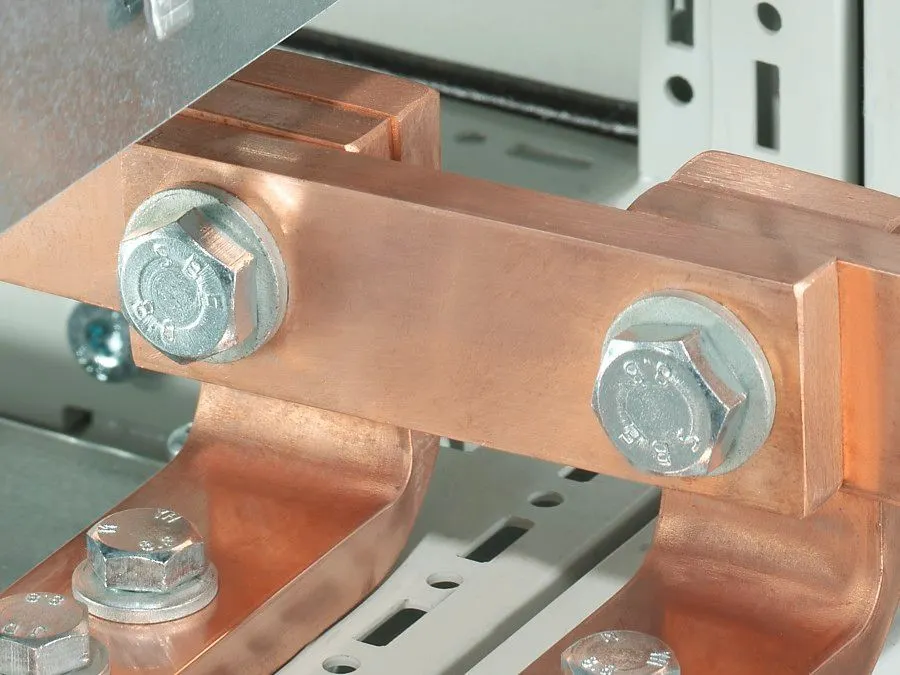

9661350 Rittal: SV Baying bracket E-Cu, L: 95 mm, for E-Cu 30x10 mm
Article number
SV 9661.350
Product description
For connecting rectangular busbars from enclosure to enclosure in conjunction with PE/PEN combination angles.
Material
E-Cu
To fit busbars
Busbar E-Cu with integral punchings
Dimensions
Length:Â 95 mm
To fit busbars
Width:Â 30 | Height:Â 10Â mm
Packs of
4 pc(s).
Weight/pack
0.976 kg
Copper weight (kg per piece)
0.255
Customs tariff number
74198090
EAN
4028177546691
ETIM 9
EC002525
ECLASS 8.0
27409221
Product description
SV Baying bracket E-Cu, L: 95 mm, for E-Cu 30x10 mm
Feature: PE/PEN busbar combination compatibility enables seamless integration across enclosure interfaces. Business impact: type-tested configurations to IEC 61 439-1 ensure compliant, reliable performance across modular switchgear. Application: ideal for control cabinets and data centers where enclosure-to-enclosure duty cycles are high. Feature: E-Cu material delivers high electrical conductivity and mechanical resilience. Business impact: improves current carrying capacity while minimizing thermal stress, reducing maintenance costs. Application: suitable for rectangular busbars 30x10 mm with integral punchings. Feature: 95 mm length with 30Ă—10 mm fitment matches common busbar geometry. Business impact: accelerates assembly, reduces misalignment risk, and supports standardized installation practices. Application: easy integration into existing Rittal PE/PEN configurations. Feature: Packs of 4 pieces with a total weight of 0.976 kg per pack (0.255 kg copper per piece). Business impact: simplifies stocking, logistics, and procurement planning for panel shops. Application: convenient kit for project repeats and scalable builds. Feature: For connecting rectangular busbars from enclosure to enclosure. Business impact: robust, continuous electrical paths that meet type-testing standards, boosting reliability during expansions. Application: essential in switchgear assemblies and modular control systems. Feature: Certifications and classifications (IEC 61 439-1, ETIM EC002525, ECLASS 27409221). Business impact: ensures traceability and compliance across procurement and QA processes. Application: procurement teams gain confidence with standardized parts for industrial installations.
Get a Quick Quote for a Rittal 9661350
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9661350?
Enquire Now
FAQs
SV 9661.350 is designed specifically for E-Cu busbars sized 30x10 mm. It uses a 95 mm baying bracket length and ships in a 4‑piece pack, ensuring straightforward integration with standard rectangular busbars and PE/PEN configurations. The design avoids misalignment and supports secure, type-tested connections within enclosure-to-enclosure runs.
The SV 9661.350 assembly is type-tested to IEC 61 439-1, enabling dependable performance in compliant switchgear installs. It also aligns with ETIM EC002525 and ECLASS 27409221 classifications, providing robust traceability for parts catalogs and procurement platforms.
The 95 mm length and 30Ă—10 mm fitment match common busbar geometries, enabling quick mounting and fewer adjustments. Pack of 4 reduces procurement handling, while the E-Cu material delivers reliable conductivity and durability, cutting installation time and post-installation maintenance in busy panel shops.
Yes. The SV 9661.350 is designed for use in modular busbar systems connecting enclosures, aligning with PE/PEN configurations. Its type-tested credentials and standard dimensions make it a robust choice for control cabinets, switchgear, and scalable data center installations.
Copper weight is 0.255 kg per piece, with packs weighing 0.976 kg total. This data supports accurate material planning and pricing, helping procurement teams forecast stock requirements, calculate thermal load considerations, and optimize reorder points for ongoing production lines.
