Rittal 9661355 SV Baying bracket E-Cu - IEC 61 439-1
Part Number: 9661355
Quick Summary
Rittal SV Baying bracket E-Cu is a busbar connector designed to join enclosure sections using PE/PEN configurations. Engineers often struggle to maintain electrical continuity across panels while keeping copper weight and installation time in check. The product is type-tested to IEC 61 439-1 and aligns with data standards such as ETIM 9 EC002525 and ECLASS 8.0 27409221 for reliable, structured procurement. By standardizing on this bracket, manufacturers can improve installation accuracy, ensure compliant busbar connections, and reduce total cost of ownership. When used with 95 mm E-Cu and 30x5 mm busbars, it enables scalable, robust power distribution in control cabinets and industrial enclosures.
Product Information
Extended Description

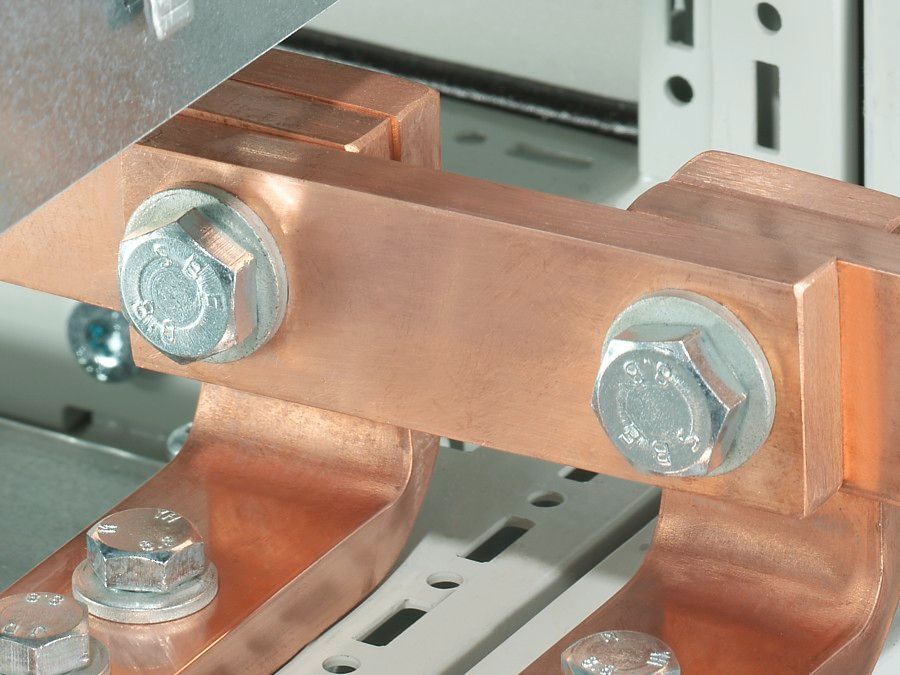

9661355 Rittal: SV Baying bracket E-Cu, L: 95 mm, for E-Cu 30x5 mm
Article number
SV 9661.355
Product description
For connecting rectangular busbars from enclosure to enclosure in conjunction with PE/PEN combination angles.
Material
E-Cu
To fit busbars
Busbar E-Cu with integral punchings
Dimensions
Length:Â 95 mm
To fit busbars
Width:Â 30 | Height:Â 5Â mm
Packs of
4 pc(s).
Weight/pack
0.52 kg
Copper weight (kg per piece)
0.128
Customs tariff number
74198090
EAN
4028177546707
ETIM 9
EC002525
ECLASS 8.0
27409221
Product description
SV Baying bracket E-Cu, L: 95 mm, for E-Cu 30x5 mm
Feature is E-Cu material designed for PE/PEN busbar configurations. Business impact is reliable electrical continuity and reduced contact resistance, enabling safer, longer-lasting panel connections. Application is across enclosure-to-enclosure busbar runs in machine rooms and control cabinets. Feature is 95 mm length and 30x5 mm fitment. Business impact is compatibility with standard rectangular busbars, enabling quick bolt-on installation in retrofit projects and new builds. Application is widespread in modular panel assemblies and distributed power architectures. Feature is packaging of 4 pieces per pack with a total weight of 0.52 kg per pack. Business impact is stocking efficiency and logistics cost reduction for high-volume projects. Application is multi-point baying in switchgear assemblies. Feature is type-testing to IEC 61 439-1, providing compliance and safety assurances. Application is in regulated environments where type-tested configurations are mandatory. Feature is copper weight of 0.128 kg per piece, aiding weight planning and material budgeting. Application is systems where copper usage must be optimized. This collection of attributes supports fast procurement through ETIM and ECLASS classifications, facilitating data-driven purchasing while preserving installation quality and reliability.
