Rittal SV 9661.360 Busbar E-Cu - 30x10mm, 565mm
Part Number: 9661360
Quick Summary
Rittal SV 9661.360 Busbar E-Cu is designed for direct installation in enclosures and robust busbar support for control panels. Engineers often struggle with space constraints and inconsistent copper conductors, which can compromise continuity and installation speed; this busbar delivers precise dimensions and integral mounting holes to streamline assembly. It aligns with ETIM 9 EC002525 and ECLASS 8.0 27400605 for reliable cataloging and interoperability, while the EAN 4028177546844 supports traceability across the supply chain. Designed for direct enclosure mounting with PE/PEN combinations and compatible baying brackets, it reduces installation steps and enables scalable, cost-efficient electrical distribution. The two-pack offering, with copper weight of 1.52 kg per piece, provides predictable performance and streamlined procurement for industrial environments.
Product Information
Extended Description

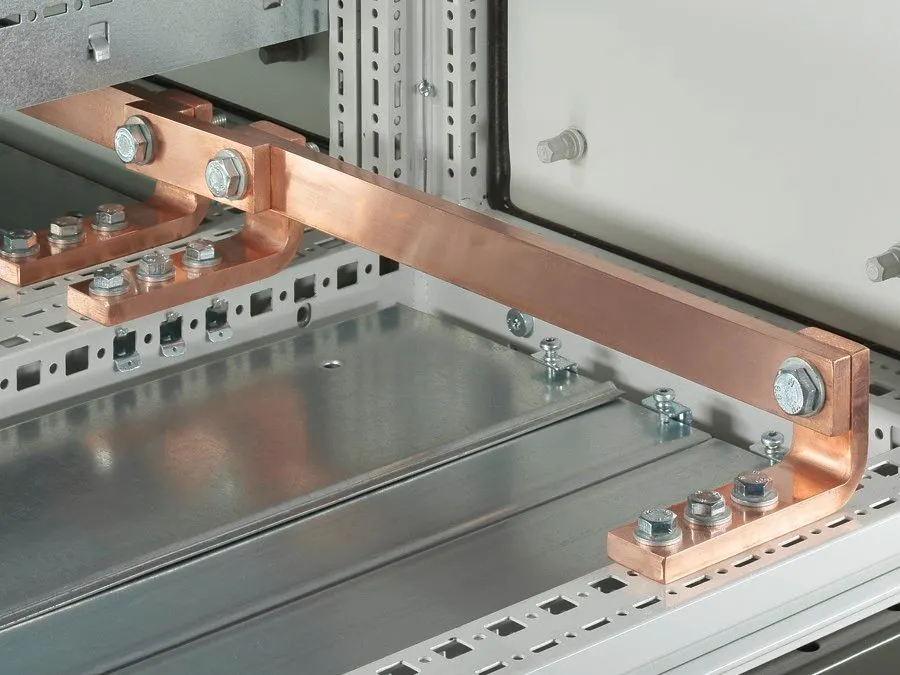

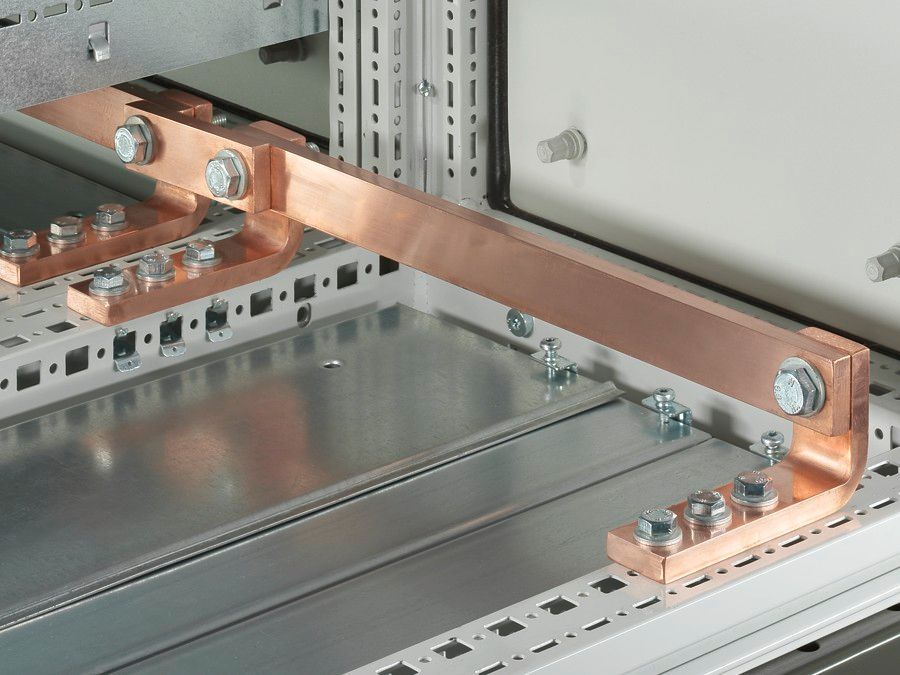

9661360 Rittal: SV Busbar E-Cu, WH: 30x10 mm, L: 565 mm, with integral holes Ø 11 mm
Article number
SV 9661.360
Product description
Suitable for direct installation in enclosures, busbar supports 9340.000/.010. 9340.004, 9342.014, 3052.000 and 3073.000. PE/PEN combinations in conjunction with PE/PEN combination angle and baying bracket E-Cu.
Material
E-Cu
Ø hole
11 mm
Dimensions
Length: 565 mm
To fit
Width: = 600 mm
Cross-section
10 mm x 30 mm
Packs of
2 pc(s).
Weight/pack
3.064 kg
Copper weight (kg per piece)
1.52
Customs tariff number
74071000
EAN
4028177546844
ETIM 9
EC002525
ECLASS 8.0
27400605
Product description
SV Busbar E-Cu, WH: 30x10 mm, L: 565 mm, with integral holes Ø 11 mm
Feature → Business Impact → Application: Direct enclosure installation with WH 30x10 mm cross-section ensures compact layouts while maintaining high current-carrying capacity, enabling smaller control cabinets and reduced enclosure depth. This translates to faster panel assembly and lower overall system footprint in automation lines and machine builds. Application: Control panels requiring reliable copper conductors and precise busbar alignment in compact enclosures. Feature → Business Impact → Application: Length of 565 mm and width fit tolerance (to fit width = 600 mm) delivers standardized mounting across common enclosures, minimizing custom fabrication and inventory variance in electrical rooms and switchgear. Application: Panel builders and OEMs aiming to meet tight space constraints. Feature → Business Impact → Application: Ø 11 mm integral holes and mounting compatibility with PE/PEN combination angles and baying brackets E-Cu reduce installation time and improve mechanical security, supporting vibration resistance in industrial environments. Application: Rittal enclosure setups with banked or bayed busbars. Feature → Business Impact → Application: Material and copper weight (E-Cu; 1.52 kg per piece; 3.064 kg per pack) provide robust conductivity and predictable thermal performance, enabling accurate current ratings and long-term reliability in automation systems. Application: High-demand DC/AC distribution rails in machinery and packaging lines. Feature → Business Impact → Application: ETIM 9 EC002525 and ECLASS 8.0 27400605 compatibility streamline procurement, reduce sourcing risk, and ensure interoperability with library parts in MRP and MES workflows. Application: Multi-supplier environments and large-scale industrial projects.
Get a Quick Quote for a Rittal 9661360
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9661360?
Enquire Now
FAQs
SV 9661.360 is designed for direct installation in Rittal enclosures with a 30x10 mm cross-section and 565 mm length, fitting a 600 mm width. It features Ø11 mm holes for secure mounting and is compatible with PE/PEN combinations and E-Cu baying brackets, reducing retrofit needs and simplifying integration with existing enclosure systems.
Key specs include material (E-Cu), cross-section (10x30 mm), length (565 mm), width fit (600 mm), hole size (Ø11 mm), packs per order (2 pc), weight per pack (3.064 kg), and copper weight per piece (1.52 kg). Also note the product number SV 9661.360 and EAN 4028177546844 for traceability.
Yes. The product is described as suitable for PE/PEN combinations in conjunction with PE/PEN combination angles and baying bracket E-Cu, enabling compliant and time-saving integration in control cabinets and power distribution schemes.
The busbar is referenced with ETIM 9 EC002525 and ECLASS 8.0 27400605 for cataloging and interoperability. It also has a dedicated EAN 4028177546844 for supply chain traceability and a precise product description to ensure accurate identification in procurement systems.
Using SV 9661.360 improves assembly speed, reduces enclosure footprint, and enhances reliability through standardized dimensions and robust copper conductors. The two-pack design supports scalable deployment across multiple cabinets, lowering stocking complexity and total cost of ownership in automation projects.
