Rittal SV 9661.365 Busbar E-Cu - 30x5, 565 mm Ø11
Part Number: 9661365
Quick Summary
Rittal SV 9661.365 Busbar E-Cu enables direct enclosure installation for compact power distribution. Engineers often struggle with precise hole patterns and exact lengths, which can cause installation delays and rework. This product aligns with ETIM EC002525 and ECLASS 27400605 standards, helping you meet industry data requirements and procurement specs, while maintaining traceability with EAN 4028177546837. The busbar's 30x5 mm cross-section and 565 mm length are designed for space-constrained cabinets, and its integral Ø11 mm holes simplify mounting. With direct enclosure mounting and compatibility with PE/PEN configurations, you gain faster assembly, lower accessory costs, and improved reliability across service life. This makes it a dependable choice for panel builders and system integrators seeking predictable installs.
Product Information
Extended Description
9661365 Rittal: SV Busbar E-Cu, WH: 30x5 mm, L: 565 mm, with integral holes Ø 11 mm
Article number
SV 9661.365
Product description

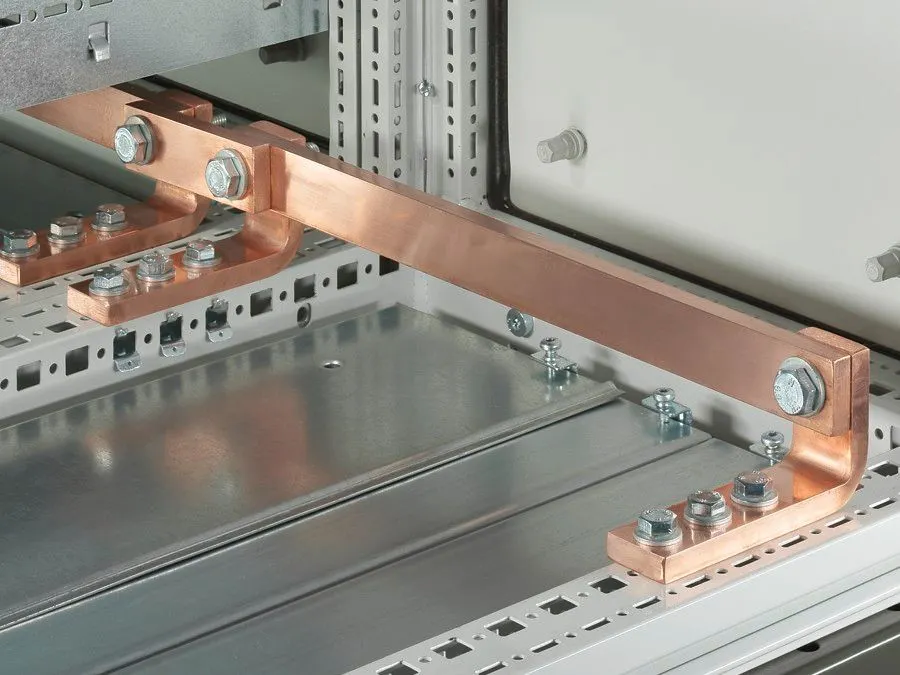

Suitable for direct installation in enclosures, busbar supports 9340.000/.010. 9340.004, 9342.014, 3052.000 and 3073.000. PE/PEN combinations in conjunction with PE/PEN combination angle and baying bracket E-Cu.
Material
E-Cu
Ø hole
11 mm
Dimensions
Length: 565 mm
To fit
Width: = 600 mm
Cross-section
5 mm x 30 mm
Packs of
2 pc(s).
Weight/pack
1.558 kg
Copper weight (kg per piece)
0.76
Customs tariff number
74071000
EAN
4028177546837
ETIM 9
EC002525
ECLASS 8.0
27400605
Product description
SV Busbar E-Cu, WH: 30x5 mm, L: 565 mm, with integral holes Ø 11 mm
Direct installation in enclosures is a core capability of SV Busbar E-Cu. The WH 30x5 mm cross-section and L565 mm length are tailored for cabinet power distribution, while integral Ø11 mm mounting holes support quick alignment with standard busbar supports and baying brackets. This feature reduces the need for field modification and ensures reliable electrical contact, improving both installation speed and long-term performance in industrial control panels. Compatibility with common enclosure footprints means SV 9661.365 fits enclosures with a maximum width of 600 mm and works with PE/PEN combinations when used with the corresponding PE/PEN angles and baying hardware. The combination simplifies conductor routing and protects grounded circuits, while maintaining compliance with industry standards. With copper weight of 0.76 kg per piece and a pack weight of 1.558 kg, the solution delivers a predictable material budget for large builds and minimizes variance in copper usage across projects. The 2-piece pack optimizes logistics and reduces the frequency of reorders on substantial installations. Documentation and data readiness are supported by ETIM 9 EC002525, ECLASS 8.0 27400605, and a valid EAN for full traceability. This combination improves warehouse planning, spare parts availability, and serviceability in ongoing maintenance programs.
Get a Quick Quote for a Rittal 9661365
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9661365?
Enquire Now
FAQs
Install directly into enclosures using the integral Ø11 mm mounting holes. Align with standard busbar supports 9340.000/.010, 9340.004, 9342.014, 3052.000 and 3073.000, then secure with appropriate baying brackets. The 30x5 mm cross-section and 565 mm length are designed to fit typical cabinet footprints while maintaining robust electrical contact for reliable operation.
Key specs include material E-Cu, cross-section 5x30 mm, length 565 mm, holes Ø11 mm, packs of 2 pieces, weight per piece 0.76 kg, and pack weight 1.558 kg. The product description notes direct installation in enclosures and compatibility with PE/PEN configurations when used with the appropriate E-Cu baying hardware.
Yes. SV 9661.365 supports PE/PEN combinations when used in conjunction with PE/PEN combination angles and baying brackets E-Cu, enabling safe and compliant grounding layouts within enclosure assemblies.
The product aligns with ETIM 9 EC002525 and ECLASS 8.0 27400605, ensuring consistent data classification for procurement, cataloging, and system integration. The EAN for traceability is 4028177546837, supporting efficient inventory and BOM management.
It reduces installation time through direct enclosure mounting, lowers accessory needs due to universal hole spacing, and provides predictable material costs with a defined copper weight per piece. The 2-pack packaging improves logistics and stock management, while standard classifications simplify sourcing and compliance checks.
