Rittal SV 9661.385 Busbar E-Cu - 11 mm Holes, 765 mm
Part Number: 9661385
Quick Summary
Rittal SV 9661.385 Busbar E-Cu provides a robust copper busbar solution for direct installation in electrical enclosures. Many installers face cluttered wiring and inconsistent mounting, which this design helps prevent with precise, pre-drilled 11 mm holes and standard 30x5 mm cross-section. The product aligns with industry classifications such as ETIM EC002525 and ECLASS 27400605, supporting accurate procurement and interoperability. Designed to work with PE/PEN configurations and enclosure busbar supports, it enables faster assembly, improved electrical performance, and lower maintenance as part of a reliable power-distribution strategy.
Product Information
Extended Description
9661385 Rittal: SV Busbar E-Cu, WH: 30x5 mm, L: 765 mm, with integral holes Ø 11 mm
Article number
SV 9661.385
Product description

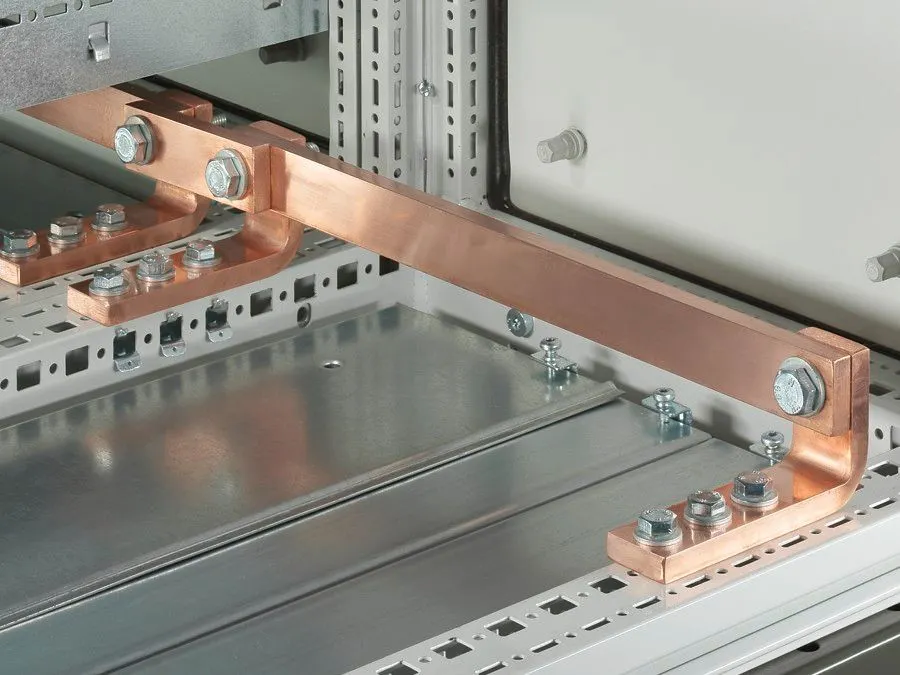

Suitable for direct installation in enclosures, busbar supports 9340.000/.010. 9340.004, 9342.014, 3052.000 and 3073.000. PE/PEN combinations in conjunction with PE/PEN combination angle and baying bracket E-Cu.
Material
E-Cu
Ø hole
11 mm
Dimensions
Length: 765 mm
To fit
Width: = 800 mm
Cross-section
5 mm x 30 mm
Packs of
2 pc(s).
Weight/pack
2.13 kg
Copper weight (kg per piece)
1.03
Customs tariff number
74071000
EAN
4028177546790
ETIM 9
EC002525
ECLASS 8.0
27400605
Product description
SV Busbar E-Cu, WH: 30x5 mm, L: 765 mm, with integral holes Ø 11 mm
Feature: E-Cu copper with a 5 mm x 30 mm cross-section delivers high conductivity and durable performance in demanding enclosure environments. Business Impact: reduced copper losses and stable thermal behavior translate to higher efficiency and lower operating costs. Application: ideal for centralized distribution in industrial control cabinets and panel boards. Feature: Length 765 mm fits a typical 800 mm enclosure width, minimizing the number of joints and simplifying routing. Business Impact: faster installation and fewer potential failure points, improving project timelines. Application: suitable for new builds and retrofits where space is constrained. Feature: Integral Ø 11 mm holes enable straightforward mounting with standard hardware. Business Impact: reduces assembly time and avoids custom fabrication. Application: direct enclosure mounting and alignment with PE/PEN configurations. Feature: Packs of 2 with a total weight of 2.13 kg per pack (1.03 kg per piece) streamline procurement and inventory control. Business Impact: lower stocking costs and easier logistics. Application: procurement planning for panel builders and maintenance teams. Feature: PE/PEN compatibility and E-Cu material support protective conductor configurations safely within enclosure systems. Business Impact: enhances electrical safety and compliance while preserving uptime. Application: installations requiring PE/PEN distributions in conjunction with angle and baying brackets. Feature: Clear classifications ETIM 9 EC002525 and ECLASS 8.0 27400605 facilitate cataloging and ERP integration. Business Impact: smoother procurement workflows and reduced mis-picks. Application: ERP, e-procurement, and asset management for industrial facilities.
Get a Quick Quote for a Rittal 9661385
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9661385?
Enquire Now
FAQs
SV 9661.385 is designed for direct installation in electrical enclosures and works with standard busbar supports. It is compatible with enclosure configurations that utilize supports such as 9340.000/.010, 9340.004, 9342.014, 3052.000 and 3073.000, and it supports PE/PEN combinations when used with the appropriate angle and baying bracket E-Cu.
Key specs include a copper E-Cu cross-section of 5 mm x 30 mm, length of 765 mm, and mounting holes of 11 mm diameter. Material is E-Cu, with packs of 2 pieces per package and a weight of 2.13 kg per pack (1.03 kg per piece). The product is described as SV 9661.385 with a 30x5 mm cross-section and 765 mm length.
The busbar is specified to be suitable for PE/PEN combinations in conjunction with PE/PEN combination angles and baying brackets E-Cu, enabling safe and compliant protective conductor distribution within enclosures. This supports standardized wiring layouts and reduces mounting complexity in mixed conductor configurations.
The provided data includes ETIM 9 classification EC002525 and ECLASS 8.0 27400605, which support cataloging and procurement systems. There is no explicit CE, SIL, or IP certification data in the supplied dataset, so rely on standard product documentation for those confirmations.
The SV 9661.385 offers straightforward installation due to predrilled holes, a compatible 30x5 mm cross-section, and a 765 mm length that fits typical 800 mm-wide enclosures. The 2-piece pack and 11 mm holes reduce mounting time and hardware needs, which translates to faster project delivery, easier maintenance, and improved inventory management for panel builders and industrial facilities.
