Rittal SV 9665.760 Cable Entry Gland - IP 55 Insulating
Part Number: 9665760
Manufacturer
Rittal
Part number
9665760
Alt Part Number
SV 9665.760
Quick Summary
SV 9665.760 cable entry gland from Rittal provides secure cable entry and sealing for roof plates in industrial enclosures. Traditional roof entries often leak or shift under temperature swings, leading to moisture ingress and costly maintenance. With IP 55 protection and a clearly defined knockout configuration, it helps maintain enclosure integrity across changing conditions. By combining reliable sealing with easy installation, it reduces labor time and supports durable, compliant electrical infrastructure. The compact 250 mm by 160 mm footprint suits standard roof plates, and the supply includes a sealing element for immediate use. Engineers benefit from defined material and color (insulating material, RAL 7035) for clear identification and safety.
Product Information
Extended Description

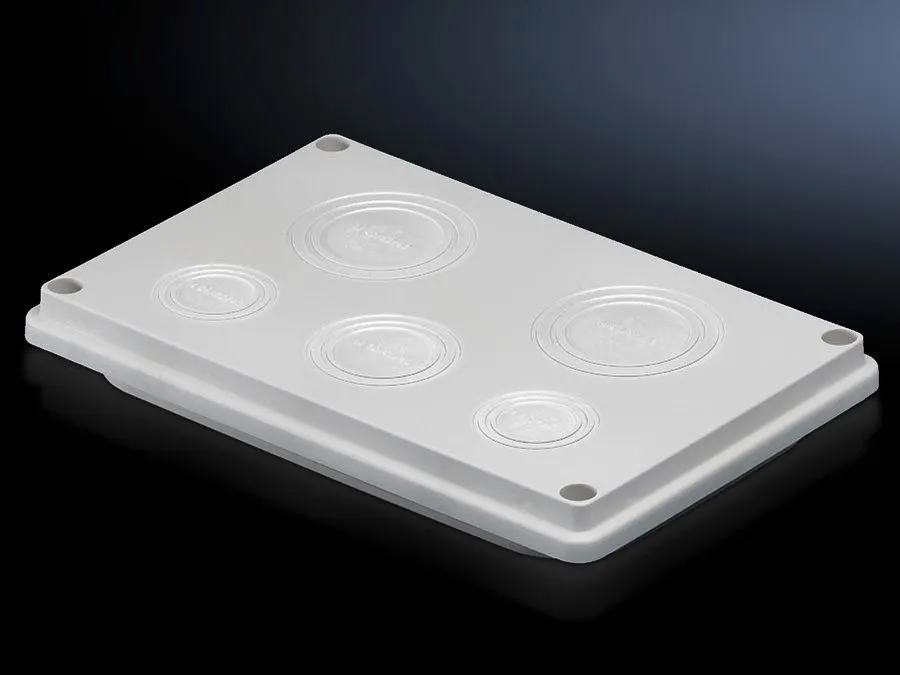

9665760 Rittal: SV Cable entry gland, 2xM25/32/40, 1xM32/40/50, 2xM40/50/63, insulating material
Article number
SV 9665.760
Design
2 x M25/32/40, 1 x M32/40/50, 2 x M40/50/63
Product description
For simple, secure cable entry in the roof zone.
Material
Insulating material
Colour
RAL 7035
Supply includes
Seal included
No. of metric knockouts
2 x M25/M32/M40 | 1 x M32/M40/M50 | 2 x M40/M50/M63
Dimensions
Width: 250 mm | Depth: 160 mm
IP protection category to IEC 60 529
IP 55
Packs of
1 pc(s).
Weight/pack
0.26 kg
Customs tariff number
73269098
EAN
4028177382459
ETIM 9
EC002525
ECLASS 8.0
27142421
Product description
SV Cable entry gland, 2xM25/32/40, 1xM32/40/50, 2xM40/50/63, insulating material
Feature: Versatile knockouts and gasketed design for flexible cable routing across roof entries. Business Impact: Reduces need for multiple gland variants, shortening installation time and minimizing field fittings. Application: Ideal for Rittal enclosure roof zones where multiple cable sizes must pass through a single entry point. Feature: IP 55 protection and seal-included design. Business Impact: Delivers dependable ingress protection against dust and water, lowering maintenance costs and extending enclosure life. Application: Outdoor or harsh indoor environments where seals face temperature and moisture cycling. Feature: Insulating material and color coding (RAL 7035). Business Impact: Improves electrical safety and quick visual identification, supporting safer, faster commissioning. Application: Electrical cabinets with strict safety and labeling requirements. Feature: Defined knockouts (2x M25/32/40, 1x M32/40/50, 2x M40/50/63). Business Impact: Enables precise cable entry planning, reduces resealing errors, and supports scalable installations. Application: Roof-entry glands for varied conductor sizes requiring reliable strain relief. Feature: Dimensions Width 250 mm | Depth 160 mm and weight 0.26 kg per pack. Business Impact: Fits standard roof plates and simplifies logistics with lightweight handling. Application: Field installations where weight and space constraints matter.
Get a Quick Quote for a Rittal 9665760
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9665760?
Enquire Now
FAQs
To install, align the gland over the roof-plate knockout pattern (2x M25/32/40, 1x M32/40/50, 2x M40/50/63), place the sealing element, and secure with appropriate fasteners. The gasket is included to ensure IP 55 sealing, and the waterproofing membrane accommodates multiple conductor sizes for a clean, reliable seal during commissioning and ongoing operation.
Key specs include 2x M25/32/40, 1x M32/40/50, 2x M40/50/63 knockouts, insulating material, and IP 55 protection. The dimensions are 250 mm wide and 160 mm deep, with a pack weight of 0.26 kg. These features collectively deliver robust ingress protection, weather resistance, and ease of handling during installation and maintenance.
Yes. The SV 9665.760 is designed for roof-entry sealing with IP 55 protection, protecting against dust and moisture in typical outdoor and harsh indoor environments. The insulating material adds electrical safety, and the included seal simplifies outdoor or semi-exposed installations prone to temperature and humidity fluctuations.
The gland provides IP 55 protection per IEC standards and aligns with standard classifications such as ETIM EC002525 and ECLASS 27142421 for procurement and cataloging. While CE compliance is a common expectation for enclosure components, confirm project-specific labeling requirements with your compliance team for complete alignment.
The gland reduces field labor through a preconfigured knockout pattern and seal, minimizes the risk of moisture ingress, and shortens commissioning time. Its insulating material enhances electrical safety, while the compact footprint and lightweight design streamline logistics, inventory control, and on-site installation for enclosure projects.
