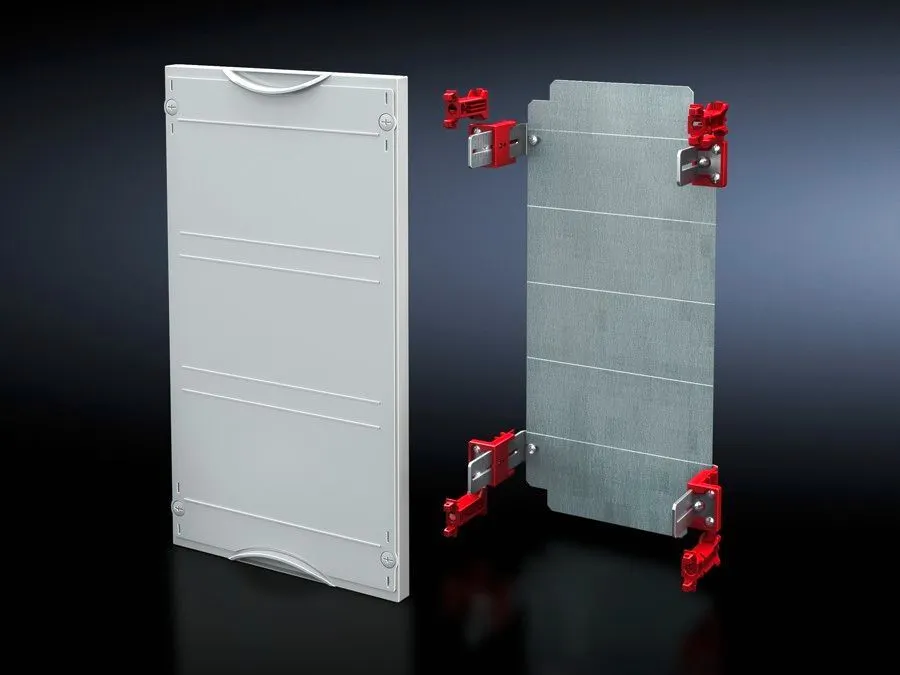

Rittal 9666080 SV Mounting Plate Module - Lead Seal Ready
Part Number: 9666080
Manufacturer
Rittal
Part number
9666080
Alt Part Number
SV 9666.080
Quick Summary
The Rittal SV Mounting Plate Module reliably secures ISV mounting within enclosure cabinets for protected electronics. Inadequate mounting surfaces can cause misalignment, sealing challenges, and costly field adjustments during installation. Designed for CE-readiness and compatible with standard ETIM 9 (EC002525) and ECLASS 8.0 (27400608) classifications. This integration supports scalable deployment across plant facilities and simplifies procurement for enclosures and electrical infrastructure projects.
Product Information
Extended Description
9666080 Rittal: SV Mounting plate module (ISV), 1 WU (250 mm), 1 U (150 mm), mounting plate WH: 188x116 mm
Article number
SV 9666.080
Product description
Possible installation depth 105 - 140 mm. Cover is prepared for a lead seal.
Material
Cover: Polystyrene | Mounting plate: Sheet steel, zinc-plated
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Width:Â 250 mm | Height:Â 150 mm
Size
Width units (WU) @ 250 mm:Â 1 | Height units (U) @ 150 mm:Â 1
Dimensions mounting plate (W x H)
188 mm x 116 mm
Packs of
1 pc(s).
Weight/pack
0.82 kg
Customs tariff number
94039910
EAN
4028177676022
ETIM 9
EC002525
ECLASS 8.0
27400608
Product description
SV Mounting plate module (ISV), 1 WU (250 mm), 1 U (150 mm), mounting plate WH: 188x116 mm
The SV mounting plate’s 1 WU x 1 U footprint creates a consistent mounting plane for ISV modules, enabling faster, error-free installation and easier future upgrades. This precise fit reduces misalignment, which translates to fewer field adjustments and improved reliability in control cabinets. The cover is made of polystyrene while the mounting plate is sheet steel and zinc-plated, finished in RAL 7035, delivering corrosion resistance and a clean interior appearance suitable for demanding environments. A lead-seal prepared cover adds tamper-evidence, supporting compliance in traceability-critical applications and regulated panels. With a depth range of 105–140 mm, installation adapts to varied enclosure depths, cutting the need for custom parts and expediting deployment. The package includes assembly parts, streamlining procurement and on-site assembly, while a compact 0.82 kg per-pack weight supports straightforward handling and inventory control. Overall, this module integrates seamlessly with ISV systems and Rittal enclosures, aligning with standard enclosure interior practices and improving total cost of ownership.
Get a Quick Quote for a Rittal 9666080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666080?
Enquire Now
FAQs
The SV Mounting Plate Module is designed specifically for ISV mounting within Rittal enclosure systems. It features a 1 WU by 1 U footprint and mounting plate dimensions of 188 x 116 mm, with a depth range of 105–140 mm and assembly parts included to ensure a straightforward fit inside standard enclosure frames.
This module provides a width of 250 mm and height of 150 mm (1 WU x 1 U), with the mounting plate measuring 188 x 116 mm. The weight per pack is 0.82 kg, and each pack contains 1 piece, facilitating predictable packaging and inventory planning for field teams.
The cover is prepared for a lead seal, delivering tamper-evidence and regulatory traceability for panels where security and compliance are critical. This feature helps meet audit requirements and reduces post-installation adjustments related to tampering concerns in controlled environments.
The mounting plate module supports CE readiness and aligns with industry classifications ETIM 9 (EC002525) and ECLASS 8.0 (27400608). These references help ensure compatibility with procurement systems and standardization across projects in industrial automation and electrical infrastructure.
The inclusion of assembly parts and the standardized ISV mounting footprint reduce field-time for alignment and component gathering, accelerating commissioning. The robust materials (polystyrene cover, zinc-plated steel plate) and lead-seal capability improve reliability and security, lowering maintenance cycles and total cost of ownership over the cabinet’s life cycle.
