Rittal 9666090 Mounting Plate Module - Lead Seal Ready

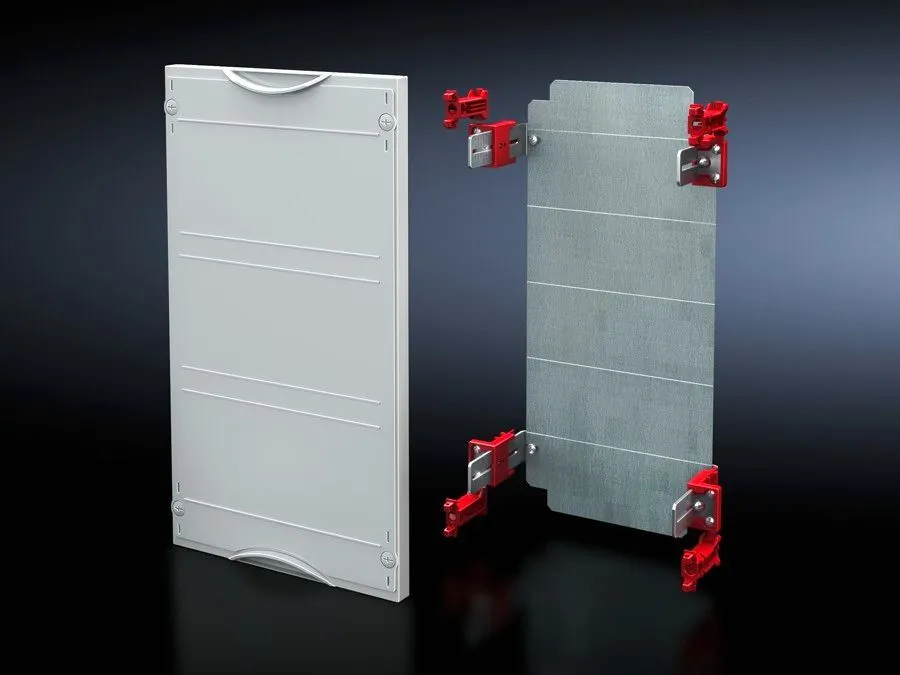

The SV Mounting Plate Module (ISV) combines a 1 WU by 2 U footprint with a 188x226 mm mounting plate, enabling a predictable fit in standard enclosures. This standardization reduces integration time and minimizes misalignment, delivering reliable mechanical support for mounted components. It is ideal for 250 mm wide, 300 mm high spaces where modular expansion is required in control cabinets. The cover uses polystyrene while the mounting plate is sheet steel, zinc-plated, delivering a lightweight yet durable enclosure accessory that resists corrosion in typical indoor environments. With a pack weight of 1.68 kg, it supports secure mounting without overloading interior hardware, helping maintain cabinet integrity during service and maintenance. The cover is prepared for a lead seal, enabling tamper-evident sealing where required by process security or regulatory controls. Combined with included assembly parts, installation becomes faster, and seals can be applied consistently across multiple cabinets, reducing field rework and documentation gaps. Dimensions include width 250 mm, height 300 mm, and mounting plate area 188x266 mm. The 105-140 mm installation depth range provides flexibility for shallow or deep enclosures, with color RAL 7035 for visual compatibility. Product data aligns with ETIM 9 EC002525 and ECLASS 8.0 27400608; the unit ships in a single pack and carries customs tariff 94039910 and EAN 4028177676039, supporting procurement and traceability.
