Rittal 9666100 Mounting Plate Module - Lead-Seal Ready
Part Number: 9666100
Manufacturer
Rittal
Part number
9666100
Alt Part Number
SV 9666.100
Quick Summary
9666100 Mounting Plate Module enables compact mounting in enclosures for industrial control cabinets. Installers often contend with tight spaces and sealing requirements, making secure mounting time-consuming and error-prone. CE compliance and IP-rated protection are standard expectations for enclosure accessories, but exact ratings vary by configuration—always verify in the datasheet. By supporting ISV configurations and a precise 1 WU by 3 U footprint, this module helps reduce installation time, spare-part variety, and costly rework, delivering predictable project timelines. The combination of a polystyrene cover and zinc-plated mounting plate also supports durable field performance and weather-resistance in indoor or semi-exposed environments.
Product Information
Extended Description

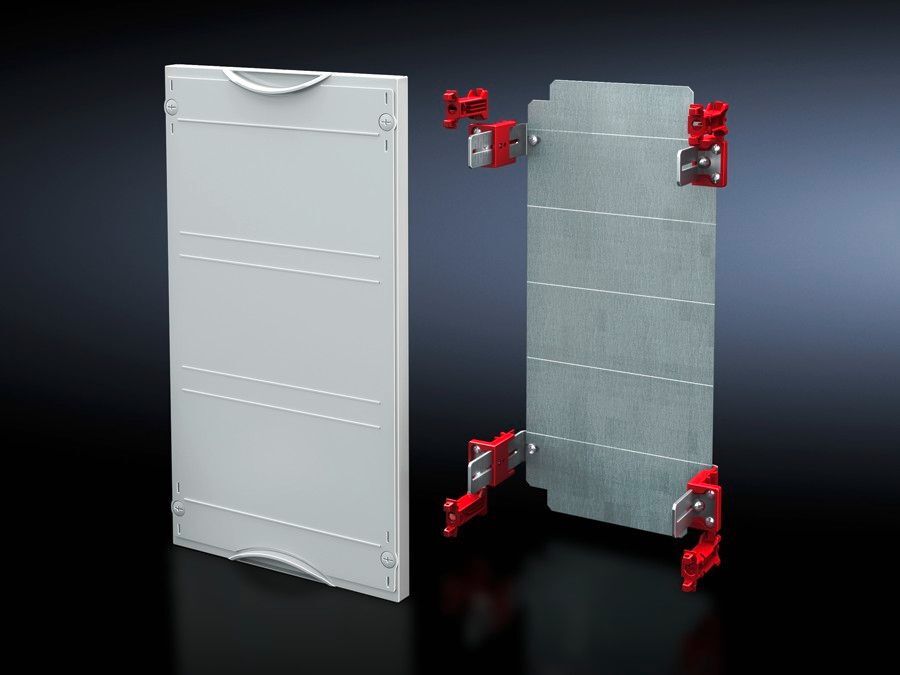

9666100 Rittal: SV Mounting plate module (ISV), 1 WU (250 mm), 3 U (450 mm), mounting plate WH: 188x416 mm
Article number
SV 9666.100
Product description
Possible installation depth 105 - 140 mm. Cover is prepared for a lead seal.
Material
Cover: Polystyrene | Mounting plate: Sheet steel, zinc-plated
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Width:Â 250 mm | Height:Â 450 mm
Size
Width units (WU) @ 250 mm:Â 1 | Height units (U) @ 150 mm:Â 3
Dimensions mounting plate (W x H)
188 mm x 416 mm
Packs of
1 pc(s).
Weight/pack
2.24 kg
Customs tariff number
94039910
EAN
4028177676046
ETIM 7.0
EC001893
ECLASS 8.0
27400608
Product description
SV Mounting plate module (ISV), 1 WU (250 mm), 3 U (450 mm), mounting plate WH: 188x416 mm
Feature: ISV mounting plate module with 1 WU (250 mm) width and 3 U (450 mm) height. Business Impact: Optimizes enclosure utilization and simplifies rack alignment, reducing assembly complexity. Application: Ideal for control cabinets requiring a compact, standardized footprint. Feature: Mounting plate dimensions 188x416 mm in a robust zinc-plated steel construction. Business Impact: Ensures durable support with corrosion resistance, enabling long service life in harsh environments. Application: Suitable for Rittal ISV frames and similar mounting configurations. Feature: Cover made of polystyrene with a lead-seal-ready design. Business Impact: Enhances security and tamper protection while preserving easy access for maintenance. Application: Fits sealed access requirements in regulated or secured installations. Feature: Pack quantity and weight (1 pc per pack; 2.24 kg). Business Impact: Simplifies inventory planning and reduces procurement complexity for project teams. Application: Streamlines stocking and replacement planning for field crews. Feature: Finish and standards alignment (RAL 7035 colour; ETIM 7.0 EC001893; ECLASS 8.0 27400608). Business Impact: Ensures visual consistency with cabinet ecosystems and supports efficient data-driven purchasing. Application: Helps align with corporate color schemes and standard_classification systems.
Get a Quick Quote for a Rittal 9666100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666100?
Enquire Now
FAQs
Begin by confirming ISV compatibility and remove the enclosure panel if required. Align the mounting plate (188x416 mm) with the enclosure frame, tighten the zinc-plated hardware to secure the plate, and attach any assembly parts supplied. The 1 WU by 3 U footprint ensures precise positioning, while the lead-seal-ready cover provides tamper protection once a seal is installed. The process is designed to minimize misalignment and rework during panel assembly.
Key dimensions are width 250 mm and height 450 mm for the module, with the mounting plate itself measuring 188x416 mm. The product is supplied in packs of one, with a weight of 2.24 kg per pack. These specs support predictable space planning and straightforward material handling on site.
Yes. The cover is prepared for a lead seal, which supports secure enclosure access and tamper protection in applications requiring sealed or regulated cabinet environments. When ordering, ensure you also have the appropriate lead seal hardware and follow installed seal procedures per your site security standards.
The product aligns with ETIM 7.0 EC001893 and ECLASS 8.0 27400608 classifications, aiding standardized procurement and interoperability. It also carries the EAN 4028177676046 for global traceability and customs tariff code 94039910 for cross-border shipping. While specific CE or IP ratings depend on the overall enclosure configuration, these classifications help ensure compatibility with enterprise data systems and regulatory documentation.
The module consolidates mounting and sealing needs into a single, standardized accessory, reducing bill-of-material complexity and SKU proliferation. Its precise footprint (1 WU x 3 U) and lead-seal readiness shorten install time, minimize field adjustments, and improve uptime for automation cabinets. The durable materials and consistent finish support long service life and easier maintenance planning.
