Rittal 9666110 SV Mounting Plate - CE Certified
Part Number: 9666110
Manufacturer
Rittal
Part number
9666110
Alt Part Number
SV 9666.110
Quick Summary
Rittal 9666110 SV mounting plate module provides a compact mounting platform for ISV in 19-inch enclosures. Manufacturers often struggle with space constraints and seal integrity when adding mounting plates to already populated panels. This solution is designed with CE compliance for European installations and aligns with ETIM EC002525 and ECLASS 27400608 classifications to streamline procurement and data exchange. Its 1 WU (250 mm) width and 4 U (600 mm) height footprint, plus a mounting plate 188x566 mm, enable scalable configurations without sacrificing enclosure integrity. Coupled with a cover prepared for a lead seal, installation is faster and tamper evidence is improved, delivering measurable reductions in risk and total cost of ownership for control rooms and process lines.
Product Information
Extended Description

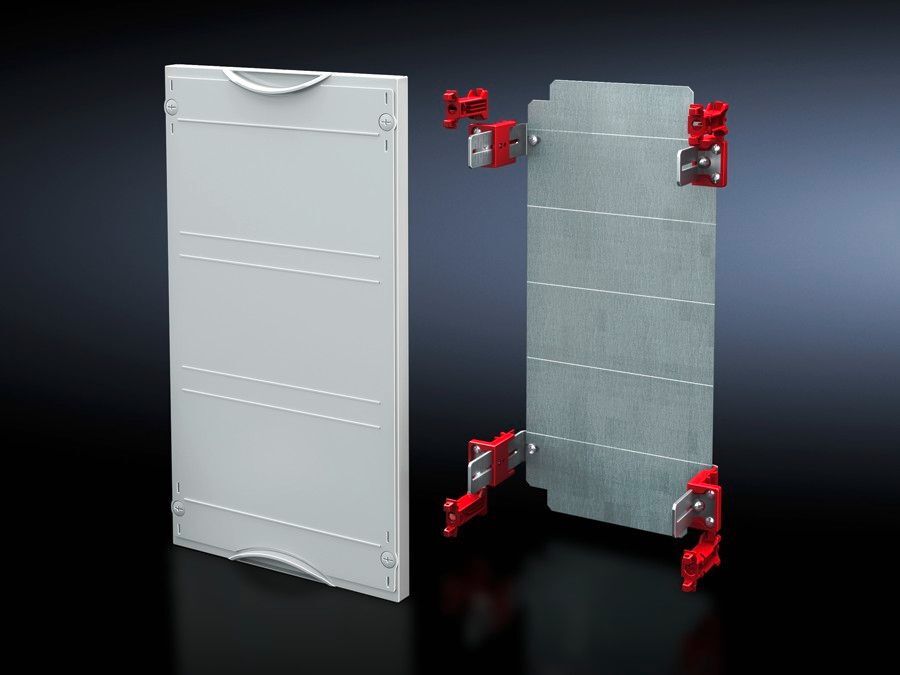

9666110 Rittal: SV Mounting plate module (ISV), 1 WU (250 mm), 4 U (600 mm), mounting plate WH: 188x566 mm
Article number
SV 9666.110
Product description
Possible installation depth 105 - 140 mm. Cover is prepared for a lead seal.
Material
Cover: Polystyrene | Mounting plate: Sheet steel, zinc-plated
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Width: 250 mm | Height: 600 mm
Size
Width units (WU) @ 250 mm: 1 | Height units (U) @ 150 mm: 4
Dimensions mounting plate (W x H)
188 mm x 566 mm
Packs of
1 pc(s).
Weight/pack
2.78 kg
Customs tariff number
85369001
EAN
4028177676053
ETIM 9
EC002525
ECLASS 8.0
27400608
Product description
SV Mounting plate module (ISV), 1 WU (250 mm), 4 U (600 mm), mounting plate WH: 188x566 mm
Feature: Compact footprint and modular footprint. Business Impact: Enables scalable enclosure configurations without increasing overall enclosure depth, reducing integration time and space requirements in control cabinets. Application: Suitable for ISV-equipped 19-inch enclosures in industrial automation projects. Feature: Lead-seal-ready cover. Business Impact: Improves tamper evidence and regulatory compliance, lowering audit remediation effort and improving data integrity in regulated environments. Application: Critical infrastructure and process control panels where seals are mandated. Feature: Material mix and durability. Business Impact: Polystyrene cover with zinc-plated sheet steel mounting plate offers corrosion resistance and long-term reliability in harsh facilities. Application: Factory floors, switching rooms, and outdoor-rated enclosures with moderate exposure. Feature: Exact dimensions and mounting compatibility. Business Impact: Clear 250 mm width, 600 mm height, and mounting plate 188x566 mm simplify layout planning and reduce integration errors. Application: Standardized 1 WU by 4 U rack layouts across multiple projects. Feature: Packaging and installation readiness. Business Impact: Includes assembly parts and a predictable weight per pack (2.78 kg) to speed procurement and on-site handling. Application: Routine replacements and upgrades in expanding control architectures. Insight: ETIM EC002525 and ECLASS 27400608 alignment supports seamless data synchronization with ERP, BOMs, and procurement workflows, reducing order errors and lead times in industrial environments.
Get a Quick Quote for a Rittal 9666110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666110?
Enquire Now
FAQs
The 9666110 mounting plate module is designed for standard ISV installations inside 19‑inch enclosures. It supports 1 WU width and 4 U height (250 mm by 600 mm overall footprint) and uses a mounting plate sized 188 by 566 mm. The depth can be set between 105 and 140 mm, with assembly parts included for quick setup.
The cover is prepared for a lead seal, delivering tamper-evidence and regulatory compliance where seals are required. This feature reduces rework and risk during audits by ensuring access is traceable and secure, supporting safer maintenance and regulated equipment monitoring in industrial environments.
Yes. It is suitable for typical ISV mounting in 19-inch control panels, offering a 250 mm wide by 600 mm high footprint with a mounting plate of 188x566 mm. The configuration corresponds to a 1 WU by 4 U layout, making it compatible with common rack arrangements and panel builds.
The product is CE-compliant for European installations and is cataloged under ETIM 9 EC002525 and ECLASS 8.0 27400608, which streamlines data management, procurement processes, and BOM mapping while ensuring consistent part identification across systems.
ROI is driven by faster installation, reduced field errors, and easier future upgrades. The 1 WU/4 U footprint minimizes enclosure space usage, assembly parts speed on-site setup, and the lead-seal-ready cover lowers tampering-related rework, yielding lower maintenance costs and faster project completion in expansion-controlled environments.
