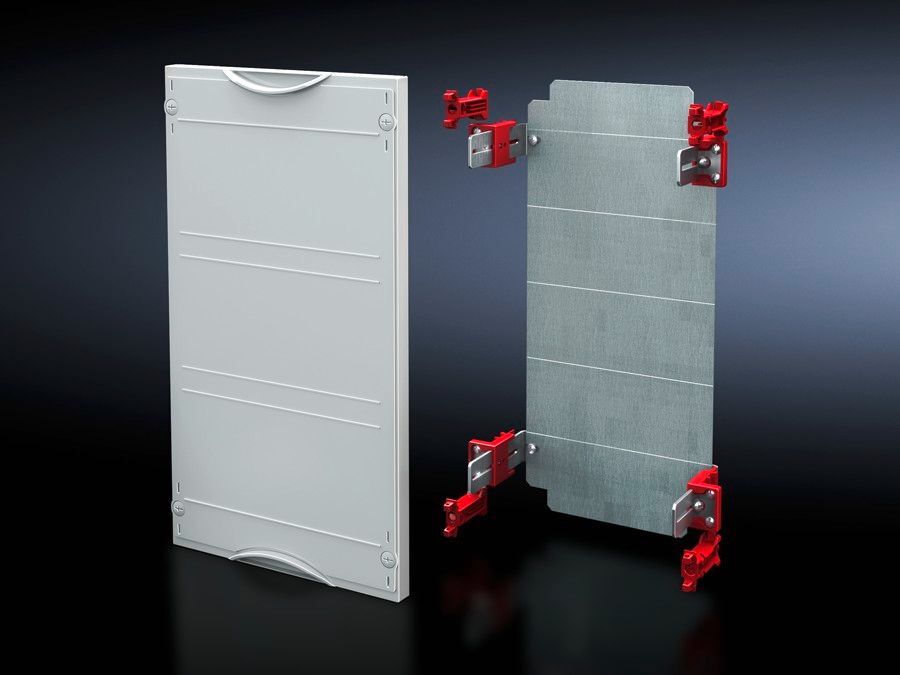

Rittal 9666130 SV Mounting plate module - Lead seal prepared
Part Number: 9666130
Manufacturer
Rittal
Part number
9666130
Alt Part Number
SV 9666.130
Quick Summary
Rittal 9666130 SV Mounting plate module is a mounting solution for ISV configurations in 2 WU by 2 U enclosures. Engineers often struggle with retrofit alignment, seal integrity, and compatibility with existing panels. This mounting solution aligns with CE-compliant installations and standard enclosure protections in industrial cabinets, supporting reliability in harsh environments. By simplifying retrofits and delivering a stable mounting surface, it reduces installation time and maintenance costs while enabling scalable enclosure configurations for growing automation needs.
Product Information
Extended Description
9666130 Rittal: SV Mounting plate module (ISV), 2 WU (500 mm), 2 U (300 mm), mounting plate WH: 438x226 mm
Article number
SV 9666.130
Product description
Possible installation depth 105 - 140 mm. Cover is prepared for a lead seal.
Material
Cover: Polystyrene | Mounting plate: Sheet steel, zinc-plated
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Width: 500 mm | Height: 300 mm
Size
Width units (WU) @ 250 mm: 2 | Height units (U) @ 150 mm: 2
Dimensions mounting plate (W x H)
438 mm x 266 mm
Packs of
1 pc(s).
Weight/pack
3.22 kg
Customs tariff number
94039910
EAN
4028177676077
ETIM 9
EC002525
ECLASS 8.0
27400608
Product description
SV Mounting plate module (ISV), 2 WU (500 mm), 2 U (300 mm), mounting plate WH: 438x226 mm
The SV Mounting plate module provides a compact ISV mounting option for 2 WU (500 mm) and 2 U (300 mm) configurations, delivering a predictable footprint that streamlines cabinet layout and wiring harness planning. This translates to measurable efficiency gains during panel rebuilds and beyond, while ensuring compatibility with the mounting plate WH: 438x226 mm. The cover is made of polystyrene and is prepared for a lead seal, which enhances security and compliance in regulated environments, reducing tampering risks and facilitating audit readiness. The mounting plate is sheet steel and zinc-plated, delivering robust mechanical support and corrosion resistance for long service life in industrial settings. Weighing 3.22 kg per pack and shipped as a single unit, this module supports straightforward handling, storage, and logistics, making it ideal for field installations and routine maintenance. Assembly parts are included to accelerate installation and minimize on-site sourcing. The combination of dimensions, color (RAL 7035), and material compatibility with standard Rittal enclosures delivers a predictable, repeatable installation workflow for engineers and procurement teams alike.
Get a Quick Quote for a Rittal 9666130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666130?
Enquire Now
FAQs
Yes. The SV mounting plate module is designed for ISV setups in 2 WU (500 mm) by 2 U (300 mm) enclosures. It uses a mounting plate sized 438x226 mm and includes assembly parts, enabling straightforward integration with standard Rittal enclosures and reducing retrofit time.
Key specs include article number SV 9666.130, dimensions width 500 mm and height 300 mm, mounting plate 438x266 mm, cover material polystyrene, mounting plate steel (zinc-plated), color RAL 7035, weight per pack 3.22 kg, and packaging as 1 piece. The product also supports a lead-seal-ready cover for security compliance.
Lead-seal readiness provides a tamper-evident option for enclosure covers, simplifying audits and regulatory checks. With a cover prepped for a lead seal, you can implement controlled access without modifying the enclosure, maintaining integrity of internal wiring and components during maintenance or warranty periods.
The module delivers a stable mounting surface within ISV-configured cabinets, supports consistent fit with WH mounting plates, and includes assembly parts to speed up installation. Its 2 WU x 2 U footprint and standardized dimensions help reduce design risk and ensure repeatable deployment across multiple panels.
Yes. Predictable dimensions, quick assembly, and secure sealing reduce field labor time and rework. Durable materials (zinc-plated steel and polystyrene) extend service life, while standardized parts simplify stocking and maintenance, ultimately lowering inventory costs and downtime in automation environments.
