Rittal SV 9666.143 Mounting Plate Module - Lead-Seal Ready
Part Number: 9666143
Manufacturer
Rittal
Part number
9666143
Alt Part Number
SV 9666.143
Quick Summary
Rittal SV 9666.143 mounting plate module is a versatile mounting solution for ISV enclosures. It enables a clean 3 WU by 3 U interior layout suitable for control cabinets and switchgear housings. It addresses installation depth constraints and seal integrity challenges when configuring equipment layouts, reducing field rework and project delays. The cover is prepared for a lead seal, supporting security and compliance in environments requiring tamper resistance. Note that the data provided does not specify CE, IP, or SIL certifications; verify your project standards for confirmation. The combination of a polystyrene cover with a zinc-plated mounting plate delivers durability and ease of maintenance, while standard dimensions (750x450 mm, 688x416 mm plate) help streamline procurement and installation across multiple cabinets.
Product Information
Extended Description

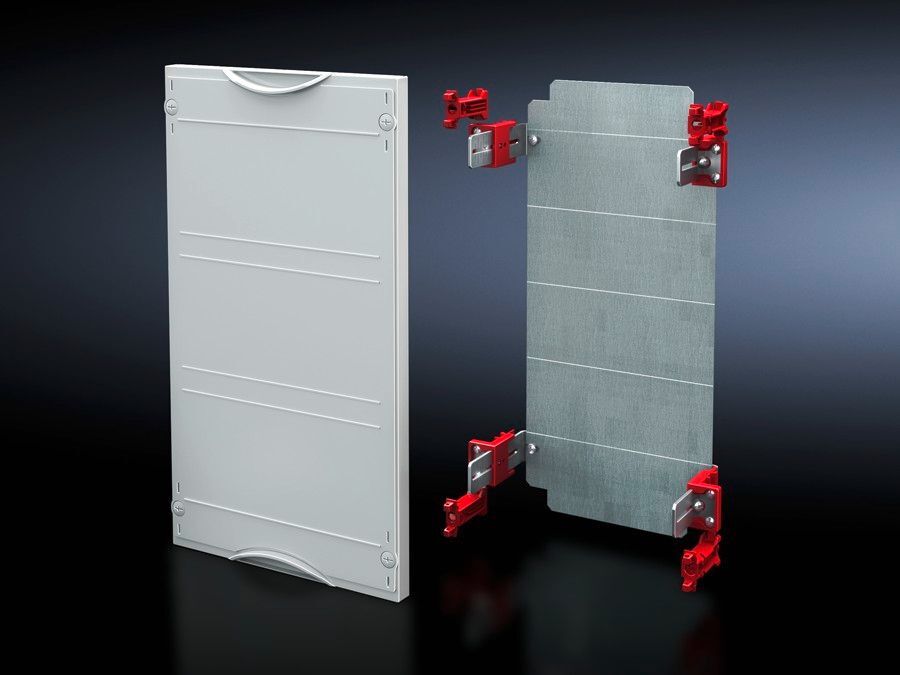

9666143 Rittal: SV Mounting plate module (ISV), 3 WU (750 mm), 3 U (450 mm), mounting plate WH: 688x416 mm
Article number
SV 9666.143
Product description
Possible installation depth 105 - 140 mm. Cover is prepared for a lead seal.
Material
Cover: Polystyrene | Mounting plate: Sheet steel, zinc-plated
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Width: 750 mm | Height: 450 mm
Size
Width units (WU) @ 250 mm: 3 | Height units (U) @ 150 mm: 3
Dimensions mounting plate (W x H)
688 mm x 416 mm
Packs of
1 pc(s).
Weight/pack
6.9 kg
Customs tariff number
94039910
EAN
4028177676107
ETIM 9
EC002525
ECLASS 8.0
27400608
Product description
SV Mounting plate module (ISV), 3 WU (750 mm), 3 U (450 mm), mounting plate WH: 688x416 mm
Feature: 3 WU by 3 U footprint (750 mm x 450 mm) enables standardized interior layouts and modular expansion → Business Impact: simplifies cabinet design, reduces custom fabrication, and shortens project lead times → Application: ISV mounting within 750 mm wide control cabinets and switchgear housings. Feature: Lead-seal prepared cover enhances security and tamper-evidence → Business Impact: supports regulatory compliance and secure service access in controlled environments → Application: industrial facilities with security and audit requirements. Feature: Polystyrene cover and zinc-plated steel mounting plate deliver durability and corrosion resistance → Business Impact: longer service life, lower maintenance costs, and reliable performance in harsh environments → Application: harsh and temperature-variable factory settings. Feature: Colour RAL 7035 and compatible dimensions (W 750 mm, H 450 mm) enable visual standardization across sites → Business Impact: improved site operability and faster parts identification → Application: multi-site rollouts and standardized installations. Feature: Assembly parts included with 1 pc per pack and weight 6.9 kg → Business Impact: easier logistics and predictable onsite handling → Application: centralized procurement and streamlined installation workflows. Additional: ETIM EC002525 and ECLASS 27400608 mappings support procurement systems and data integration → Business Impact: better data governance and faster e-procurement.
Get a Quick Quote for a Rittal 9666143
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666143?
Enquire Now
FAQs
SV 9666.143 is designed for ISV mounting within 3 WU by 3 U configurations, with overall dimensions 750 mm by 450 mm and mounting plate 688x416 mm. It integrates with standard Rittal ISV accessory ecosystems and ships with assembly parts to support straightforward installation in common 19-inch enclosures.
The cover is prepared to accommodate a lead seal, aiding tamper-evidence and security compliance. When planning installations, ensure seal points align with your security policy and verify compatible hardware and sealing procedures per your facility requirements.
The cover is made of polystyrene, while the mounting plate uses sheet steel that is zinc-plated. This combination provides durable, corrosion-resistant components with stable mechanical performance, suitable for long-term enclosure applications and easy cleaning in industrial environments.
Product data lists ETIM EC002525 and ECLASS 27400608 mappings, along with an EAN and customs tariff details. Explicit CE, IP, or SIL certifications are not specified in the provided data; users should verify with their compliance teams or the supplier for project-specific requirements.
It standardizes ISV mounting, reduces field rework, and accelerates procurement with clear dimensions and included assembly parts. The lead-seal ready feature supports security requirements, while durable materials and familiar dimensions improve maintenance planning and site-to-site consistency.
