Rittal 9666170 SV Rail Module ISV - 1 WU, 2U
Part Number: 9666170
Manufacturer
Rittal
Part number
9666170
Alt Part Number
SV 9666.170
Quick Summary
SV Rail Module ISV from Rittal provides compact mounting for terminal blocks and switchgear. It addresses the common challenge of rigid, fixed rail layouts by offering adjustable rails with a 25 mm pitch for flexible configurations. The module aligns with ETIM 9 EC002525 and ECLASS 8.0 27142411 classifications, while the lead-seal-ready cover supports secure installations. For procurement and integration, its 1 WU by 2 U footprint, assembled parts, and robust materials deliver value in scalable enclosure projects and maintenance cycles.
Product Information
Extended Description

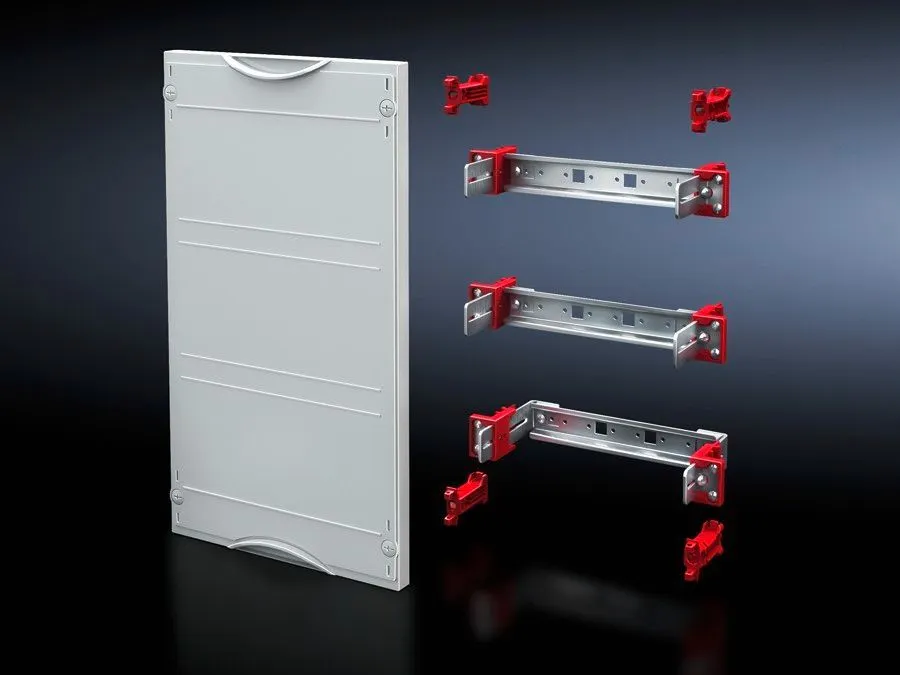

9666170 Rittal: SV Support rail module (ISV), 1 WU (250 mm), 2 U (300 mm), 2 support rails
Article number
SV 9666.170
Product description
For installing terminal blocks, switchgear, etc. with support rails 35 x 15 mm. Adjustable on a 25 mm pitch pattern. Cover is prepared for a lead seal.
Material
Cover: Polystyrene | Support rail: Sheet steel, zinc-plated
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Width: 250 mm | Height: 300 mm
Size
Width units (WU) @ 250 mm: 1 | Height units (U) @ 150 mm: 2
Number of support rails 35/15
2
Packs of
1 pc(s).
Weight/pack
1.14 kg
Customs tariff number
85369001
EAN
4028177676138
ETIM 9
EC002525
ECLASS 8.0
27142411
Product description
SV Support rail module (ISV), 1 WU (250 mm), 2 U (300 mm), 2 support rails
Feature → Business Impact → Application: The SV Rail Module ISV uses a 1 WU (250 mm) width and 2 U (300 mm) height with two 35 x 15 mm support rails, enabling compact, orderly terminal block and switchgear mounting in standard enclosures. This reduces panel real estate needs and speeds wiring, translating to shorter commissioning times in control panels and distribution boards. Application: ideal for industrial automation cabinets where space optimization and orderly layout are priorities. Feature → Business Impact → Application: The cover is prepared for a lead seal, enhancing security and traceability in regulated environments, while the rail system uses sheet steel, zinc-plated rails and a polystyrene cover for durability and ease of maintenance. Application: beneficial in food & beverage, water treatment, and manufacturing lines requiring reliable, low-maintenance enclosures. Feature → Business Impact → Application: Adjustable on a 25 mm pitch pattern and compatibility with 35 x 15 mm rails reduces customization needs, lowers installation costs, and supports future expansions. Application: retrofit projects and new builds where fast upgrades and scalable configurations are essential. Feature → Business Impact → Application: Supplied as 1 pack with assembly parts and a weight of 1.14 kg, streamlining procurement and reducing logistics overhead. Application: projects with tight timelines and strict BOM controls in industrial facilities.
Get a Quick Quote for a Rittal 9666170
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666170?
Enquire Now
FAQs
Begin by positioning the two 35 x 15 mm support rails inside the cabinet rails and secure them with the appropriate mounting screws. The ISV supports a 1 WU by 2 U footprint and is adjustable on a 25 mm pitch to accommodate terminal blocks or switchgear. The cover is lead-seal-ready for secure installations.
Yes. It is designed to install terminal blocks and switchgear using 35 x 15 mm rails, with a 1 WU (250 mm) width and 2 U height. It ships with assembly parts and offers 25 mm pitch adjustment, making it compatible with a wide range of IEC components.
The module measures 250 mm in width and 300 mm in height, corresponding to 1 WU by 2 U. The packing weight is 1.14 kg and it includes two rails for secure mounting. This compact footprint supports efficient space utilization in panel assemblies.
The product is classified under ETIM 9 EC002525 and ECLASS 8.0 27142411, aligning with technical data standards. The EAN is 4028177676138 and the customs tariff number is 85369001, aiding procurement and logistics. Note that explicit CE or IP ratings are not listed in the provided data.
By consolidating mounting rails and providing a lead-seal-ready cover, the module speeds assembly, improves wiring organization, and reduces field service time. Its compatibility with standard 35/15 mm rails and adjustable pitch supports scalable enclosure layouts, lowers BOM variance, and enhances project timelines in industrial automation environments.
