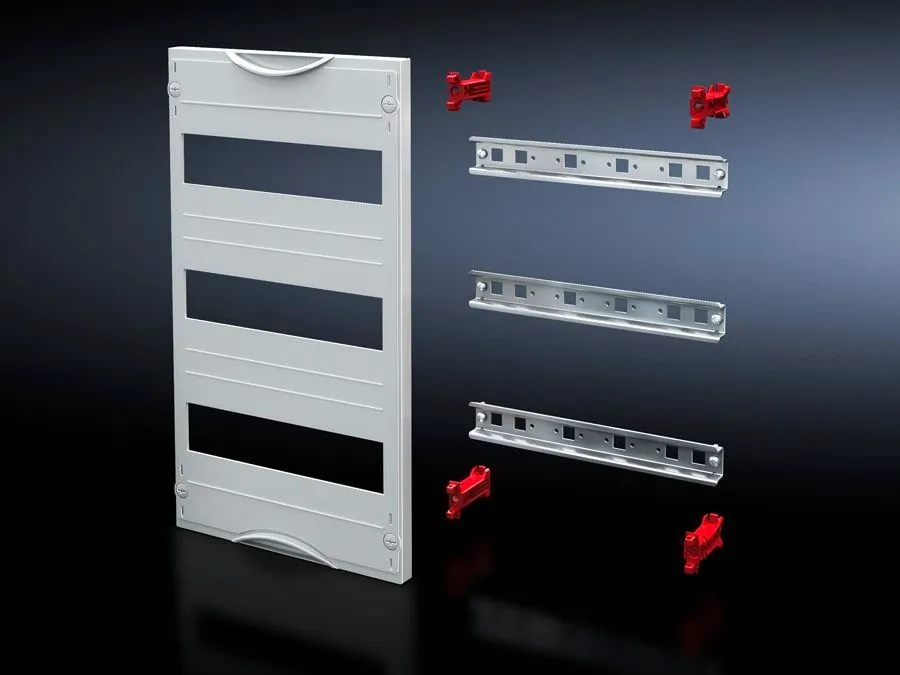

Rittal 9666240 SV DIN Rail Mounted Device Module - Lead Seal Ready
Part Number: 9666240
Manufacturer
Rittal
Part number
9666240
Alt Part Number
SV 9666.240
Quick Summary
Rittal 9666240 SV DIN rail mounted device module is designed to house DIN rail mounted equipment in compact enclosures. Engineers often struggle with secure cabling, clear maintenance access, and audits in crowded control panels. Industry standards commonly reference CE conformity, dependable IP protection, and SIL considerations for safety-critical installations. For this SKU, verify exact certifications in the product datasheet and downloads to ensure full compliance. Designed to integrate with DIN rails and 35 x 15 mm support rails, it offers reliable installation, easier service, and reduced downtime in industrial environments.
Product Information
Extended Description
9666240 Rittal: SV DIN rail mounted device module (ISV), 1 WU (250 mm), 1 U (150 mm), 1 x 12 divider units
Article number
SV 9666.240
Product description
To accommodate DIN rail mounted devices. With support rails 35 x 15 mm. Cover is prepared for a lead seal.
Material
Cover: Polystyrene | Support rail: Sheet steel, zinc-plated | Cover: Polystyrene
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Width: 250 mm | Height: 150 mm
Size
Width units (WU) @ 250 mm: 1 | Height units (U) @ 150 mm: 1 | Max. pitch units @ 18 mm: 12
Number of support rails
1
Number of cut-outs
1
Packs of
1 pc(s).
Weight/pack
0.44 kg
Customs tariff number
85369001
EAN
4028177676220
ETIM 9
EC002525
ECLASS 8.0
27142411
Product description
SV DIN rail mounted device module (ISV), 1 WU (250 mm), 1 U (150 mm), 1 x 12 divider units
The SV DIN rail mounted device module (ISV) provides a 1 WU (250 mm) width and 1 U (150 mm) height, with space for 1 x 12 divider units. This compact footprint optimizes panel layouts, helping you save enclosure space and streamline wiring schemes for PLCs, terminal blocks, and signal modules. The 35 x 15 mm support rails support straightforward integration and alignment, reducing installation time and enabling predictable expansion in growing control systems. The cover is made of polystyrene while the support rail is sheet steel and zinc-plated, with the cover prepared for a lead seal. This combination delivers enhanced security and tamper-evidence in process environments, supporting regulatory audits and compliance workflows while maintaining easy access for servicing. Color is RAL 7035, and the unit ships with assembly parts included, ensuring a faster, error-reduced installation that keeps panel aesthetics consistent with existing Rittal enclosures. Dimensions and layout are clearly defined: width 250 mm, height 150 mm; single support rail and one cut-out per module. This standardization reduces procurement complexity and simplifies replacement planning for maintenance teams. The product carries reference identifiers such as EAN 4028177676220, customs tariff 85369001, ETIM EC002525, and ECLASS 27142411, enabling seamless integration with procurement data, ERP systems, and specification libraries for accurate sourcing and BOM creation.
Get a Quick Quote for a Rittal 9666240
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666240?
Enquire Now
FAQs
The ISV module is designed for mounting on standard 35 x 15 mm DIN rails with a single support rail. Align the rail with the 1 U height, slide the module into place, and secure using the included assembly parts. The 1 WU width (250 mm) accommodates a single row of devices and 12 divider units for organized cabling and clear separation of functions.
Key dimensions are width 250 mm and height 150 mm, corresponding to 1 WU x 1 U. The cover is polystyrene, while the support rail is sheet steel and zinc-plated. The cover is prepared for a lead seal, which supports tamper-evident integrity in audits and regulated environments.
Yes, the cover is prepared for a lead seal, enabling secure tamper-evident sealing during audits. For compliant sealing, use the included assembly parts to mount the module securely and apply the seal without removing installed devices, preserving ongoing operation while meeting audit requirements.
While the datasheet confirms product-specific identifiers like EAN, ETIM, and ECLASS, verify CE conformity and any site-specific IP or safety requirements in your region. Always consult the downloadable datasheets and manufacturer documentation to confirm the exact certifications applicable to your installation and process environment.
The compact 1 WU x 1 U design plus 1 x 12 dividers enables tidy layouts, reducing panel footprint and wiring complexity. Assembly parts included speed up installation, and lead-seal readiness supports quicker audits. Overall, you gain easier maintenance, reduced downtime, and improved procurement consistency across similar enclosure upgrades or expansions.
