Rittal SV 9666.260 ISV Module - Lead-seal Prepared
Part Number: 9666260
Manufacturer
Rittal
Part number
9666260
Alt Part Number
SV 9666.260
Quick Summary
Rittal SV 9666.260 is a DIN rail mounted device module designed to house DIN rail equipment within compact control panels. This 1 WU (250 mm) by 3 U (450 mm) enclosure uses 3 x 12 divider units to keep wiring organized and scalable as your panel grows. A common challenge for engineers is balancing device density with service access; this module addresses that by providing clear separation and accessible mounting points. Note: the data does not specify CE, IP or SIL marks; verify certification on the datasheet for your region. In practice, the enclosure supports streamlined panel builds, faster installations, and predictable maintenance planning, delivering tangible business value through improved reliability and reduced downtime.
Product Information
Extended Description

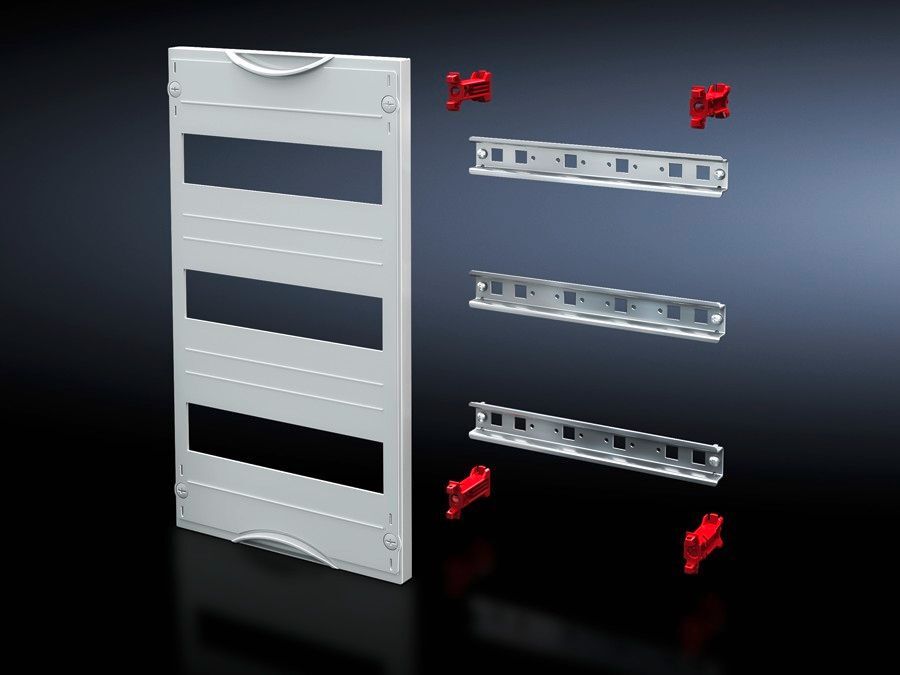

9666260 Rittal: SV DIN rail mounted device module (ISV), 1 WU (250 mm), 3 U (450 mm), 3 x 12 divider units
Article number
SV 9666.260
Product description
To accommodate DIN rail mounted devices. With support rails 35 x 15 mm. Cover is prepared for a lead seal.
Material
Cover: Polystyrene | Support rail: Sheet steel, zinc-plated | Cover: Polystyrene
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Width: 250 mm | Height: 450 mm
Size
Width units (WU) @ 250 mm: 1 | Height units (U) @ 150 mm: 3 | Max. pitch units @ 18 mm: 36
Number of support rails
3
Number of cut-outs
3
Packs of
1 pc(s).
Weight/pack
1.06 kg
Customs tariff number
85369001
EAN
4028177676244
ETIM 9
EC002525
ECLASS 8.0
27142411
Product description
SV DIN rail mounted device module (ISV), 1 WU (250 mm), 3 U (450 mm), 3 x 12 divider units
Feature → Business Impact → Application: The SV 9666.260 is a DIN rail mounted device module optimized for 1 WU and 3 U footprints, enabling dense but orderly device mounting. This directly reduces panel width and simplifies wiring layouts, leading to shorter commissioning times and lower enclosure costs on machine builds. Application: use in control panels where space is at a premium and future expansion is expected. Feature → Business Impact → Application: Lead-seal prepared cover enhances security and traceability; tamper-evident features are critical for regulated environments and a swift audit trail. Application: electrical rooms and industrial installations requiring compliant documentation and controlled access. Feature → Business Impact → Application: Includes 3 x 12 divider units and 3 cut-outs with 3 support rails; enables modular device grouping and clean cabling. Application: complex control architectures with multiple I/O blocks. Feature → Business Impact → Application: Material composition and finish (polystyrene cover; zinc-plated sheet steel rails; RAL 7035) ensure durability and standard color coding, improving maintenance visibility. Application: long-term reliability across harsh production environments. Feature → Business Impact → Application: Assembly parts and mounting versatility shorten installation time and reduce order complexity. Application: rapid field upgrades and retrofit projects. Industry insight: using standard DIN rail modules from Rittal supports scalable, repeatable panel designs and superior spare-part compatibility across facilities.
Get a Quick Quote for a Rittal 9666260
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666260?
Enquire Now
FAQs
Mount the SV 9666.260 directly onto a standard DIN rail using the 35 x 15 mm support rails. With a 1 WU width and 3 U height, position the module to align with the DIN rail profile, then secure using the included assembly parts. The three divider units and three cut-outs simplify routing and component organization during panel assembly.
The enclosure measures 250 mm in width and 450 mm in height, accommodating 1 WU and 3 U of space. It includes three divider units (3 x 12) and three support rails with three cut-outs, designed to host DIN rail devices in a compact 250 x 450 mm footprint while keeping wiring organized and accessible.
Yes, the SV 9666.260 is designed for standard DIN rails with three 35 x 15 mm support rails. The pack includes assembly parts, three divider units, and mounting hardware to facilitate installation and quick wiring separation, enabling efficient panel builds and repeatable configurations.
The provided data does not specify CE, IP, or SIL certifications for SV 9666.260. When selecting for regulated environments, verify the product datasheet or contact the supplier to confirm applicable marks and protection ratings for your region and application.
Using SV 9666.260 can reduce panel footprint and wiring complexity thanks to its compact 1 WU/3 U form factor with 3 divider units, shortening installation time and enabling easier maintenance. Lead-seal prepared covers improve security and auditability, while included parts and standardized color coding support faster deployment and lower lifecycle costs.
