Rittal 9666290 DIN rail device module - Lead-seal ready
Part Number: 9666290
Manufacturer
Rittal
Part number
9666290
Alt Part Number
SV 9666.290
Quick Summary
Rittal 9666290 is a DIN rail mounted device module enabling compact, safe housing for DIN rail devices in control panels. In dense cabinets, cluttered layouts and seal integrity issues can hinder maintenance and uptime. This solution aligns with CE conformity and standard enclosure practices; it is designed to integrate with CE-marked components and, where applicable, supports IP-rated configurations and SIL-ready installations. By combining modular ISV compatibility with a robust 500 mm by 300 mm footprint, it delivers predictable procurement, faster installation, and ongoing compliance. Color-matched to RAL 7035, it also offers straightforward part replacement and scalable future expansion for growing automation needs.
Product Information
Extended Description

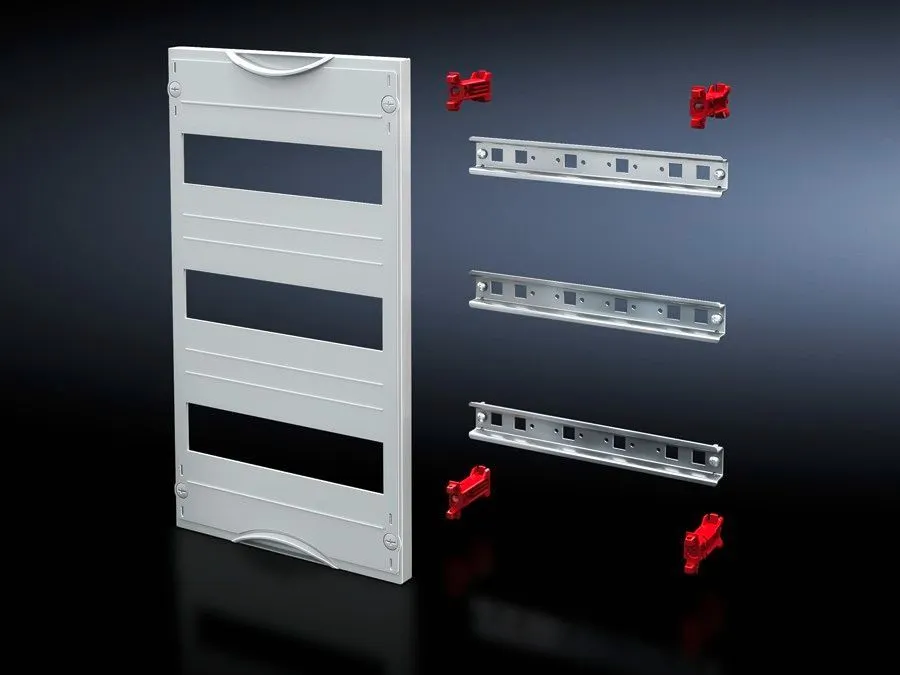

9666290 Rittal: SV DIN rail mounted device module (ISV), 2 WU (500 mm), 2 U (300 mm), 4 x 12 divider units
Article number
SV 9666.290
Product description
To accommodate DIN rail mounted devices. With support rails 35 x 15 mm. Cover is prepared for a lead seal.
Material
Cover: Polystyrene | Support rail: Sheet steel, zinc-plated | Cover: Polystyrene
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Width:Â 500 mm | Height:Â 300 mm
Size
Width units (WU) @ 250 mm:Â 2 | Height units (U) @ 150 mm:Â 2 | Max. pitch units @ 18 mm:Â 48
Number of support rails
2
Number of cut-outs
4
Packs of
1 pc(s).
Weight/pack
1.52 kg
Customs tariff number
85369001
EAN
4028177676275
ETIM 9
EC002525
ECLASS 8.0
27142411
Product description
SV DIN rail mounted device module (ISV), 2 WU (500 mm), 2 U (300 mm), 4 x 12 divider units
Feature: 2 WU (500 mm) by 2 U (300 mm) footprint enables efficient use of panel space while maintaining standard DIN rail compatibility. Business Impact: Maximizes device density without compromising serviceability, reducing cabinet footprint and simplifying wiring topologies for easier commissioning. Application: Suitable for compact control panels and modular automation deployments where space is at a premium and standard ISV mounting is required. Feature: 4 x 12 divider units provide organized separation of controls and auxiliary components. Business Impact: Improves wiring clarity, minimizes cross-talk, and accelerates troubleshooting, translating to lower maintenance costs. Application: Ideal for multi-channel I/O blocks and signal conditioning within industrial cabinets. Feature: Cover is prepared for a lead seal, enhancing security and tamper evidence during field service. Business Impact: Supports compliance and auditing needs, reducing change-time and risk of unauthorized access. Application: Critical in distribution panels and safety circuits where seals are routinely inspected. Feature: Durable materials—cover in polystyrene with zinc-plated sheet steel support rails—deliver long-term reliability in harsh environments. Business Impact: Extends service life and reduces replacement costs, enabling stable operation in manufacturing environments. Application: Suitable for environments subject to vibration, dust, and routine maintenance. Feature: Color coded in RAL 7035 and supply includes assembly parts for quick, predictable installation. Business Impact: Improves first-fit assembly speed and visual conformity across plant-wide installations, aiding procurement and inventory planning. Application: Applies to standardized wheeling of enclosures across multiple panels and lines, ensuring consistent aesthetics and performance.
Get a Quick Quote for a Rittal 9666290
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666290?
Enquire Now
FAQs
The 9666290 is designed to accept DIN rail mounted devices in ISV configurations, providing 2 WU by 2 U space with 500 mm width and 300 mm height. It fits standard 35 x 15 mm support rails and includes 4 x 12 divider units to keep components organized, making it suitable for compact control panels and modular automation builds.
The cover is prepared for a lead seal, enabling tamper-evident sealing for critical circuits and distribution points. This feature simplifies compliance audits, reduces unauthorized access during maintenance, and supports streamlined service workflows since seals can be inspected quickly without removing enclosure hardware.
The module provides a width of 500 mm and a height of 300 mm, with a packed weight of approximately 1.52 kg. It includes two support rails and four divider units, all packaged to support straightforward transport and installation within standard control panels and IP-rated enclosures when configured accordingly.
Key considerations include CE conformity for European market compliance and compatibility with IP-rated configurations and SIL-related installations in typical industrial environments. While ETIM and ECLASS references are provided for classification (EC002525 and 27142411 respectively), verify exact enclosure ratings and device certifications with your system integrator based on your panel design and local requirements.
The supply includes assembly parts and two 35 x 15 mm support rails along with four 12-divider units, designed for straightforward DIN rail mounting. The 500x300 mm footprint fits standard panel spaces, and the color is RAL 7035 for easy matching across existing enclosures. Follow the included assembly guide to secure devices, install the lead-seal cover, and verify alignment with adjacent modules.
