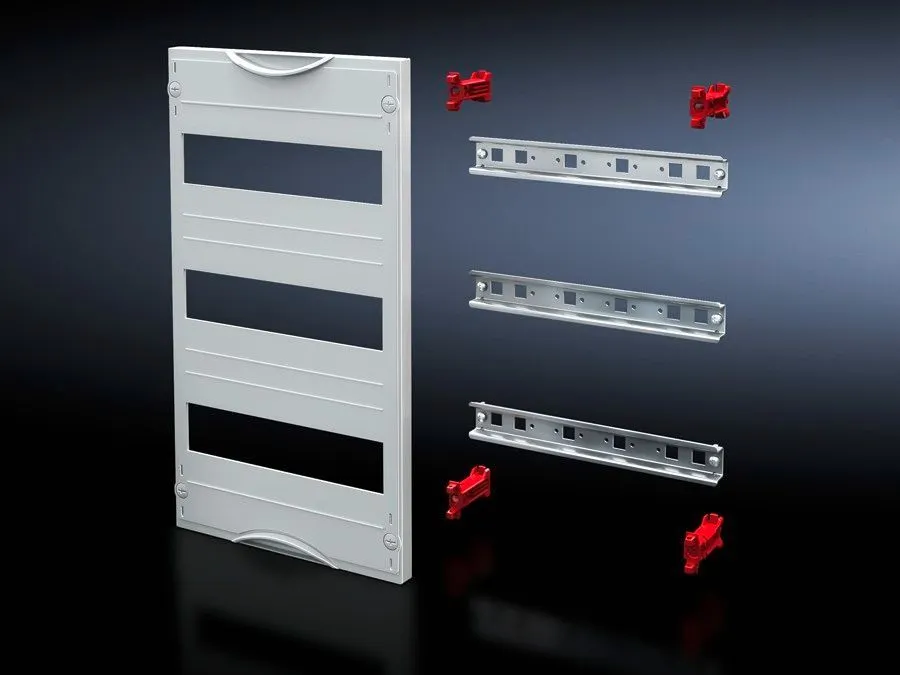

Rittal SV 9666.293 9666293 Enclosure Cover - Lead Seal Ready
Part Number: 9666293
Manufacturer
Rittal
Part number
9666293
Alt Part Number
SV 9666.293
Quick Summary
Rittal SV 9666.293 is a DIN rail mounted device module for 3 WU and 2 U space. It is designed to fit within a 750 mm deep enclosure system for compact, organized control panels. Note that the data does not list CE, IP, or SIL certifications; verify applicable compliance during procurement and installation. Beyond mounting, it supports scalable internal arrangements with standard assembly parts to speed commissioning. The consistent color and finish (RAL 7035) aids maintenance planning and facilitates asset management across plant cabinets.
Product Information
Extended Description
9666293 Rittal: SV DIN rail mounted device module (ISV), 3 WU (750 mm), 2 U (300 mm), 6 x 12 divider units
Article number
SV 9666.293
Product description
To accommodate DIN rail mounted devices. With support rails 35 x 15 mm. Cover is prepared for a lead seal.
Material
Cover: Polystyrene | Support rail: Sheet steel, zinc-plated | Cover: Polystyrene
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Width:Â 750 mm | Height:Â 300 mm
Size
Width units (WU) @ 250 mm:Â 3 | Height units (U) @ 150 mm:Â 2 | Max. pitch units @ 18 mm:Â 72
Number of support rails
2
Number of cut-outs
6
Packs of
1 pc(s).
Weight/pack
2.46 kg
Customs tariff number
85369001
EAN
4028177676282
ETIM 9
EC002525
ECLASS 8.0
27142411
Product description
SV DIN rail mounted device module (ISV), 3 WU (750 mm), 2 U (300 mm), 6 x 12 divider units
Feature: DIN rail mounted device module supports 3 WU (750 mm) and 2 U (300 mm) within a 750 mm wide enclosure. Business impact: Enables scalable, space-efficient device layouts, reducing panel footprint and simplifying future expansion. Application: Ideal for control cabinets needing flexible device inserts and orderly cabling. Long-tail keywords integrated: DIN rail devices, 3 WU, 2 U height, enclosure compatibility. Feature: Material and finish—cover in polystyrene, support rail steel (zinc-plated), color RAL 7035. Business impact: Durable, easy-to-clean surface with standardized color coding for quick identification. Application: Suitable for harsh industrial environments and consistent maintenance workflows. Long-tail keywords: RAL 7035 color, zinc-plated rails, enclosure aesthetics. Feature: Divider system—6 x 12 divider units, 2 support rails, 6 cut-outs. Business impact: Flexible internal segmentation supports organized wiring and modular device placement. Application: Complex automation panels with multiple devices and components. Long-tail keywords: divider units, 6 cut-outs, wiring channels. Feature: Ready-to-install kit—supply includes assembly parts; weight per pack 2.46 kg; single-pack packaging. Business impact: Reduces field assembly time and human error, accelerating commissioning. Application: OEM builds and retrofit projects requiring fast deployment. Long-tail keywords: assembly parts included, weight/pack, packaging. Feature: Procurement data and standards—EAN, ETIM 9, ECLASS 8.0, customs tariff. Business impact: Improves BOM accuracy and ERP data synchronization. Application: Streamlined purchasing and supplier data management. Long-tail keywords: EAN 4028177676282, ETIM EC002525, ECLASS 27142411. Feature: Lead seal readiness—cover prepared for a lead seal. Business impact: Enhances security and regulatory compliance in controlled environments. Application: Sealed panel installations and regulated applications.
Get a Quick Quote for a Rittal 9666293
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666293?
Enquire Now
FAQs
Yes. SV 9666.293 is a DIN rail mounted device module designed to fit standard DIN rails and two support rails (35 x 15 mm). It is intended for 3 WU and 2 U configurations inside a 750 mm wide enclosure, making it broadly compatible with common control cabinet architectures.
Key specs include 3 WU (750 mm) width and 2 U (300 mm) height, with six divider units of 12 sections each. The enclosure supports six cut-outs and two support rails, enabling flexible device placement and tidy wiring paths for multi-device installations.
Industries with compact control panels and modular device mounting benefit most, such as factory automation, process control, and electrical infrastructure enclosures. The 3 WU / 2 U configuration supports scalable layouts for PLCs, relays, and small I/O modules within standardized Rittal enclosures.
The provided data does not list CE, IP, or SIL certifications. For regulatory compliance, verify applicable standards with the supplier and ensure installed panels meet local CE marking, IP protection, and SIL requirements for your application and environment.
Including assembly parts reduces field assembly time and error rates, while the lead-seal-ready cover enhances security in regulated installations. Together, these features shorten commissioning cycles, improve panel reliability, and lower total cost of ownership in ongoing maintenance and routine upgrades.
