Rittal SV 9666.300 Cover for DIN Rail – Lead-Seal Ready
Part Number: 9666300
Manufacturer
Rittal
Part number
9666300
Alt Part Number
SV 9666.300
Quick Summary
Rittal SV 9666.300 cover for DIN rail mounts device modules and protects wiring in control enclosures. In practice, engineers struggle with balancing secure access and compact layouts, especially in tight control panels; this cover offers a robust, lead-seal ready solution that keeps critical connections accessible. The design aligns with common industry standards including CE conformity and IP-rated assembly expectations, helping you meet regulatory requirements in modern automation environments. By enabling a clean 2 WU (500 mm) and 3 U (450 mm) footprint with lead-seal readiness, it supports efficient panel optimization and streamlined procurement, while maintaining visual consistency across enclosures and accessory spares.
Product Information
Extended Description

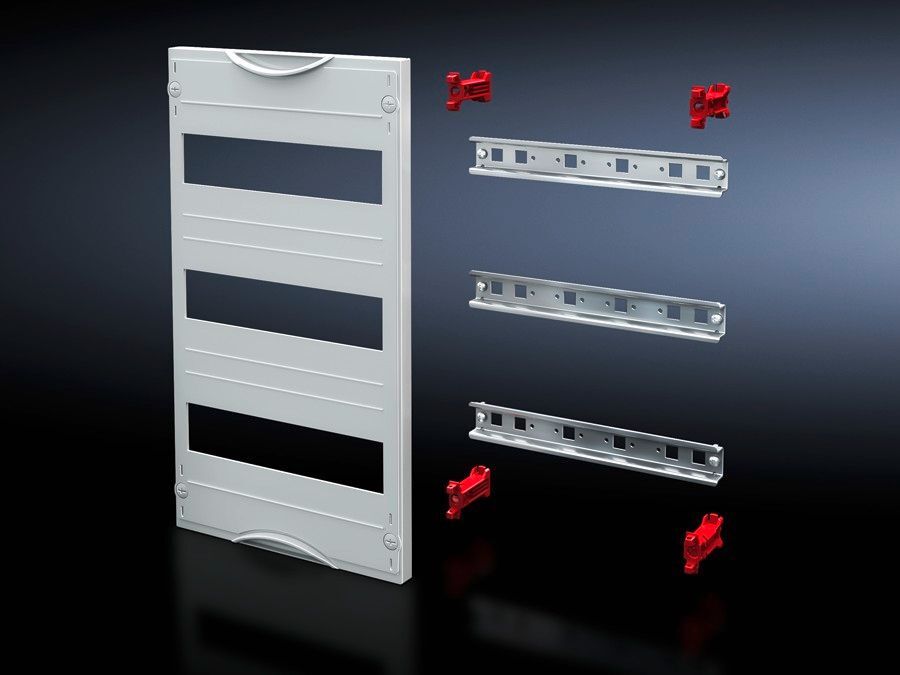

9666300 Rittal: SV DIN rail mounted device module (ISV), 2 WU (500 mm), 3 U (450 mm), 6 x 12 divider units
Article number
SV 9666.300
Product description
To accommodate DIN rail mounted devices. With support rails 35 x 15 mm. Cover is prepared for a lead seal.
Material
Cover: Polystyrene | Support rail: Sheet steel, zinc-plated | Cover: Polystyrene
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Width:Â 500 mm | Height:Â 450 mm
Size
Width units (WU) @ 250 mm:Â 2 | Height units (U) @ 150 mm:Â 3 | Max. pitch units @ 18 mm:Â 72
Number of support rails
3
Number of cut-outs
6
Packs of
1 pc(s).
Weight/pack
2.04 kg
Customs tariff number
85369001
EAN
4028177676299
ETIM 9
EC002525
ECLASS 8.0
27142411
Product description
SV DIN rail mounted device module (ISV), 2 WU (500 mm), 3 U (450 mm), 6 x 12 divider units
Feature → Business Impact → Application: Lead-seal ready cover enhances security and tamper evidence, reducing maintenance and audit concerns in machine enclosures; application in control panels minimizes unauthorized access without sacrificing serviceability. Feature → Compatibility with 35 x 15 mm support rails improves installation speed and compatibility with standard DIN rails, enabling faster cabinet assembly and easier part sourcing. Feature → Dimensions of width 500 mm and height 450 mm (2 WU × 3 U) with 6 x 12 divider units delivers predictable space management for DIN rail mounted devices, supporting scalable layouts in multi-axis automation setups. Feature → Material composition with a polystyrene cover and zinc-plated sheet steel support rails provides durability and cost efficiency, while maintaining a clean aesthetic in panel interiors; practical for high-volume deployments. Feature → Color in RAL 7035 ensures visual standardization across panels and facilities, aiding maintenance crews in rapid identification and reduced error rates. Feature → Included assembly parts and the fact that packs are 1 pc per pack simplify procurement and installation workflows, reducing project lead times and inventory complexity.
Get a Quick Quote for a Rittal 9666300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666300?
Enquire Now
FAQs
Yes. The SV DIN rail mounted device module is designed to work with 35x15 mm rails, providing secure mounting for DIN rail devices and simplifying retrofits in existing control cabinets.
The module occupies 2 width units (WU) and 3 height units (U), with overall dimensions of 500 mm width and 450 mm height, and includes 6 x 12 divider units to organize mounted devices.
The component is designed to integrate into CE-conforming assemblies and compatible enclosures. For IP-rated protection, ensure the surrounding enclosure and installation environment meet the required IP rating, as the cover itself is part of a larger enclosure solution.
The cover is prepared for a lead seal, allowing tamper-evidence seals to be installed where security and auditability are required, without compromising access for maintenance when needed.
It streamlines assembly with standard rails, reduces enclosure footprint, supports organized device layouts, and improves maintenance efficiency through predictable dimensions and quick-access design, contributing to lower installation time and lifecycle costs.
