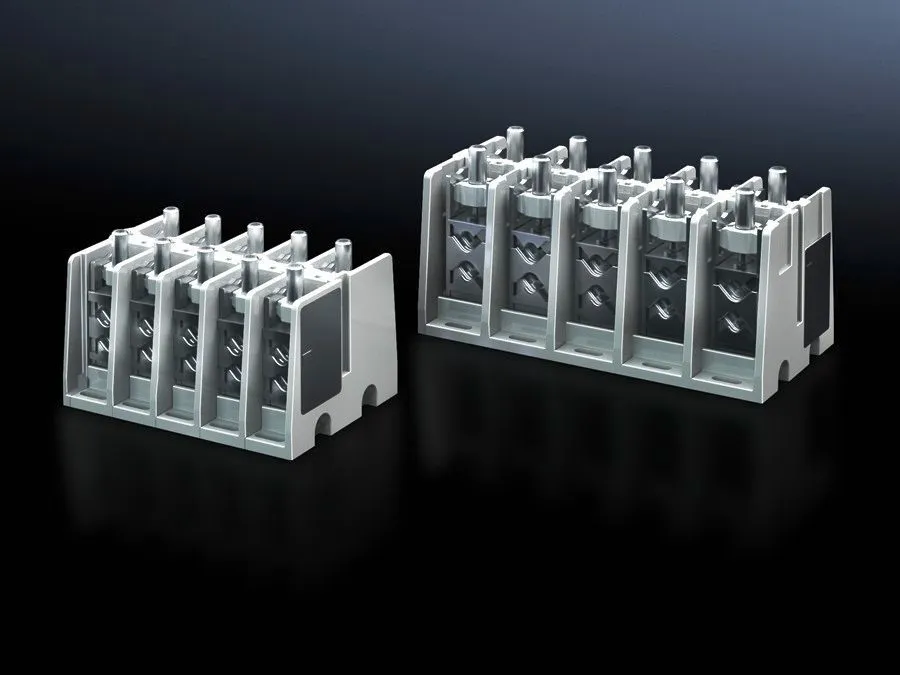

Rittal 9666340 SV ISV Terminal Block - 5-pole, 250A, 690V
Part Number: 9666340
Manufacturer
Rittal
Part number
9666340
Alt Part Number
SV 9666.340
Quick Summary
The SV ISV terminal block is a high-current connection solution designed for enclosure-based power distribution in control panels and switchgear. In practical settings, engineers often struggle with secure, space-efficient conductor termination and safe access for maintenance. The device supports a 5-pole layout with a 250 A maximum current at 690 V, accommodating round conductors 16–150 mm² and laminated copper bars up to 17x21 mm, all housed in a durable Duroplastic body (RAL 7035). While explicit certifications aren’t listed here, this design aligns with standard industrial enclosure practices to help reduce installation risk and streamline panel builds. Use this block to improve reliability, ease of assembly, and overall system throughput in your electrical infrastructure projects.
Product Information
Extended Description
9666340 Rittal: SV Connection terminal block (ISV), 250 A, 690 V, 5-pole, round conductor connection, 1x16-150/2x16-70 mm², clamping area BH: 17x21 mm
Article number
SV 9666.340
Product description
For connecting copper and aluminium conductors. For laminated copper bars or solid and stranded conductors with a pressed wire end ferrule.
Material
Duroplastic
Colour
RAL 7035
Supply includes
Assembly parts
Assembly instruction
Contact hazard protection module 9666.020 is additionally required to cover the connection terminal block.
Rated current max.
250 A
Number of poles
5-pole
Connection of round conductors
16 - 150 mm²
Clamping area for laminated copper bars (W x H)
17 x 21 mm
Packs of
1 pc(s).
Weight/pack
3.2 kg
Customs tariff number
39211900
EAN
4028177676329
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Connection terminal block (ISV), 250 A, 690 V, 5-pole, round conductor connection, 1x16-150/2x16-70 mm², clamping area BH: 17x21 mm
Feature: 250 A maximum current and 690 V rating enable direct, high-power terminations within compact enclosures. Benefit: Supports robust power distribution in control panels and switchgear without needing multiple devices. Application: Suitable for industrial automation panels where reliability and space efficiency are critical. Feature → Business Impact → Application: 1) Round conductor connection up to 16–150 mm² provides a versatile wiring path; Impact: reduces the number of components and simplifies wiring schemes; Application: power distribution inside machine enclosures. 2) Laminated copper bar compatibility (BH 17x21 mm) allows straightforward integration with bus bars; Impact: minimizes resistance and improves current sharing; Application: panel busbar connections in compact layouts. 3) Duroplastic body in RAL 7035 offers durable, color-coded housing; Impact: enhances longevity and easy identification during maintenance; Application: interior enclosure installation. 4) Assembly parts included with hazard protection module 9666.020 required for coverage; Impact: safer installation and reduced risk of contact hazards; Application: controlled environment assembly. 5) 5-pole construction and 1x16-150/2x16-70 mm² range support streamlined termination for multi-conductor circuits; Impact: faster assembly and consistent performance; Application: multi-phase control circuits. 6) Pack of 1 with 3.2 kg weight per pack simplifies stocking and inventory planning; Impact: predictable logistics and installation planning; Application: material handling in panel assembly.
Get a Quick Quote for a Rittal 9666340
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666340?
Enquire Now
FAQs
Begin by ensuring the enclosure provides adequate space for a 5-pole block and that conductor sizes fall within 16 to 150 mm² for round conductors. Use the included assembly parts and align the block with the mounting pattern. Remember that a hazard protection module 9666.020 is required to cover the connection terminals for safe operation.
The SV ISV supports round conductors from 16 to 150 mm² and can also accommodate laminated copper bars up to 17x21 mm. It is suitable for copper and aluminium conductors, as well as laminated copper bars, enabling versatile wiring within a single terminal block.
Yes. With a rated current of up to 250 A and a voltage rating of up to 690 V, this block supports demanding, high-current panel applications such as power distribution, control cabinets, and switchgear. Its 5-pole configuration allows organized multi-phase terminations in compact layouts.
The provided data does not list specific certifications (such as CE, SIL, or IP ratings). For confirmation on current accreditation, consult Rittal or the supplier documentation. The product design aligns with typical industry safety and enclosure standards, but please verify certifications for your project requirements.
The 9666340 SV ISV Terminal Block offers durable Duroplastic housing and straightforward round/conductor and lamination connections, which reduces installation time and torque variability. The hazard protection module option enhances safety, potentially lowering maintenance costs and risk exposure in ongoing operations, while standardization of components can streamline stocking and panel assembly.
