Rittal SV 9666.380 NH Fuse-Switch Module - Lead Seal Ready
Part Number: 9666380
Manufacturer
Rittal
Part number
9666380
Alt Part Number
SV 9666.380
Quick Summary
SV NH fuse-switch disconnector module for 1 WU x 2 U enclosures enables straightforward mounting of RiLine NH disconnectors in control panels. Engineers often struggle with lead-seal compatibility and space constraints, causing delays and wiring hazards; this module simplifies tamper evidence while keeping the installation neat and accessible. Certifications such as CE marking, IP ratings, and SIL standards are not specified in the provided data, so verify these with your supplier for critical safety compliance. The unit’s 250 mm width and 300 mm height support 2 x size 00 disconnectors and integrate smoothly with RiLine assemblies, reducing installation time while improving maintainability. The lead-seal-ready cover and durable materials enhance long-term reliability in industrial environments.
Product Information
Extended Description

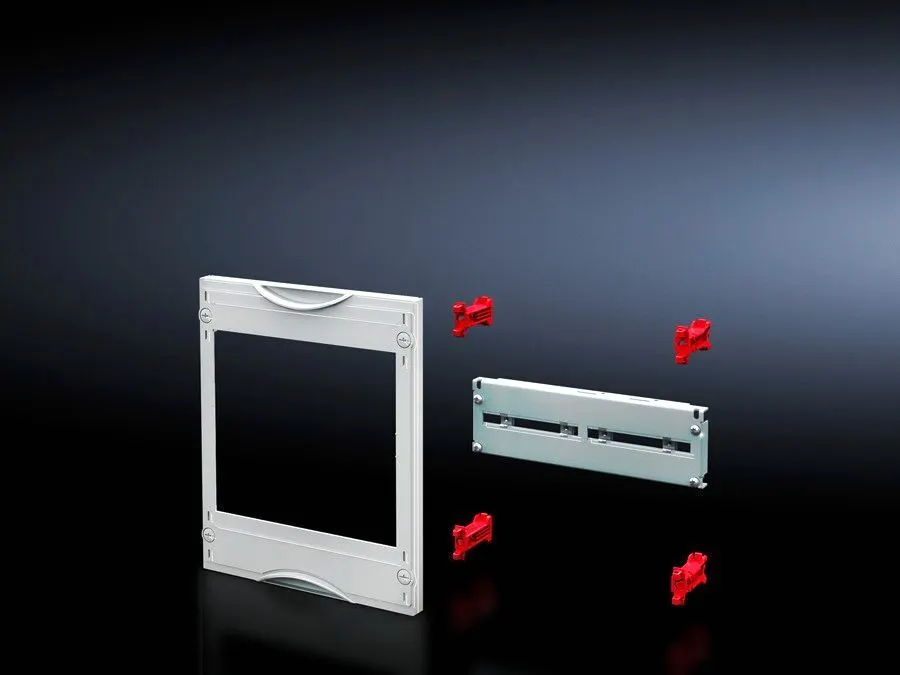

9666380 Rittal: SV NH fuse-switch disconnector module (ISV), 1 WU (250 mm), 2 U (300 mm), for 2 x size 00
Article number
SV 9666.380
Product description
Suitable for accommodating NH fuse-switch disconnectors for mounting plate assembly. Cover is prepared for a lead seal.
Material
Cover: Polystyrene | Cross member: Sheet steel
Colour
RAL 7035
Supply includes
Assembly parts
Assembly instruction
When using the NH fuse-switch disconnector 2 x size 2 (9344.210/.230/.250) or 1 x size 3 (9344.310/.330/.350), the disconnector cross-member 9666.420 and contact hazard protection module 9666.060 should be used as the module unit.
Dimensions
Width: 250 mm | Height: 300 mm
Size
Width units (WU) @ 250 mm: 1 | Height units (U) @ 150 mm: 2
To fit Model No.
9344.000
For size
2 x Gr. 00
Packs of
1 pc(s).
Weight/pack
0.84 kg
Customs tariff number
85369095
EAN
4028177676343
ETIM 9
EC002525
ECLASS 8.0
27400608
Product description
SV NH fuse-switch disconnector module (ISV), 1 WU (250 mm), 2 U (300 mm), for 2 x size 00
Lead-seal ready cover provides tamper-evident security for critical circuits. This feature reduces the risk of unauthorized access and simplifies regulatory audits, improving compliance and minimizing rework. It is particularly beneficial in RiLine NH fuse-switch disconnector installations where traceability matters. With a 1 WU x 2U footprint (250 mm x 300 mm), the module fits compact control panels while accommodating 2 x size 00 disconnectors. This sizing improves panel density, shortens wiring runs, and supports scalable expansion in evolving electrical infrastructure. Applications include distribution boards and cabinet-level protection systems. The enclosure uses a polystyrene cover and a sheet-steel cross member finished in RAL 7035, delivering lightweight handling with the rigidity needed for reliable mounting. The standard color aids in visual consistency in control rooms. Assembly guidance notes that when using NH fuse-switch disconnectors of 2 x size 2 or 1 x size 3, cross-member 9666.420 and contact hazard protection module 9666.060 should be added to form a complete module unit. This reduces guesswork during installation and ensures compliant, safe operation. It also aligns with RiLine mounting plate practices for future spare parts compatibility. Packs of 1 piece at 0.84 kg per pack support predictable logistics and minimal freight impact, making stocking easier for distributors and maintenance teams. The material mix and modular design translate to lower total cost of ownership through faster assembly and fewer field errors.
