Rittal SV 9666.390 NH fuse-switch module - Lead Seal Ready
Part Number: 9666390
Manufacturer
Rittal
Part number
9666390
Alt Part Number
SV 9666.390
Quick Summary
Rittal SV 9666.390 NH fuse-switch module enables secure housing for NH disconnectors in mounting plates. It addresses installation delays and compatibility risks by providing a standardized, lead-seal ready cover and structure. While specific CE, IP or SIL certifications are not listed in the data, the design aligns with ETIM EC002525 and ECLASS 27400608 standards, supporting RiLine NH assemblies. This combination delivers value through streamlined panel builds, improved safety, and predictable procurement for industrial control systems.
Product Information
Extended Description

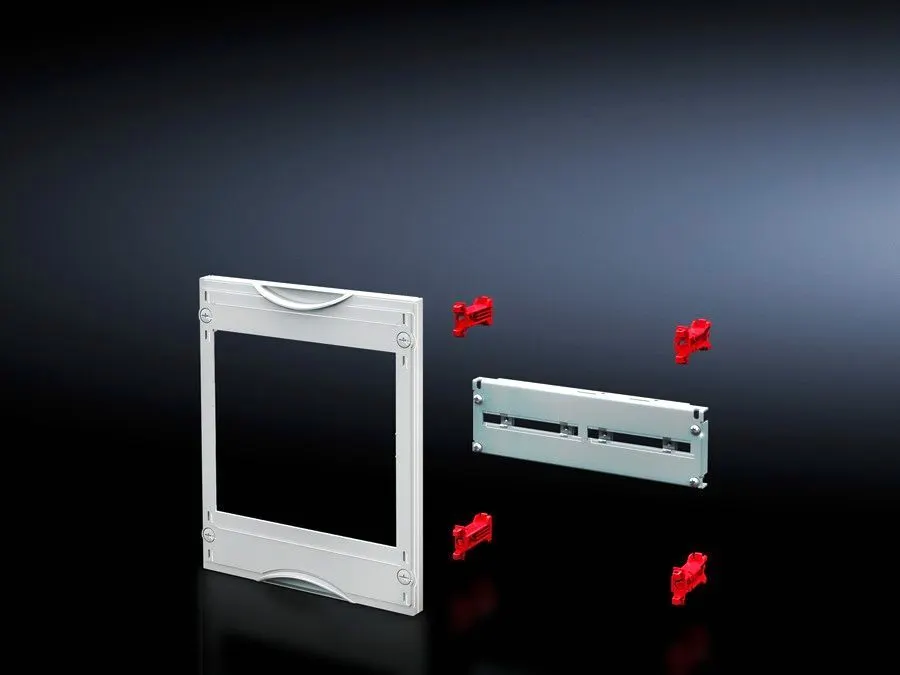

9666390 Rittal: SV NH fuse-switch disconnector module (ISV), 2 WU (500 mm), 2 U (300 mm), for 4 x size 00
Article number
SV 9666.390
Product description
Suitable for accommodating NH fuse-switch disconnectors for mounting plate assembly. Cover is prepared for a lead seal.
Material
Cover: Polystyrene | Cross member: Sheet steel
Colour
RAL 7035
Supply includes
Assembly parts
Assembly instruction
When using the NH fuse-switch disconnector 2 x size 2 (9344.210/.230/.250) or 1 x size 3 (9344.310/.330/.350), the disconnector cross-member 9666.420 and contact hazard protection module 9666.060 should be used as the module unit.
Dimensions
Width: 500 mm | Height: 300 mm
Size
Width units (WU) @ 250 mm: 2 | Height units (U) @ 150 mm: 2
To fit Model No.
9344.000
For size
4 x Gr. 00
Packs of
1 pc(s).
Weight/pack
1.6 kg
Customs tariff number
85369095
EAN
4028177676350
ETIM 9
EC002525
ECLASS 8.0
27400608
Product description
SV NH fuse-switch disconnector module (ISV), 2 WU (500 mm), 2 U (300 mm), for 4 x size 00
Feature: 500 mm width and 300 mm height with 2 WU x 2 U sizing. Business impact: standardized footprint simplifies panel layout, reduces integration time, and minimizes the risk of incorrect mounting. Application: RiLine NH fuse-switch disconnector mounting plate assemblies where space and compatibility matter. Feature: Cover is prepared for a lead seal and uses a Polystyrene exterior with a sheet steel cross member. Business impact: enhanced security and mechanical durability in harsh environments, while maintaining clear visibility inside the enclosure. Application: control cabinets requiring tamper-evident integrity and robust structural support. Feature: Color option in RAL 7035 and clear assembly instructions for 9344.000 compatibility. Business impact: consistent aesthetics and straightforward installation, decreasing field adjustments. Application: new builds and retrofits where standard enclosure appearance matters. Feature: Assembly guidance that specifies when to use cross-member 9666.420 and hazard protection module 9666.060. Business impact: reduces trial-and-error during installation, improves operator safety, and ensures compliant wiring layouts. Application: panel OEMs and integrators assembling 4 x Gr. 00 configurations. Feature: Weight per pack 1.6 kg and packs of 1 pc. Business impact: easy handling and scalable procurement for batch installations. Application: modular deployment in medium- to large-scale switchgear projects.
