Rittal SV 9666.583 NH fuse-switch - 3 WU, 3 U
Part Number: 9666583
Manufacturer
Rittal
Part number
9666583
Alt Part Number
SV 9666.583
Quick Summary
Rittal SV 9666.583 NH fuse-switch disconnector module isolates NH slimline busbars in control cabinets. This design addresses installation challenges such as cable routing, busbar alignment, and compatibility with existing SV frames. While CE marking, IP ratings, and SIL/PL certifications are not specified in the data, verify these requirements with the supplier for regulatory compliance. By standardizing dimensions and providing assembly parts, it reduces field rework and commissioning time while improving safety margins. The module’s 750 mm width and 450 mm height fit standard enclosures, with a 100 mm center-to-center busbar spacing and compatibility for 10 x size 00 configurations, delivering consistent, scalable power distribution for industrial automation projects.
Product Information
Extended Description

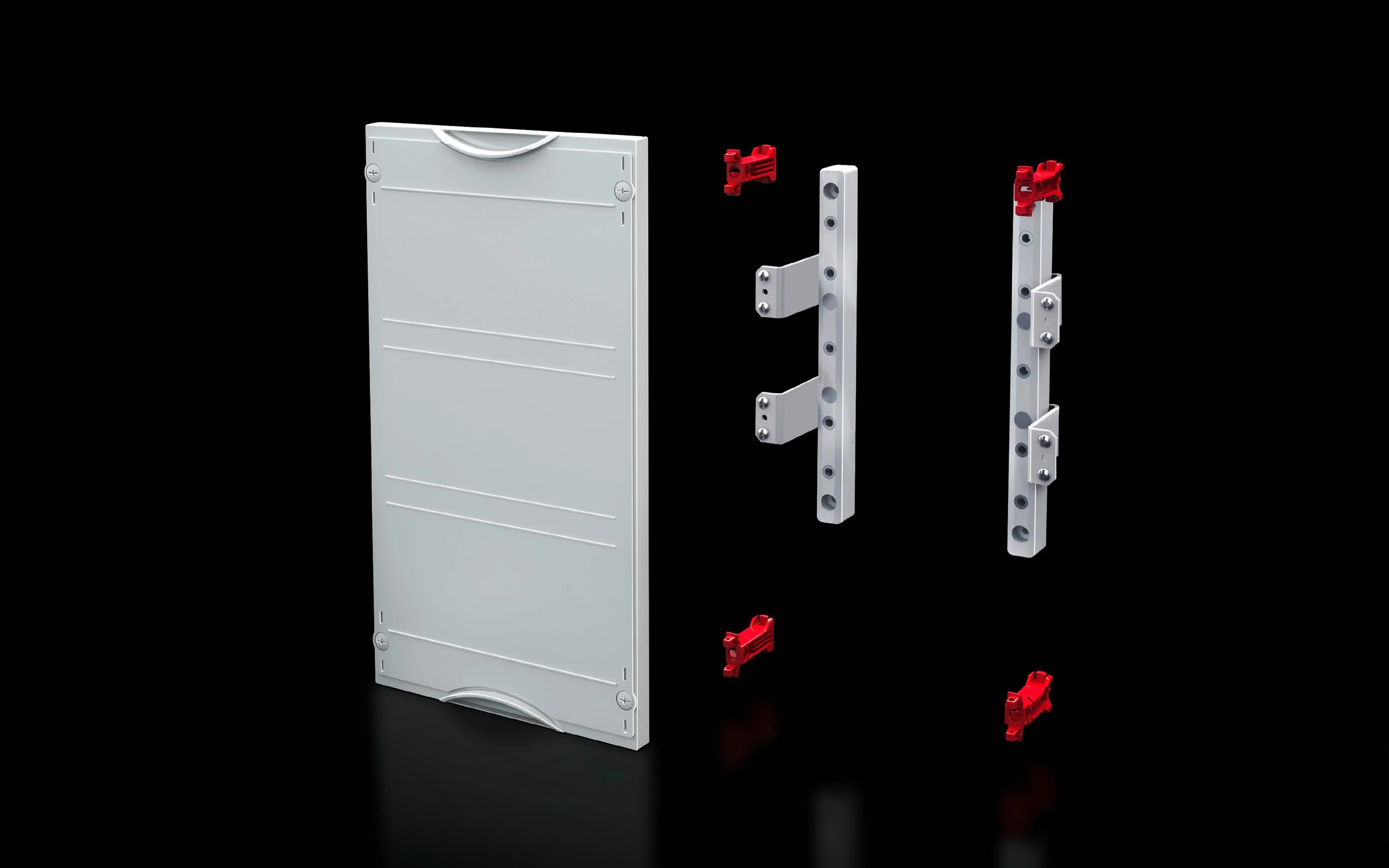

9666583 Rittal: SV NH fuse-switch disconnector module (ISV), 3 WU (750 mm), 3 U (450 mm), for 10 x size 00, (SV 9346XXX, 100 mm)
Article number
SV 9666.583
Product description
For NH slimline fuse-switch disconnectors, sizes 00 to 3 (3-pole, 100/185 mm bar centre distance).
Material
Cover: Polystyrene | Holder: Fibreglass-reinforced plastic
Colour
RAL 7035
Supply includes
Assembly parts
Note
In order to ensure problem-free cable connection, a contact hazard protection module or an N/PE busbar module must be installed above or below the NH slimline fuse-switch disconnector modules.
Dimensions
Width: 750 mm | Height: 450 mm
Size
Width units (WU) @ 250 mm: 3 | Height units (U) @ 150 mm: 3
For size
10 x Gr. 00
To fit Model No.
9346.020
To fit busbars
40 x 10 mm
Centre-to-centre spacing of busbars
100 mm
Packs of
1 pc(s).
Weight/pack
3.34 kg
Customs tariff number
85369095
EAN
4028177676473
ETIM 9
EC002525
ECLASS 8.0
27400608
Product description
SV NH fuse-switch disconnector module (ISV), 3 WU (750 mm), 3 U (450 mm), for 10 x size 00, (SV 9346XXX, 100 mm)
Feature: Footprint and compatibility → Business Impact: Simplifies cabinet planning and reduces enclosure-practice mismatch → Application: Optimized for 750 mm × 450 mm enclosures with 3 WU and 3 U, 100 mm busbar spacing and 10 × size 00 configurations. Feature: Materials and finish → Business Impact: Durable construction and clear identification across equipment fleets → Application: Indoor control panels and switchgear where RAL 7035 grey is standard. Feature: Assembly and packaging → Business Impact: lowers procurement time and accelerates onboarding of panel builders → Application: OEMs integrating SV 9346xxx frames with minimal additional parts. Feature: Safety alignment → Business Impact: enhances cable connection safety and reduces risk of contact hazards → Application: installations requiring a hazard-protection module above or below the NH slimline modules. Feature: Compliance data support → Business Impact: improves procurement data accuracy and traceability → Application: projects using SV 9346xxx family and 40 × 10 mm busbars for scalable expansion.
