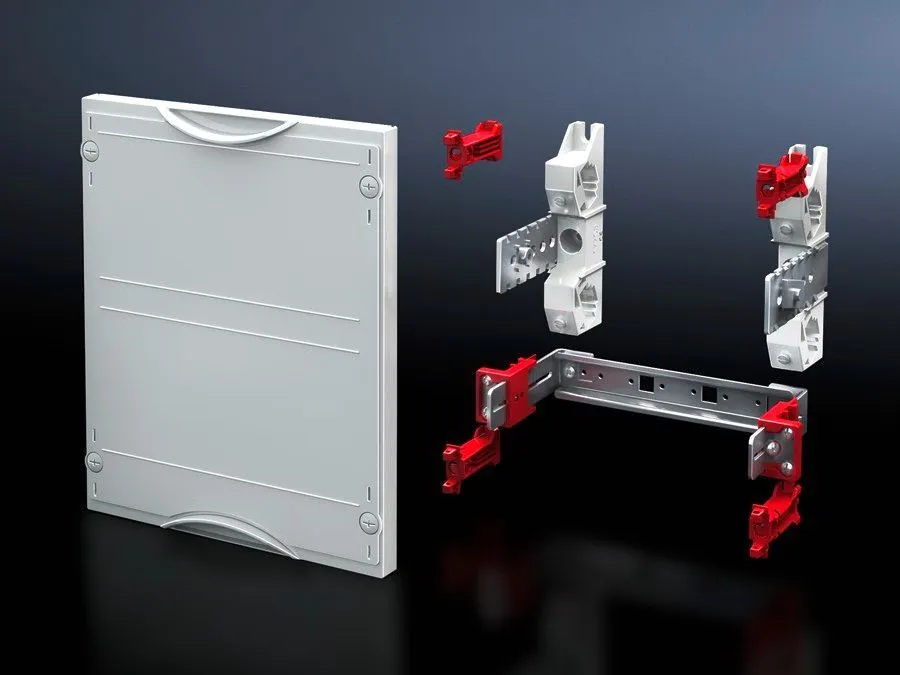

Rittal 9666600 SV Busbar module N/PE - Lead-seal ready
Part Number: 9666600
Manufacturer
Rittal
Part number
9666600
Alt Part Number
SV 9666.600
Quick Summary
Rittal 9666600 SV Busbar module N/PE is a busbar attachment accessory for N and PE inside enclosure systems. In compact panels, busbar routing and lead sealing can be a frequent source of installation delays and maintenance challenges. This module aligns with industry classifications such as ETIM 9 EC002525 and ECLASS 8.0 27400610, while CE-compliance and IP considerations are common market requirements to verify with current datasheets. The 500 mm width and 300 mm height, delivered as a 2 WU by 2 U configuration in RAL 7035, help standardize mounting, improve audit trails, and support scalable enclosure design for higher reliability and faster project delivery.
Product Information
Extended Description
9666600 Rittal: SV Busbar module N/PE (ISV), 2 WU (500 mm), 2 U (300 mm)
Article number
SV 9666.600
Product description
For attaching busbars 12 x 5/10 mm, 20 x 5/10 and 30 x 5/10 mm for N and PE. Cover is prepared for a lead seal.
Material
Cover: Polystyrene | Holder: Fibreglass-reinforced plastic | Support rail: Sheet steel, zinc-plated
Colour
RAL 7035
Dimensions
Width: 500 mm | Height: 300 mm
Size
Width units (WU) @ 250 mm: 2 | Height units (U) @ 150 mm: 2
To fit busbars
12 x 5/10 mm
Packs of
1 pc(s).
Weight/pack
2.057 kg
Customs tariff number
85369095
EAN
4028177676497
ETIM 9
EC002525
ECLASS 8.0
27400610
Product description
SV Busbar module N/PE (ISV), 2 WU (500 mm), 2 U (300 mm)
Feature: SV Busbar module N/PE (ISV) fits 12 x 5/10, 20 x 5/10 and 30 x 5/10 mm busbars. Business Impact: Flexible mounting options reduce custom fabrication and wiring mistakes. Application: Use in N/PE distribution within modular Rittal enclosures to streamline panel assembly. Feature: Dimensions 500 mm width by 300 mm height with 2 WU x 2 U. Business Impact: Fits common enclosure footprints, enabling quick retrofits and scalable layouts. Application: Ideal for mid-size switchgear and control panels. Feature: Material composition—cover polystyrene, holder fibreglass-reinforced plastic, support rail zinc-plated sheet steel. Business Impact: Enhances durability and resistance to everyday workshop and installation stresses. Application: Long service life in indoor cabinet environments. Feature: Color in RAL 7035. Business Impact: Visual consistency supports standardized labeling and easier asset management. Application: Maintains uniform appearance across equipment and enclosures. Feature: Lead seal prepared for the cover. Business Impact: Improves tamper evidence and regulatory compliance in controlled environments. Application: Suitable for audited electrical installations and regulated facilities. Feature: Pack and weight—1 piece per pack, weight 2.057 kg. Business Impact: Predictable logistics and handling, simplifying procurement and shipping. Application: Smooth supply chain planning for installers and operators.
Get a Quick Quote for a Rittal 9666600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666600?
Enquire Now
FAQs
Begin by verifying the enclosure footprint is 500 mm wide and 300 mm high to accommodate the SV Busbar module N/PE (ISV) with a 2 WU by 2 U configuration. Insert the busbars into the designated 12 x 5/10 mm, 20 x 5/10 mm, or 30 x 5/10 mm slots, align with the holder, and secure the cover. Use the lead seal-ready feature to ensure tamper evidence where required. Ensure the rail and support components are clean and free of deformities before installation, then close and seal the enclosure per standard procedures.
The SV Busbar module N/PE supports busbars sized 12 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. This range provides flexibility for typical N and PE conductor arrangements within Rittal enclosure systems, enabling secure, code-compliant connections without factory-modified components. Ensure correct orientation and spacing during mounting for optimal electrical performance and lead-seal integrity.
The product data does not explicitly state CE certification or IP rating for the SV Busbar module N/PE. CE compliance and IP protection are common requirements for enclosure components; always verify the latest datasheet or contact the manufacturer for current certification status and applicable environmental ratings for your specific installation site.
The module uses a polystyrene cover, a fibreglass-reinforced plastic holder, and a zinc-plated sheet steel support rail, all finished in RAL 7035. This combination provides a durable, UV-resistant surface with stable mechanical support, ensuring long-term performance in indoor cabinet environments and consistent enclosure aesthetics.
The product ships as 1 piece per pack with a weight of 2.057 kg. This predictable weight, along with a single-item packing configuration, supports straightforward logistics, accurate incoterms planning, and efficient on-site handling during installation in standard 500x300 mm panels.
