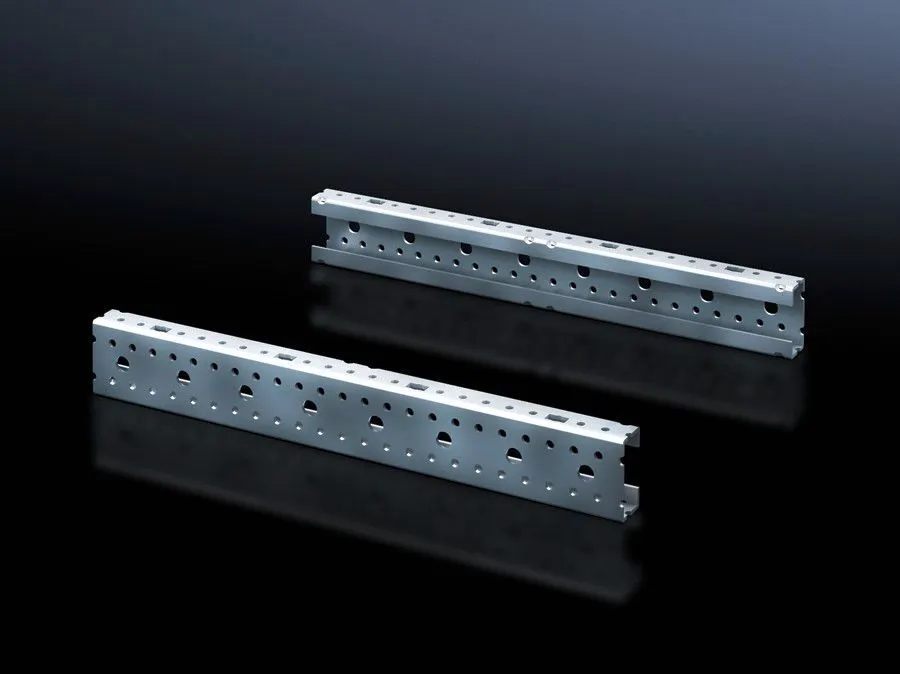

Rittal SV 9666.703 Mounting angle - 3 U (450 mm)
Part Number: 9666703
Manufacturer
Rittal
Part number
9666703
Alt Part Number
SV 9666.703
Quick Summary
SV 9666.703 mounting angle enables vertical sub-division of the support frame in Rittal VX/TS/SE enclosures. This solution addresses cluttered interiors and uneven module spacing by delivering a precise 3 U (450 mm) height. The component is cataloged with ETIM EC002525 and ECLASS 8.0 27400613 classifications, helping procurement align with your BOM and data standards; note PCF category indicates 4 kg CO2 eq per pack, Category B. While the part itself carries these classifications, system-level compliance (CE/IP) depends on the assembled enclosure and installation practices. Leveraging this mounting angle improves cable routing, simplifies accessory mounting, and supports scalable configurations for future expansion using TS enclosure accessories, ISV mounting, and zinc-plated sheet steel hardware.
Product Information
Extended Description
9666703 Rittal: SV Mounting angle (ISV), 3 U (450 mm), for TS, SE
Article number
SV 9666.703
Product description
For vertical sub-division of the support frame in the enclosure.
Material
Sheet steel
Surface finish
Zinc-plated
Dimensions
Height: 450 mm
Size
Height units (U) @ 150 mm: 3
Packs of
2 pc(s).
Weight/pack
1.06 kg
PCF per pack (cradle-to-gate)
4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
39269097
EAN
4028177676596
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Mounting angle (ISV), 3 U (450 mm), for TS, SE
Feature: 3 U (450 mm) height and ISV mounting angle design. Business impact: Enables precise vertical subdivision of the enclosure frame, improving cable routing and module placement, which reduces installation time and post-install rework. Application: TS and SE enclosures that require organized bays for components and cables. Feature: Sheet steel construction with zinc-plated finish. Business impact: Provides durable, corrosion-resistant hardware compatible with standard enclosure environments, lowering maintenance costs and extending service life. Application: Industrial cabinets in harsh or humid settings. Feature: Pack configuration of two per pack with weight 1.06 kg per pack. Business impact: Facilitates efficient stocking, easier handling on project sites, and predictable logistics planning. Application: Procurement planning for medium-size assemblies. Feature: PCF per pack 4 kg CO2 eq (Cat B). Business impact: Supports sustainability reporting and cradle-to-gate footprint awareness, aiding environmental compliance. Application: Corporate ESG documentation and supplier vetting. Feature: Compatibility with TS/SE enclosure families. Business impact: Reduces risk of misfit parts and accelerates installation by ensuring a natural fit within standard Rittal systems. Application: New deployments and retrofit projects seeking modular expansion. Insight: By aligning with ETIM EC002525 and ECLASS 8.0 classifications, data integrity across catalogs and ERP systems is improved, smoothing procurement and BOM workflows.
Get a Quick Quote for a Rittal 9666703
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666703?
Enquire Now
FAQs
The SV 9666.703 is an ISV mounting angle for vertical subdivision of the enclosure’s internal frame, specifically designed for TS and SE enclosures. It provides a 3 U (450 mm) height, enabling organized bays for components and cables. The part is manufactured from sheet steel with a zinc-plated finish and ships in packs of two, ensuring consistency across installations and replacements.
Each pack contains two mounting angles. The weight per pack is 1.06 kg, so a standard two-pack kit weighs 2.12 kg. This packaging pattern supports straightforward stocking and faster project setup, while also aligning with the product’s cradle-to-gate PCF metrics of 4 kg CO2 eq per pack.
The mounting angle is designed for TS and SE enclosure families to enable vertical subdivision of the internal support frame. For VX/TS/SE configurations, verify frame compatibility on-site to ensure a perfect fit, as enclosure variants may affect mounting hole patterns and alignment.
The mounting angle is made from sheet steel with a zinc-plated surface finish, providing durable corrosion resistance suitable for industrial environments. The component supports a 3 U height (450 mm) and is intended to integrate with standard Rittal mounting practices in TS and SE enclosures.
Using the SV 9666.703 mounting angle streamlines installation by delivering precise alignment and repeatable bays, reducing the likelihood of misplacement and rework. Sustainability-wise, each pack has a cradle-to-gate PCF of 4 kg CO2 eq (Category B), and packaging in two-piece units supports efficient logistics and stock management.
