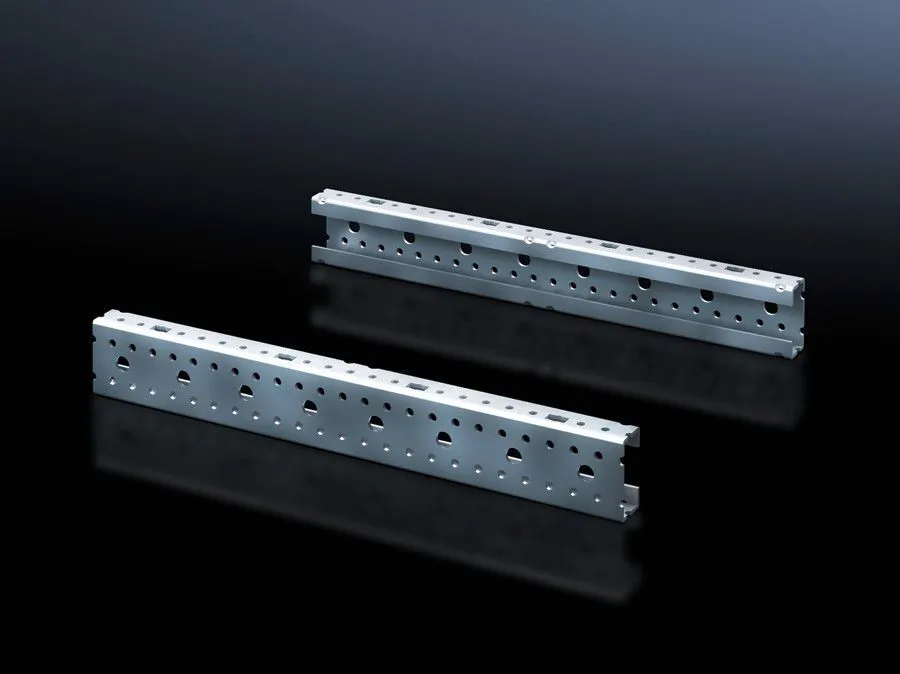

Rittal SV 9666.704 SV Mounting angle - 4U (600 mm) ISV
Part Number: 9666704
Manufacturer
Rittal
Part number
9666704
Alt Part Number
SV 9666.704
Quick Summary
Rittal SV Mounting angle 9666.704 is a mounting accessory that enables vertical sub-division of the enclosure support frame within TS/SE cabinets. This modular solution reduces on-site rework and misalignment when reconfiguring layouts, saving installation time and improving reliability. The data for this part references ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, while the PCF cradle-to-gate value of 5.4 kg CO2 eq per pack supports sustainability in procurement decisions. For engineers and procurement teams, it delivers predictable compatibility with ISV mounting components and helps optimize lifecycle cost through standardized, readily available parts. In practice, the 4U (600 mm) height and 2-pack packaging streamline logistics and stocking for industrial environments.
Product Information
Extended Description
9666704 Rittal: SV Mounting angle (ISV), 4 U (600 mm), for TS, SE
Article number
SV 9666.704
Product description
For vertical sub-division of the support frame in the enclosure.
Material
Sheet steel
Surface finish
Zinc-plated
Dimensions
Height: 600 mm
Size
Height units (U) @ 150 mm: 4
Packs of
2 pc(s).
Weight/pack
1.408 kg
PCF per pack (cradle-to-gate)
5.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
39269097
EAN
4028177676602
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Mounting angle (ISV), 4 U (600 mm), for TS, SE
Feature → Business Impact → Application: The SV 9666.704 is a sheet steel, zinc-plated mounting angle designed for vertical subdivision in TS/SE enclosures, enabling precise partitioning of the support frame. This improves cable management and device segregation, reducing installation time and post-install adjustments in factory automation lines and data centers. Feature → Business Impact → Application: With a 4U height and 600 mm footprint, it accommodates standard 19-inch racks and ISV configurations, supporting scalable cabinet design and straightforward retrofits in evolving control panels. Feature → Business Impact → Application: Two-pack packaging at 1.408 kg per pack simplifies inventory, shipping, and on-site handling, lowering storage space requirements and freight costs. Feature → Business Impact → Application: Zinc-plated sheet steel provides durability in harsh environments, delivering resistance to corrosion and long service life in industrial automation installations. Feature → Business Impact → Application: ETIM EC002525 and ECLASS 27400613 alignment ensures seamless integration with procurement systems and enables accurate part data across ERP workflows.
Get a Quick Quote for a Rittal 9666704
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666704?
Enquire Now
FAQs
Yes. The SV 9666.704 is designed specifically for vertical sub-division of the TS and SE enclosure support frames, providing a precise mounting plane for ISV configurations. It ships in two packs and utilizes standard sheet steel, ensuring straightforward integration with existing TS/SE setups and minimizing retrofit effort.
The mounting angle is 4U in height with a 600 mm dimension, using zinc-plated sheet steel. It is supplied in packs of two, with a weight of 1.408 kg per pack, simplifying logistics and on-site handling while preserving accurate fit within 19-inch cabinet architectures.
The SV 9666.704 aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613, enabling consistent data exchange in ERP and procurement workflows. This standardization helps ensure correct part selection, reduces sourcing errors, and supports automated cataloging and BOM generation.
Applications include modular control panels, VX/TS/SE enclosure configurations, and any scenario requiring reliable vertical sub-division of the enclosure frame. It supports orderly cable routing, device segregation, and future reconfiguration without fabricating new mounting surfaces, which is especially valuable in automation retrofit projects.
Yes. The PCF cradle-to-gate value is 5.4 kg CO2 eq per pack (Category B), reflecting a defined environmental footprint. Standardization reduces waste and stock variety, while durable zinc-plated steel extends service life, contributing to lower maintenance costs and improved total cost of ownership.
