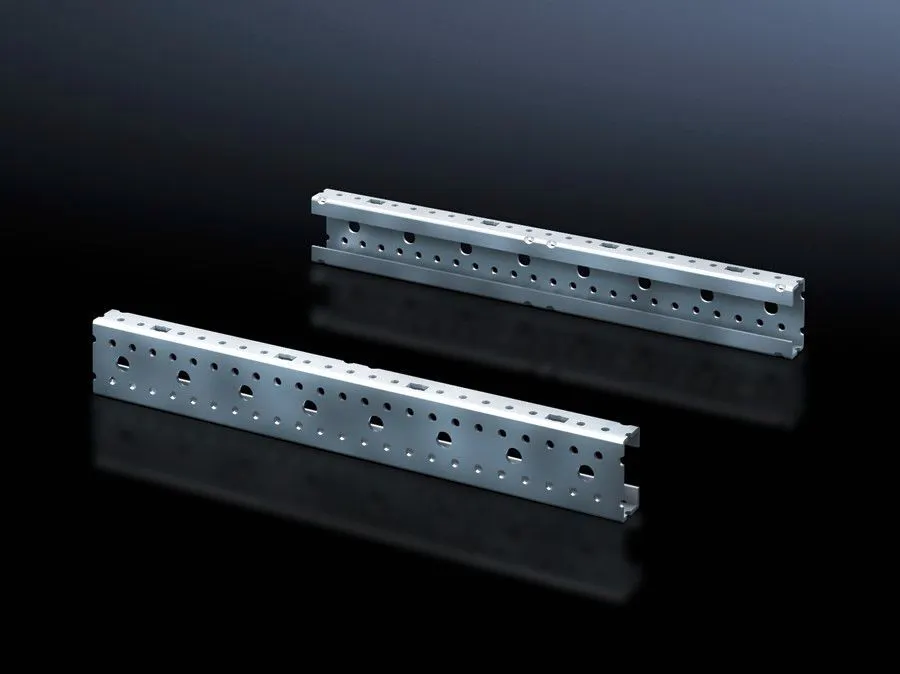

Rittal SV 9666.705 SV Mounting Angle - 5U (750 mm) Zinc-plated
Part Number: 9666705
Manufacturer
Rittal
Part number
9666705
Alt Part Number
SV 9666.705
Quick Summary
Rittal SV 9666.705 is a mounting angle used to vertically subdivide the support frame in VX/TS/SE enclosures. In practice, engineers often struggle with space optimization and inconsistent panel layouts when expanding modular enclosure systems. This part provides a robust, repeatable subdivision solution that improves cable management and speeds installation. It uses sheet steel with a zinc-plated finish and measures 750 mm in height, enabling a precise 5 U allocation. The component aligns with industry metadata standards such as ETIM EC002525 and ECLASS 8.0 27400613, supporting seamless BOM integration. Together with compatible mounting hardware, it helps reduce installation time, trim unnecessary parts, and deliver scalable enclosure layouts for growing automation projects.
Product Information
Extended Description
9666705 Rittal: SV Mounting angle (ISV), 5 U (750 mm), for TS, SE
Article number
SV 9666.705
Product description
For vertical sub-division of the support frame in the enclosure.
Material
Sheet steel
Surface finish
Zinc-plated
Dimensions
Height: 750 mm
Size
Height units (U) @ 150 mm: 5
Packs of
2 pc(s).
Weight/pack
1.84 kg
PCF per pack (cradle-to-gate)
7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177691513
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Mounting angle (ISV), 5 U (750 mm), for TS, SE
Feature → Business Impact → Application: The SV 9666.705 offers a 5 U (750 mm) vertical subdivision height, enabling precise space planning within TS/SE enclosures. Impact: Improves modularity and reduces rework during panel design; Application: Ideal for growing control cabinet layouts where space is at a premium and configurability matters. Feature → Business Impact → Application: Made from sheet steel with a zinc-plated finish, it delivers corrosion resistance and durability in demanding environments. Impact: Extends service life and lowers maintenance costs; Application: Suitable for industrial automation rooms and factory floors where exposure to humidity and dust is a concern. Feature → Business Impact → Application: Packaged as 2 pieces per pack with a weight of 1.84 kg per pack, aiding logistics and inventory management. Impact: Simplified procurement and predictable shipping; Application: Supports just-in-time manufacturing and streamlined stock for enclosure accessories. Feature → Business Impact → Application: ETIM EC002525 and ECLASS 8.0 standard mappings align with modern procurement systems. Impact: Faster part replacement and accurate bill of materials; Application: Improves cross-system data integrity for engineering teams. Feature → Business Impact → Application: PCF per pack is 7 kg CO2 eq (Cat B), reflecting a sustainable footprint. Impact: Reduced environmental impact and clearer sustainability reporting; Application: Suitable for green manufacturing programs and internal carbon accounting. Feature → Business Impact → Application: Compatibility with VX/TS/SE frames enables straightforward installation using existing mounting rails. Impact: Shortens installation time and lowers skill barriers; Application: Benefit for plant electricians and commissioning engineers during cabinet upgrades.
