Rittal SV 9666.707 SV Mounting angle - 7 U (1050 mm)
Part Number: 9666707
Manufacturer
Rittal
Part number
9666707
Alt Part Number
SV 9666.707
Quick Summary
Rittal SV 9666.707 mounting angle enables vertical sub-division of the support frame in VX/TS/SE enclosures. In tight control panels, precise partitioning reduces cable congestion and improves serviceability, saving time during installation and future reconfigurations. The accessory aligns with industry classifications such as ETIM EC002525 and ECLASS 27400613, and leverages traceability through EAN 4028177691537. Its zinc-plated sheet steel construction delivers durable protection in demanding industrial environments, while the 7 U (1050 mm) height supports scalable layouts. By pairing with standard enclosure systems, it streamlines procurement and installation, delivering predictable, repeatable mounting for efficient project delivery and lifecycle cost control.
Product Information
Extended Description

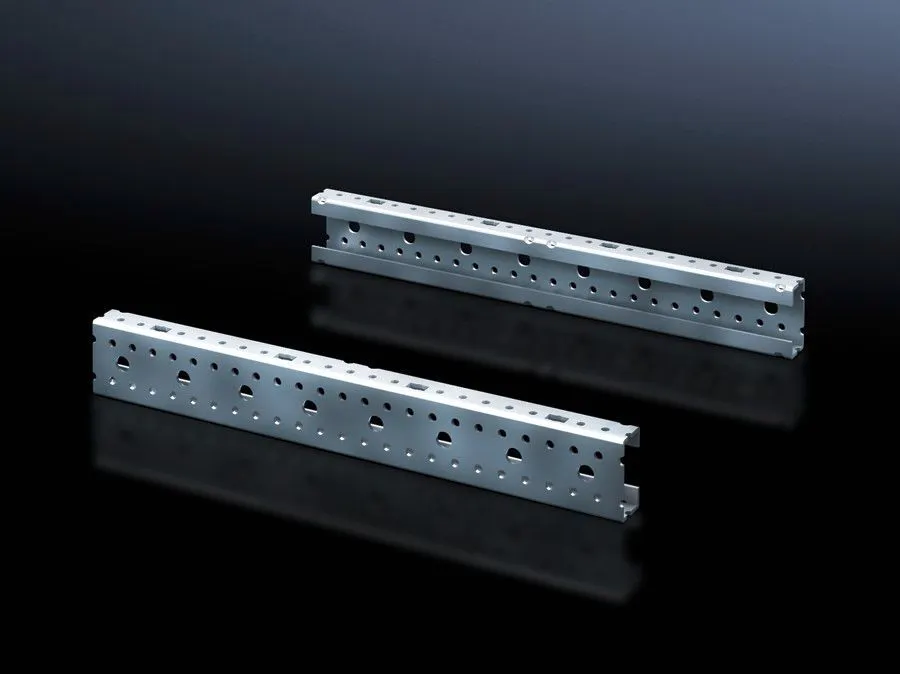

9666707 Rittal: SV Mounting angle (ISV), 7 U (1050 mm), for TS, SE
Article number
SV 9666.707
Product description
For vertical sub-division of the support frame in the enclosure.
Material
Sheet steel
Surface finish
Zinc-plated
Dimensions
Height: 1,050 mm
Size
Height units (U) @ 150 mm: 7
Packs of
2 pc(s).
Weight/pack
2.46 kg
PCF per pack (cradle-to-gate)
9.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177691537
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Mounting angle (ISV), 7 U (1050 mm), for TS, SE
Feature: Vertical sub-division of the enclosure support frame. Business Impact: Enables organized panel layouts, reducing misrouting and enabling clean cabling. Application: VX/TS/SE enclosures in control cabinets and industrial equipment. Feature: Material and finish. Business Impact: Zinc-plated sheet steel provides corrosion resistance and long-term durability in harsh environments, lowering maintenance needs. Application: Industrial automation environments with frequent temperature and humidity cycles. Feature: Dimensions and packing. Business Impact: 7 U height at 1,050 mm supports standardized rack spacing, while packs of two simplify procurement and inventory planning. Application: Regional or global projects requiring consistent hardware libraries. Feature: Weight and environmental footprint. Business Impact: Pack weight of 2.46 kg with cradle-to-gate PCF of 9.4 kg CO2 eq (Cat B) supports sustainability reporting and lower lifecycle costs. Application: Green procurement programs and ESG compliance. Feature: Standards alignment and compatibility. Business Impact: ETIM 9 EC002525 and ECLASS 8.0 27400613 alignment reduces sourcing risk and improves integration with BOMs. Application: Modern automation projects needing clear classification and easy supplier validation.
Get a Quick Quote for a Rittal 9666707
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666707?
Enquire Now
FAQs
The SV 9666.707 is designed for vertical sub-division of the support frame in VX/TS/SE enclosures, enabling organized panel layouts. It is sold in packs of two and uses standard mounting geometry to fit TS and SE variants, ensuring straightforward integration with existing enclosure systems.
Installing the SV 9666.707 supports vertical partitioning, which simplifies cable routing and component placement. This reduces wire loom complexity and shortens commissioning time, especially in compact panels where space is at a premium. The 7 U height matches common mounting schemes, aiding quick, repeatable layouts.
The product is classified under ETIM 9 EC002525 and ECLASS 27400613, with traceability via EAN 4028177691537. While specific SIL, CE, or IP ratings are not listed for this accessory, compliance with ETIM and ECLASS supports consistent procurement and interoperability within standardized electrical infrastructure.
Yes. The accessory uses zinc-plated sheet steel for durability, reducing maintenance needs in harsh environments. Pack-level weight is 2.46 kg, and cradle-to-gate PCF is 9.4 kg CO2 eq (Cat B), supporting sustainability reporting and potentially lowering lifecycle costs through longer service intervals and fewer replacements.
Plan for vertical subdivision within TS/SE enclosures and verify BOM alignment with ETIM/ECLASS classifications. Use the two-pack configuration to ensure symmetric distribution, and confirm compatibility with existing mounting hardware. Proper alignment with the enclosure’s support frame minimizes install time and ensures reliable long-term performance.
