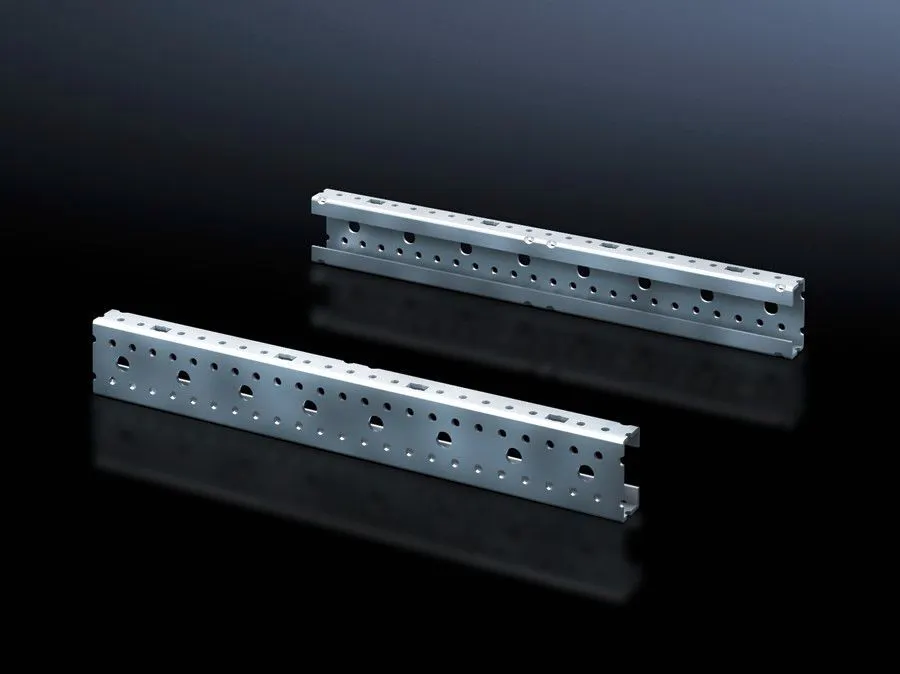

Rittal SV 9666.712 SV Mounting angle - 12U, TS/SE
Part Number: 9666712
Manufacturer
Rittal
Part number
9666712
Alt Part Number
SV 9666.712
Quick Summary
Rittal SV 9666.712 SV Mounting angle enables vertical sub-division of the support frame in TS/SE enclosures. This accessory helps keep cabinet interiors organized, improving airflow and service access in crowded control panels. Engineers often struggle with cable routing, component density, and future upgrades; the 12U ISV angle provides a consistent subdivision framework to simplify changes without rework. While product data commonly references CE conformity and IP protection, always verify these certifications with the supplier for your specific region. By using zinc-plated sheet steel, the part withstands shopfloor conditions and supports durable installations. Overall, it delivers faster assembly, scalable infrastructure, and lower lifecycle costs in industrial environments.
Product Information
Extended Description
9666712 Rittal: SV Mounting angle (ISV), 12 U (1850 mm), for TS, SE
Article number
SV 9666.712
Product description
For vertical sub-division of the support frame in the enclosure.
Material
Sheet steel
Surface finish
Zinc-plated
Dimensions
Height: 1,800 mm
Size
Height units (U) @ 150 mm: 12
Packs of
2 pc(s).
Weight/pack
4.306 kg
PCF per pack (cradle-to-gate)
16.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
39269097
EAN
4028177676619
ETIM 7.0
EC001900
ECLASS 8.0
27400613
Product description
SV Mounting angle (ISV), 12 U (1850 mm), for TS, SE
Feature: SV mounting angle enables vertical subdivision of the TS/SE enclosure support frame to create 12U sections. Business Impact: This modular approach reduces misalignment, speeds future reconfiguration, and improves internal organization. Application: Ideal for VX/TS/SE systems where cable routing and bay density are critical. Paragraph two covers material and finish: Sheet steel with zinc plating provides corrosion resistance, extending cabinet life in varying factory environments, while maintaining a slim profile for tight spaces. Paragraph three highlights dimensions and packaging: 12U height (1,800 mm) and packs of two at 4.306 kg per pack streamline procurement and shipping, supporting bulk projects without sacrificing handling. Paragraph four focuses on sustainability: PCF per pack is 16.4 kg CO2 eq (Cat B), enabling teams to document environmental impact and meet internal sustainability goals. Paragraph five emphasizes compatibility: TS/SE compatibility and straightforward installation reduce commissioning time, while clear documentation supports rapid field deployment. Paragraph six addresses common concerns: If different heights are required, consider alternative ISV configurations to tailor bay spacing without rework.
Get a Quick Quote for a Rittal 9666712
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666712?
Enquire Now
FAQs
Yes. The SV Mounting angle is specified for TS and SE enclosure series and is designed to sub-divide the vertical support frame. For best results, align the 12U mounting points with the existing ISV rails and verify that your enclosure height matches the 1,800 mm specification to maintain proper clearances.
Key specs include a 12U height (1,800 mm), sheet steel construction with zinc plating, packs of 2 units, and a weight of 4.306 kg per pack. The product carries the GTIN 4028177676619 and an article number SV 9666.712, facilitating accurate BOMs and procurement.
The product data specifies TS and SE compatibility for vertical subdivision of the support frame. While VX is a related enclosure family, confirm with Rittal or your supplier whether the ISV mounting angle integrates with your specific VX configuration to avoid fitment issues.
The packing and cradle-to-gate footprint indicate a PCF of 16.4 kg CO2 eq per pack (Category B). This supports environmental reporting and helps compare lifecycle impacts across enclosure accessories; use this data in supplier assessments and internal sustainability programs.
Plan for pre-assembly of ISV segments in a controlled area, verify height and U-count before mounting, and use the provided two-pack configuration to standardize bays across multiple enclosures. Ensure proper corrosion protection (zinc plating) and verify compatibility with existing internal rails to minimize rework.
