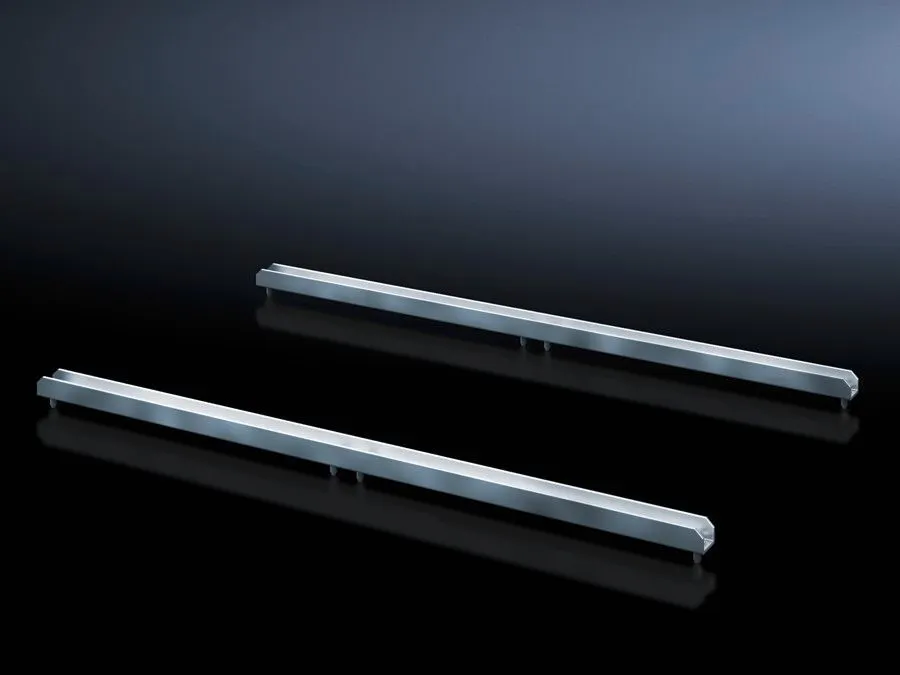

Rittal SV 9666.723 Cross Rail - 3 WU 750 mm, Zinc-Plated
Part Number: 9666723
Manufacturer
Rittal
Part number
9666723
Alt Part Number
SV 9666.723
Quick Summary
Rittal SV 9666.723 Cross Rail is designed for horizontal subdivision of the VX/TS enclosure's support frame. This modular rail solution speeds mounting and simplifies cable routing in tight VX/TS enclosures, reducing rework and downtime. Note: The data lists ETIM EC002525 and ECLASS 27400613 classifications; SIL, CE, and IP ratings are not specified—please consult the datasheet for exact certifications. Used with VX/TS frames, this cross rail delivers flexible installation options, enabling faster projects and smoother future expansions.
Product Information
Extended Description
9666723 Rittal: SV Cross rail (ISV), 3 WU (750 mm), for TS, SE
Article number
SV 9666.723
Product description
For horizontal sub-division of the support frame in the enclosure.
Material
Sheet steel
Surface finish
Zinc-plated
Dimensions
Width: 750 mm
Size
Width units (WU) @ 250 mm: 3
Packs of
2 pc(s).
Weight/pack
1.01 kg
PCF per pack (cradle-to-gate)
3.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
39269097
EAN
4028177676725
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Cross rail (ISV), 3 WU (750 mm), for TS, SE
Feature: 3 WU width (750 mm) aligns with standard VX/TS frame spacing → Business Impact: Maximizes usable interior volume while maintaining grid-aligned mounting points → Application: Ideal for subdividing enclosures in medium-sized control panels. Feature: Sheet steel construction with zinc plating → Business Impact: Provides robust mechanical support with corrosion resistance for harsh environments → Application: Suitable for factory floors and utility rooms where moisture and dust are present. Feature: Pack of 2 rails, each 1.01 kg → Business Impact: Lightweight, easy handling reduces freight costs and simplifies on-site handling → Application: Quick redeployment during panel upgrades or expansions. Feature: PCF 3.8 kg CO2 eq per pack (Cat B) → Business Impact: Lower cradle-to-gate environmental footprint supports sustainability reporting → Application: Green manufacturing initiatives and supplier audits. Feature: Compatibility with TS, SE variants and VX/TS frames → Business Impact: Streamlined installation with proven interoperability reduces engineering time → Application: Fast-standardized uprighting and reconfiguration in mixed enclosure fleets. Feature: Clear labeling and standard dimensions (750 mm width) → Business Impact: Predictable fitment reduces commissioning risk and inspection effort → Application: Reliable deployment across multiple SKUs and projects.
Get a Quick Quote for a Rittal 9666723
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666723?
Enquire Now
FAQs
The SV 9666.723 Cross Rail functions as a horizontal subdivision rail inside VX/TS enclosures, creating additional mounting planes and enabling modular placement of components. It supports efficient space planning, easier cable routing, and clean separation of switched and field devices within a compact frame. The 3 WU width aligns with standard VX/TS grid systems, helping engineers achieve consistent enclosure layouts across projects.
Yes. The cross rail is designed for TS and SE variants and is compatible with VX/TS frames. This shared compatibility simplifies procurement and reduces engineering time when deploying mixed enclosure types on a single project or across a facility. Always verify specific model fit with the latest Rittal datasheet before ordering.
The rail is manufactured from sheet steel and finished with zinc plating, delivering robust mechanical strength and corrosion resistance suitable for demanding industrial environments. This combination supports long service life and minimizes maintenance, aligning with standard enclosure infrastructure requirements.
Each pack contains 2 rails, with a total weight of 2.02 kg (1.01 kg per rail). This packaging arrangement facilitates efficient handling on site and straightforward inventory management during enclosure assemblies or upgrades.
Rittal provides multiple downloads for SV 9666.723, including General Technical Information in several languages and a PDF overview. Access documents such as CS, DA, DE, EN, ES, FI, FR, HU, IT, NL, NO, PL, RU, SV, TR, and ZH from the product page to ensure you have the latest installation guidance and specifications for compliant deployment.
