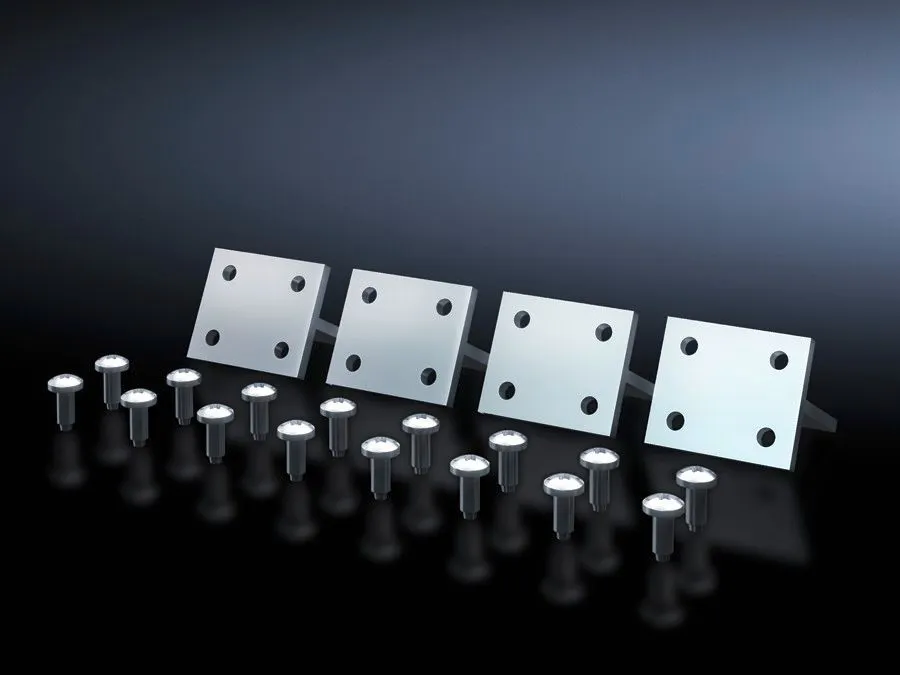

Rittal 9666740 SV Equipment support connector - Aluminium
Part Number: 9666740
Manufacturer
Rittal
Part number
9666740
Alt Part Number
SV 9666.740
Quick Summary
Rittal SV Equipment support connector is designed to stabilize mounting angles in TS and SE enclosure frames. Users often face frame wobble and misalignment that complicates panel fitting and panel-door alignment, slowing installation and increasing service risk. SIL, CE, and IP ratings are not listed for this accessory; instead it adheres to ETIM EC002525 and ECLASS 27400613 to support standardized procurement. This aluminium mounting solution ships with assembly parts and is compatible with Model No. 9666.702, delivering reliable rigidity. By improving frame stability and simplifying assembly, it helps projects meet schedules and reduces maintenance costs, while enabling consistent performance across TS/SE configurations.
Product Information
Extended Description
9666740 Rittal: SV Equipment support connector (ISV), for mounting angle, for TS, SE
Article number
SV 9666.740
Product description
For connecting 2 mounting angles. Increases the stability of the frame structure.
Material
T-section: Aluminium
Supply includes
Assembly parts
To fit Model No.
9666.702
Packs of
4 pc(s).
Weight/pack
0.136 kg
Customs tariff number
39269097
EAN
4028177676664
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Equipment support connector (ISV), for mounting angle, for TS, SE
Feature: Aluminium T-section construction and ISV mounting connector. Business impact: Increases frame rigidity and minimizes deflection under panel loads. Application: Install between two TS/SE mounting angles to stabilize the frame in enclosure projects. Feature: Supplied with assembly parts. Business impact: Accelerates installation and reduces hardware search time on-site. Application: Ideal for busy assembly lines and modular TS/SE configurations, ensuring consistent assembly with Model No. 9666.702. Feature: Pack of four with weight 0.136 kg per pack. Business impact: Streamlines logistics and reduces handling costs in large-scale builds. Application: Use across multi-enclosure projects to maintain uniform stock and quick replenishment. Feature: Material: Aluminium; corrosion resistance. Business impact: Enhances long-term durability in industrial environments. Application: Suitable for plant floors, data centers, and climate-controlled enclosures. Feature: Standardized compatibility with ETIM EC002525 and ECLASS 27400613; To fit Model No. 9666.702. Business impact: Procurement standardization and reduced SKU proliferation. Application: Ideal for standardized purchasing across TS/SE configurations.
Get a Quick Quote for a Rittal 9666740
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666740?
Enquire Now
FAQs
To install the SV 9666.740, position the connector between two TS/SE mounting angles, align the aluminium T-section, and secure with the included assembly parts. Ensure all fasteners are tightened to the manufacturer’s torque specification to avoid frame play. The process is straightforward, reducing setup time on busy lines and improving overall enclosure rigidity.
Yes, SV 9666.740 is designed to fit the TS/SE frame series and is specified to match Model No. 9666.702. When used together, the connector increases framework stability by tying two mounting angles, improving rigidity and reducing misalignment during panel mounting and door operation.
Expect reduced frame wobble and improved door/ Panel alignment due to the enhanced rigidity at mounting-angle junctions. The aluminium T-section delivers a stable, lightweight connection, enabling faster installation, fewer reworks, and more consistent performance across TS/SE configurations in demanding industrial environments.
The SV 9666.740 does not list SIL, CE, or IP certifications in the provided data. It does conform to standardized procurement codes ETIM EC002525 and ECLASS 27400613, which supports cross-system compatibility and cataloging in formal procurement workflows.
Packaging includes four connectors, with a lightweight 0.136 kg per pack, simplifying logistics for multi-enclosure projects. Faster installation, fewer alignment issues, and reduced rework translate to lower labor costs and shorter project timelines, delivering tangible ROI for TS/SE frame installations.
