Rittal 9666753 Enclosures - SV Mounting angle 3U
Part Number: 9666753
Manufacturer
Rittal
Part number
9666753
Alt Part Number
SV 9666.753
Quick Summary
Rittal 9666753 SV Mounting angle enables vertical subdivision of AX/AE enclosures for modular control cabinets. When space is tight and layouts must adapt quickly, crowded wiring and misalignment slow projects and complicate maintenance. Explicit SIL, CE, or IP ratings are not listed in the data; instead the part uses sheet steel with a zinc-plated finish and aligns with ETIM EC002525 and ECLASS 27400613 for procurement and cross-reference. This accessory supports repeatable assemblies, scalable AX/AE configurations, and improved cable management, delivering faster installation and easier future expansions. It also reinforces AX/AE enclosure mounting compatibility and 3U height interfaces, helping engineers optimize space, workflow, and serviceability across plant-level panels.
Product Information
Extended Description

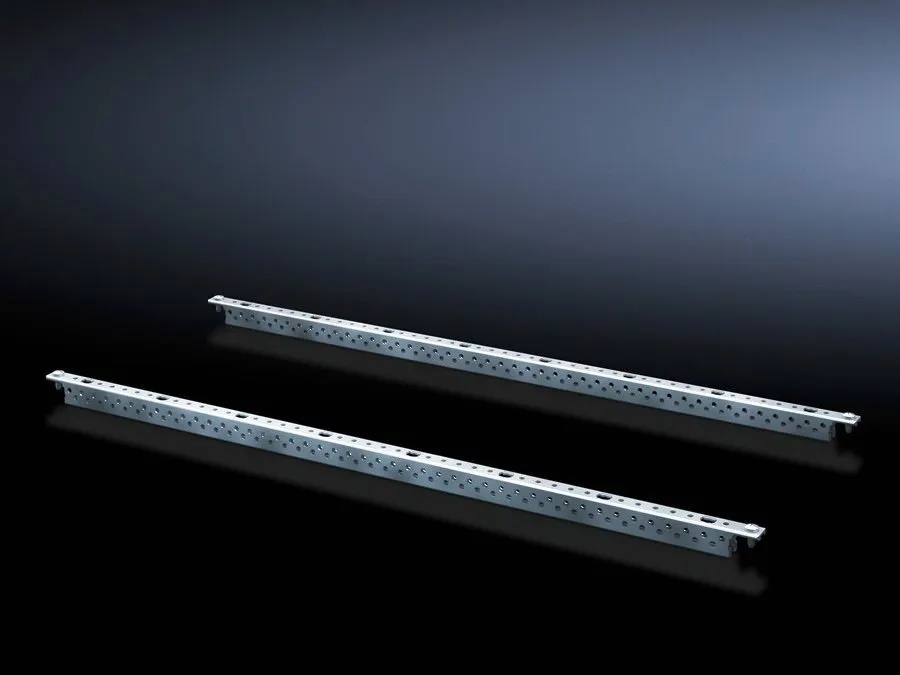

9666753 Rittal: SV Mounting angle (ISV), 3 U (450 mm), for AE
Article number
SV 9666.753
Product description
For vertical sub-division of the support frame in the enclosure.
Material
Sheet steel
Surface finish
Zinc-plated
Dimensions
Height:Â 450 mm
Size
Height units (U) @ 150 mm:Â 3
Packs of
2 pc(s).
Weight/pack
0.614 kg
PCF per pack (cradle-to-gate)
2.3Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
39269097
EAN
4028177679924
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Mounting angle (ISV), 3 U (450 mm), for AE
Feature: Sheet steel construction with a zinc-plated surface provides robust durability and improved corrosion resistance in typical factory environments. Business impact: Extends service life, reduces maintenance costs, and lowers replacement frequency. Application: Ideal for AX/AE enclosures where mounting hardware must withstand frequent access and handling. Feature: 3 U (450 mm) height defines a fixed vertical subdivision, preserving mounting planes for orderly layouts. Business impact: Enables repeatable, scalable configurations that speed assembly and future expansions. Application: Supports clean, modular interiors in AX/AE control panels. Feature: Pack of 2 with a weight of 0.614 kg per pack and a PCF of 2.3 kg CO2 eq (Cat B) supports sustainable procurement and efficient stocking. Application: Facilitates predictable logistics and lifecycle planning. Feature: Clear identifiers including EAN 4028177679924, ETIM 9 EC002525, and ECLASS 8.0 27400613 improve cataloging and cross-reference. Business impact: Reduces ordering errors and accelerates supplier communications. Application: Integrates smoothly with Rittal accessory ecosystems. Feature: Customs tariff number 39269097 aids international ordering and compliance checks. Business impact: Streamlines customs documentation and import workflows. Application: Suitable for global procurement of AX/AE components. Feature: Compatibility with AX/AE mounting POS and ISV concept supports vertical subdivision with standard interfaces. Application: Aligns with standard AX/AE frame designs for consistent installation.
Get a Quick Quote for a Rittal 9666753
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666753?
Enquire Now
FAQs
SV 9666.753 is designed to fit the AX/AE enclosure system as a vertical subdivision accessory. It comes as a pack of two mounting angles, each 450 mm tall and 3 U high, allowing precise alignment with standard AX/AE rails. To install, align with the enclosure’s existing mounting framework, secure with compatible fasteners, and verify that the mounting planes remain level after tightening.
Key specifications include material sheet steel, zinc-plated surface, height 450 mm, size 3 U, packs of 2, weight per pack 0.614 kg, and PCF 2.3 kg CO2 eq (Cat B). It also carries EAN 4028177679924, customs tariff 39269097, ETIM 9 EC002525, and ECLASS 8.0 27400613, which aids procurement and system integration.
Yes, its 3 U height supports compact stacking within AX/AE enclosures, improving density without compromising access. The zinc-plated steel provides robust support for mounting devices, while the 2-pack configuration simplifies stocking. However, always ensure weight distribution stays within the enclosure’s load limits and verify alignment with adjacent mounting hardware to maintain serviceability.
Certification data such as CE or IP is not explicitly listed for this mounting angle. The data does show ETIM EC002525 and ECLASS 27400613 classifications, aiding cataloging and procurement. For compliance-driven projects, confirm the specific regulatory requirements with Rittal or your distributor and reference the product’s standards to ensure alignment with your plant’s policies.
Using SV 9666.753 can reduce installation time by providing a repeatable, modular mounting interface, lowering labor costs during panel assembly and future revisions. The 2-pack design eases stocking and reduces part variety, while 0.614 kg per pack and the 2.3 kg CO2 eq PCF support greener procurement. Over time, maintenance and expansions become faster and more predictable.
